SAP ABAP Table SQLMHCK (SQL Monitor: KEY)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DWB-TOO-RTA (Application Component) Runtime Analysis
     ⤷ SQLM_CORE (Package) SQL Monitor Core

Basic Data

Table Category	TRANSP	Transparent table

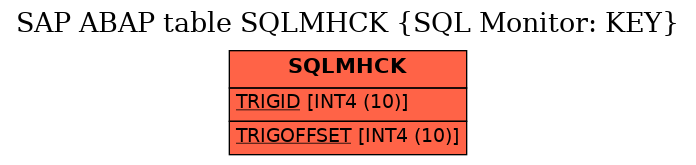

Transparent table	SQLMHCK	Table Relationship Diagram
Short Description	SQL Monitor: KEY

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TRIGID	☑	INT4	INT4	INT4	10	0	Natural number
2	TRIGOFFSET	☑	INT4	INT4	INT4	10	0	Natural number
3	.INCLUDE	☐				0	0	SQL Monitor: Key (Source)
4	PROGNAME	☐	PROGNAME	PROGNAME	CHAR	40	0	ABAP Program Name
5	PROGKIND	☐	SQLMPROGKIND	SQLMPROGKIND	CHAR	1	0	SQL Monitor: Program Kind
6	PROCTYPE	☐	SQLMPROCTYPE		CHAR	4	0	SQL Monitor: Processing Block Type
7	PROCNAME	☐	SQLMPROCNAME		CHAR	93	0	SQL Monitor: Processing Block Name
8	PROCLINE	☐	SQLMPROCLINE		INT4	10	0	SQL Monitor: Line Number in Processing Block
9	HASHCODE	☐	SQLMHASHCODE	SQLMCRC64	RAW	8	0	SQL Monitor: Source Hash Code
10	INCLUDE	☐	PROGNAME	PROGNAME	CHAR	40	0	ABAP Program Name
11	LINE	☐	INT4	INT4	INT4	10	0	Natural number
12	FRAGMENT	☐	SQLMFRAGMENT		CHAR	255	0	SQL Monitor: Source Code Fragment
13	PROGDATE	☐	SQLMPROGDATE		DATS	8	0	SQL Monitor: Program Date
14	PROGTIME	☐	SQLMPROGTIME		TIMS	6	0	SQL Monitor: Program Time

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
