SAP ABAP Table SQLMD (SQL Monitor: Data)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DWB-TOO-RTA (Application Component) Runtime Analysis
     ⤷ SQLM_CORE (Package) SQL Monitor Core

Basic Data

Table Category	TRANSP	Transparent table

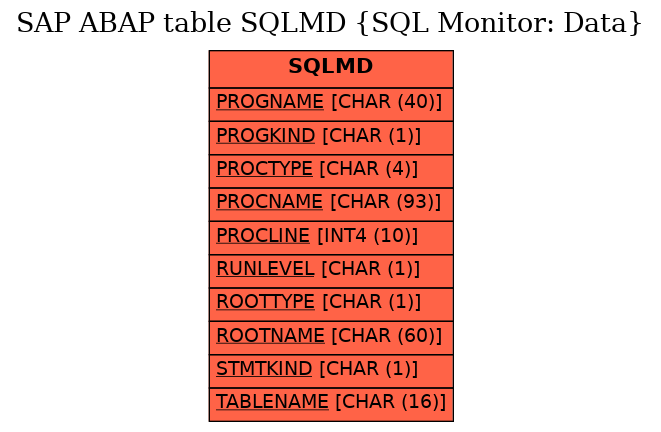

Transparent table	SQLMD	Table Relationship Diagram
Short Description	SQL Monitor: Data

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	SQL Monitor: Key (Source)
2	PROGNAME	☑	PROGNAME	PROGNAME	CHAR	40	0	ABAP Program Name
3	PROGKIND	☑	SQLMPROGKIND	SQLMPROGKIND	CHAR	1	0	SQL Monitor: Program Kind
4	PROCTYPE	☑	SQLMPROCTYPE		CHAR	4	0	SQL Monitor: Processing Block Type
5	PROCNAME	☑	SQLMPROCNAME		CHAR	93	0	SQL Monitor: Processing Block Name
6	PROCLINE	☑	SQLMPROCLINE		INT4	10	0	SQL Monitor: Line Number in Processing Block
7	.INCLUDE	☑				0	0	SQL Monitor: Subkey (Internal)
8	RUNLEVEL	☑	SQLMRUNLEVEL	SQLMRUNLEVEL	CHAR	1	0	SQL Monitor: Run Mode
9	ROOTTYPE	☑	SQLMROOTTYPE	SQLMROOTTYPE	CHAR	1	0	SQL Monitor: Request Type
10	ROOTNAME	☑	SQLMROOTNAME		CHAR	60	0	SQL Monitor: Request Entry Point (Transaction, etc.)
11	STMTKIND	☑	SQLMSTMTKIND	SQLMSTMTKIND	CHAR	1	0	SQL Monitor: SQL Operation
12	TABLENAME	☑	SQLMTABLENAME	DBOBJ_NAME	CHAR	16	0	SQL Monitor: Table Name
13	.INCLUDE	☐				0	0	SQL Monitor: Payload
14	XCNT	☐	SQLMEXECNT		INT4	10	0	SQL Monitor: Total Number of Executions
15	.INCLUDE	☐				0	0	SQL Monitor: Rollarea
16	RCNT	☐	SQLMROLLAREACNT		INT4	10	0	SQL Monitor: Internal Sessions Affected
17	XCNTRCNT	☐	SQLMEXECNTROLLAREACNT	SQLMDECIMAL3	DEC	31	3	SQL Monitor: Executions per Internal Sessions
18	.INCLUDE	☐				0	0	SQL Monitor: Runtime
19	RTMIN	☐	SQLMRUNTIMEMIN	SQLMRUNTIME	DEC	31	3	SQL Monitor: Minimum Value of SQL Execution Time
20	RTMAX	☐	SQLMRUNTIMEMAX	SQLMRUNTIME	DEC	31	3	SQL Monitor: Maximum Value of Database Execution Time
21	RTCNT	☐	SQLMRUNTIMECNT		INT4	10	0	SQL Monitor: Count
22	RTSUM	☐	SQLMRUNTIMESUM	SQLMRUNTIME	DEC	31	3	SQL Monitor: Summarized Database Execution Time [ms]
23	RTSQS	☐	SQLMRUNTIMESQS	SQLMDECIMAL6	DEC	31	6	SQL Monitor: Runtime Sum of Squares
24	RTAVG	☐	SQLMRUNTIMEAVG	SQLMRUNTIME	DEC	31	3	SQL Monitor: Mean Value of DB Execution Time
25	RTDEV	☐	SQLMRUNTIMEDEV	SQLMRUNTIME	DEC	31	3	SQL Monitor: Standard Deviation of Database Execution Time
26	.INCLUDE	☐				0	0	SQL Monitor: DB Count
27	DBMIN	☐	SQLMDBCOUNTMIN		INT4	10	0	SQL Monitor: Minimum Value of Processed Records
28	DBMAX	☐	SQLMDBCOUNTMAX		INT4	10	0	SQL Monitor: Maximum Value of Processed Records
29	DBCNT	☐	SQLMDBCOUNTCNT		INT4	10	0	SQL Monitor: DB Count Count
30	DBSUM	☐	SQLMDBCOUNTSUM	SQLMINTEGER	DEC	31	0	SQL Monitor: Total Processed Records
31	DBSQS	☐	SQLMDBCOUNTSQS	SQLMINTEGER	DEC	31	0	SQL Monitor: DB Count Sum of Squares
32	DBAVG	☐	SQLMDBCOUNTAVG	SQLMDECIMAL3	DEC	31	3	SQL Monitor: Mean Value of Processed Records
33	DBDEV	☐	SQLMDBCOUNTDEV	SQLMDECIMAL3	DEC	31	3	SQL Monitor: Standard Deviation of Processed Records
34	DDATE	☐	RTMDDATE	SYDATS	DATS	8	0	Date for Runtime Monitor DATA entry
35	DTIME	☐	D_TIME	SYTIME	TIMS	6	0	Time for Runtime Monitor data entry
36	RTMCNT	☐	SQLMRTMCNT		INT4	10	0	SQL Monitor: RTM Count

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
