SAP ABAP Table SMWPHIER (CRM Middleware: View definitions for Monitoring Cockpit)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-MON (Application Component) Monitoring
     ⤷ SMW_PORTAL (Package) CRM Middleware Portal

Basic Data

Table Category	TRANSP	Transparent table

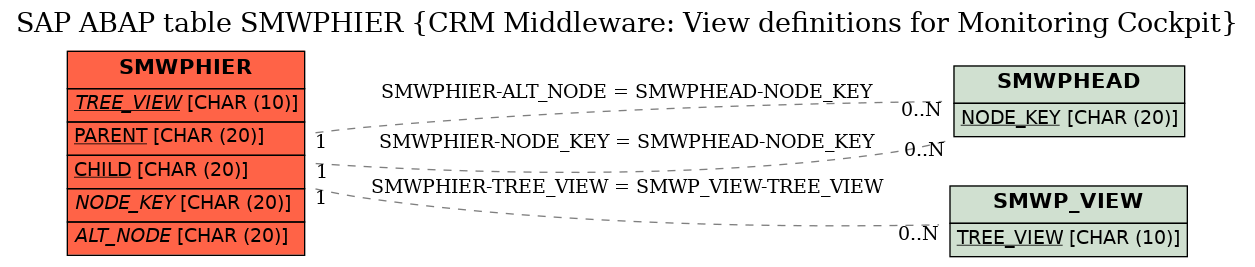

Transparent table	SMWPHIER	Table Relationship Diagram
Short Description	CRM Middleware: View definitions for Monitoring Cockpit

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	TREE_VIEW	☑	SMWPVIEW	SMWPVIEW	CHAR	10	0	Tree view for CRM Middleware Monitoring Cockpit	SMWP_VIEW
2	PARENT	☑	SMWPKEY_PAR	SMWPKEY_HIER	CHAR	20	0	CRM MW Monitoring Cockpit: Hierarchy parent key
3	CHILD	☑	SMWPKEY_CHILD	SMWPKEY_HIER	CHAR	20	0	CRM MW Monitoring Cockpit: Hierarchy child key
4	SORTKEY	☐	SMWPSORTSEQ	NUMC03	NUMC	3	0	CRM MW Monitoring Cockpit: Sort sequence of node
5	NODE_KEY	☐	SMWPKEY	SMWPKEY	CHAR	20	0	CRM MW Monitoring Cockpit: Node key	SMWPHEAD
6	ALT_NODE	☐	SMWPALT_DISP_NODE	SMWPKEY	CHAR	20	0	CRM Middleware Monitoring: alternative display for node	SMWPHEAD
7	INACTIVE	☐	SMWPINACTIVE	XFELD	CHAR	1	0	CRM Middleware Monitoring: inactive flag

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMWPHIER	ALT_NODE	SMWPHEAD	NODE_KEY	REF	1	CN
2	SMWPHIER	NODE_KEY	SMWPHEAD	NODE_KEY	KEY	1	CN
3	SMWPHIER	TREE_VIEW	SMWP_VIEW	TREE_VIEW	KEY	1	CN

History

Last changed by/on	SAP	20030110
SAP Release Created in	400
