SAP ABAP Table SMWMSTEPS (Contains bdoc statistic records)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-MON (Application Component) Monitoring
     ⤷ SMWM (Package) Middleware Monitoring

Basic Data

Table Category	TRANSP	Transparent table

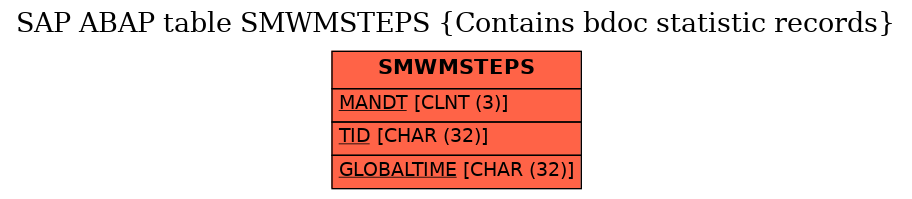

Transparent table	SMWMSTEPS	Table Relationship Diagram
Short Description	Contains bdoc statistic records

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	TID	☑	SMOG_TID	SMOG_GUID	CHAR	32	0	BDoc Message ID
3	GLOBALTIME	☑	SMWMOSDATI	CHAR32	CHAR	32	0	OS datetime(local datetime in micro seconds)
4	TRID	☐	SMOG_TRID	SMOG_TRID	CHAR	32	0	BDoc type ID (base class ID)
5	SITEID	☐	SMOG_SITE	SMO_SITEID	CHAR	32	0	Site ID (GUID) to identify other systems/ devices	*
6	QUEUEID	☐	SMOG_QNAME	SMOG_CHR32	CHAR	32	0	Queue name to be used for message
7	HOST	☐	SYHOST	HOST_ID	CHAR	32	0	Application Server
8	SND_DATE	☐	SMOG_SDDAT	DATUM	DATS	8	0	Send date
9	SND_TIME	☐	SMOG_SDTIM	TIME	TIMS	6	0	Send time
10	INQUEUE	☐	SMWMQUEUET		INT4	10	0	Time in queue
11	INBOUND	☐	SMWMINBDT		INT4	10	0	Time in inbound adapter
12	FLOW	☐	SMWMFLOWT		INT4	10	0	Time in flow processing
13	TOTAL	☐	SMWMTOTALT		INT4	10	0	Total time spent
14	DELETED	☐	SMO8_DEL	SMO8_DEL	CHAR	1	0	Deletion flag

History

Last changed by/on	SAP	20141013
SAP Release Created in	12A
