SAP ABAP Table SMW3_BDOC2 (BDoc Message Store: Message Body (extension part))
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷
CRM-MW-SRV (Application Component) Flow / Services
⤷
SMW3 (Package) CRM Flow II
BBPCRM (Software Component) BBPCRM⤷
CRM-MW-SRV (Application Component) Flow / Services⤷
SMW3 (Package) CRM Flow II
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | SMW3_BDOC2 |

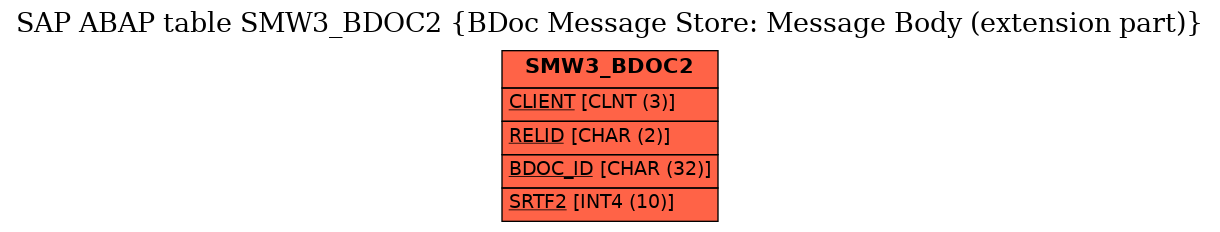

Table Relationship Diagram
|
| Short Description | BDoc Message Store: Message Body (extension part) |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | A | Application Table (Master- and Transaction Data) |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  CLIENT |
MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
| 2 | RELID |
INDX_RELID | SYCHAR02 | CHAR | 2 | 0 | Region in IMPORT/EXPORT Data Table | ||
| 3 | BDOC_ID |
SMOG_TID | SMOG_GUID | CHAR | 32 | 0 | BDoc Message ID | ||
| 4 | SRTF2 |
INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
| 5 | CLUSTR |
INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
| 6 | CLUSTD |
SMW3DTCLST | SMW3DMCLST | LRAW | 32000 | 0 | Data field for IMPORT/EXPORT database tables |
History
| Last changed by/on | SAP | 20030110 |
| SAP Release Created in | 30A |
