SAP ABAP Table SMPARAM (Schedule Manager Monitor: Processing Parameters)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-SCM (Application Component) Schedule Manager
     ⤷ KPEP (Package) Schedule Manager

Basic Data

Table Category	TRANSP	Transparent table

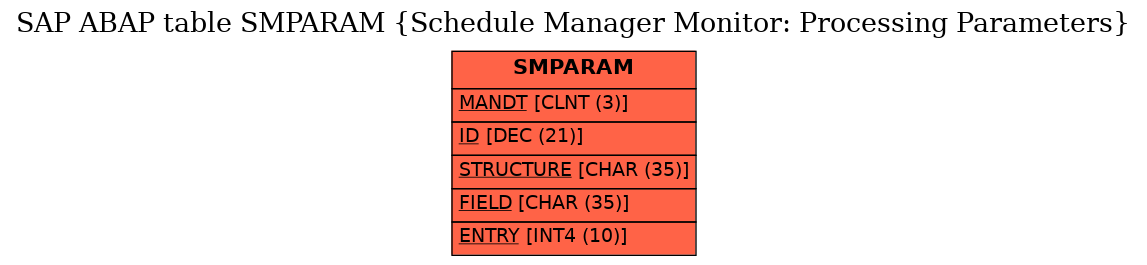

Transparent table	SMPARAM	Table Relationship Diagram
Short Description	Schedule Manager Monitor: Processing Parameters

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key Fields in the Table for the Schedule Manager Monitor
2	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	ID	☑	SCHEDMAN_ID	TZNTSTMPL	DEC	21	7	ID of Processed Object (see SCHEDMAN_TYPE for Category)
4	.INCLUDE	☑				0	0	Selection Criteria of a Job: Key Fields
5	STRUCTURE	☑	SM_STRUC	CHAR35	CHAR	35	0	STRUCTURE of the Parameter/Select-Option Table
6	FIELD	☑	SM_FIELD	CHAR35	CHAR	35	0	Field of the Parameter/Select Option Table
7	ENTRY	☑	INT4	INT4	INT4	10	0	Natural number
8	.INCLUDE	☐				0	0	Additional (Pseudo) Key Fields for the Monitor
9	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
10	IDTYPE	☐	SCHEDMAN_TYPE	SCHEDMAN_TYPE	CHAR	1	0	Object Category of the ID
11	.INCLUDE	☐				0	0	Selection Criteria for a Job: Data Part
12	SIGN	☐	SM_SIGN	CHAR1	CHAR	1	0	SIGN of the Parameter/Select-Option Table
13	OPTIO	☐	SM_OPTIO	CHAR2	CHAR	2	0	OPTION of the Parameter/Select-Option Table
14	LOW	☐	SM_LOW	CHAR200	CHAR	200	0	Lowest/Highest Value of the Parameter/Select-Option Table
15	HIGH	☐	SM_HIGH	CHAR200	CHAR	200	0	Lowest/Highest Value of the Parameter/Select-Option Table
16	TYPE	☐	SM_TYPE	CHAR1	CHAR	1	0	TYPE of the Parameter/Select-Option Table

History

Last changed by/on	SAP	20000128
SAP Release Created in
