SAP ABAP Table SMOJDCPROC (Data Collector Extraction Processes)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-SRV (Application Component) Flow / Services
     ⤷ SMOJ (Package) Consolidated database service for mobile sales

Basic Data

Table Category	TRANSP	Transparent table

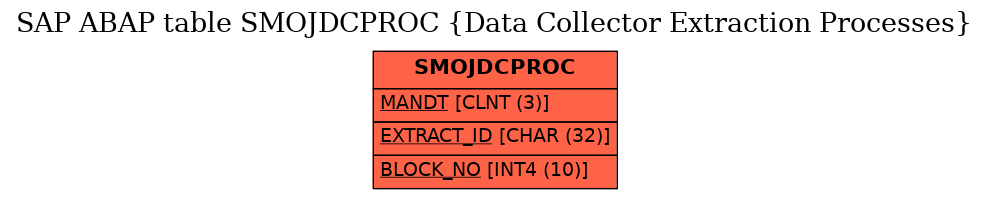

Transparent table	SMOJDCPROC	Table Relationship Diagram
Short Description	Data Collector Extraction Processes

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	EXTRACT_ID	☑	SMOJ_EXTRID	SMOJ_EXTRID	CHAR	32	0	Extraction Process ID
3	BLOCK_NO	☑	SMOJ_BLOCKNO	SMOJ_BLOCKNO	INT4	10	0	Block Number
4	SITE_ID	☐	SMO_SITEID	SMO_SITEID	CHAR	32	0	Site ID	*
5	EXTRACT_TASK	☐	SMOJ_DTXTASK	SMOJ_DTXTASK	CHAR	1	0	Data Extractor Task
6	EXEC_STATUS	☐	SMOJ_EXESTAT	SMOJ_EXESTAT	CHAR	1	0	Data Extractor Execution Status
7	.INCLUDE	☐				0	0	Operation Flags for Data Extractor
8	TASK	☐	SMOJ_TASK	SMOJ_TASK	CHAR	1	0	Operation: Insert, Update, Delete
9	CURR_STATE	☐	SMOJ_CURRSTATE	SMOJ_CURRSTATE	CHAR	1	0	Resend Request (Resend as Current State Message)
10	BLOCK_SIZE	☐	SMOJ_BLOCKSZ	SMOJ_BLOCKSZ	INT4	10	0	Extraction Blocksize (Actual Blocksize of Message)
11	NOT_FOUND	☐	SMOJ_CNT_NF		INT4	10	0	Count: Not Found
12	NOT_UPTODATE	☐	SMOJ_CNT_NU		INT4	10	0	Count: Not Up to Date
13	MSG_ID	☐	SMOG_TID	SMOG_GUID	CHAR	32	0	BDoc Message ID
14	TIMESTAMP	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
15	OBJ_TYPE	☐	SMO_OBJSHT	SMOG_GNAME	CHAR	26	0	Short Name for Replication Object

History

Last changed by/on	SAP	20070309
SAP Release Created in	100
