SAP ABAP Table SMOI_WS_RFCLOGON (Connection details for RFC-Logon to and from remote systems)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-CCM-MON (Application Component) Monitoring
     ⤷ SMOI_WS (Package) WS Interface to CCMS Agents as of Release 7.10

Basic Data

Table Category	TRANSP	Transparent table

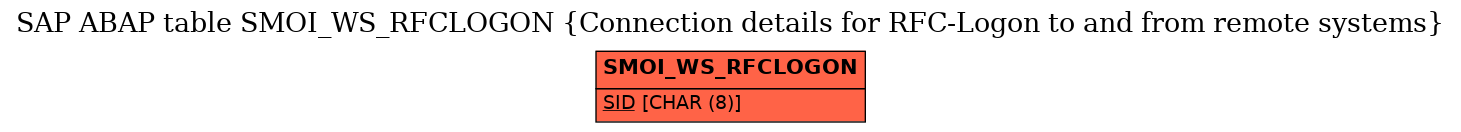

Transparent table	SMOI_WS_RFCLOGON	Table Relationship Diagram
Short Description	Connection details for RFC-Logon to and from remote systems

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SID	☑	SMOI_WS_SYSID		CHAR	8	0	System Identifier of an SAP NetWeaver Component
2	HOST	☐	SMOI_WS_HOSTNAME	TEXT255	CHAR	255	0	Host Name (or IP Address or FQDN)
3	LOGON_CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	INSTNO	☐	SMOI_WS_INSTNO	NUMC2	NUMC	2	0	Instance Number
5	RFCLB	☐	RFCLBFLAG	RFCLBFLAG	CHAR	1	0	RFC Using Load Balancing Procedure
6	RFCLOAD	☐	RFCLOAD_D	RFCEXEC	CHAR	64	0	Logon Group for Load Balancing Mode
7	RFCLANG	☐	RFCLANG	SYLANGU	LANG	1	0	Explicit language
8	ROUTE	☐	CCMS_SAPROUTE		CHAR	255	0	SAProuter String (for the CSMREG User)
9	RFCUSER	☐	RFCUSER	SYCHAR12	CHAR	12	0	Explicit user ID
10	RFCPWDID	☐	SYSUUID_C32	SYSUUID_C32	CHAR	32	0	16 Byte UUID in 32 Characters (Hexadecimal Encoded)

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
