SAP ABAP Table SMOFUPLMAPFUNCT (Description of the mapping modules: Load CRM to R/3 backend)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MW-ADP (Application Component) Middleware Adapter
     ⤷ SMOF (Package) R/3 Adapter Service

Basic Data

Table Category	TRANSP	Transparent table

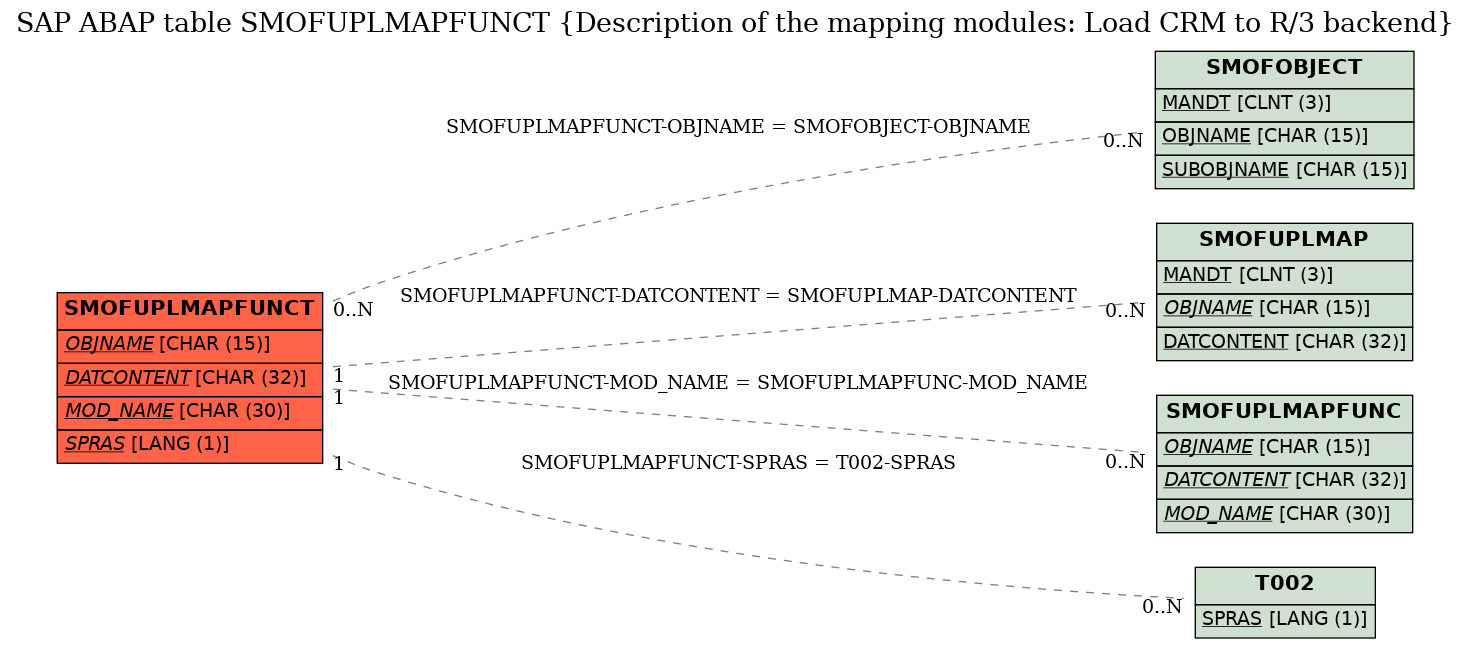

Transparent table	SMOFUPLMAPFUNCT	Table Relationship Diagram
Short Description	Description of the mapping modules: Load CRM to R/3 backend

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	N	Display/Maintenance Not Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJNAME	☑	SMO_OBJNAM	CHAR15	CHAR	15	0	Adapter Object name	SMOFOBJECT
2	DATCONTENT	☑	DATCONTENT	CRMCHAR32	CHAR	32	0	Indication of the data content of the BDoc message	SMOFUPLMAP
3	MOD_NAME	☑	FUNCNAME	FUNCNAME	CHAR	30	0	Function name	SMOFUPLMAPFUNC
4	SPRAS	☑	SPRAS	SPRAS	LANG	1	0	Language Key	T002
5	TEXT	☐	MAPTEXT	MAPTEXT	CHAR	70	0	Description of the mapping module: Load from CRM to back-end

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMOFUPLMAPFUNCT	DATCONTENT	SMOFUPLMAP	DATCONTENT	KEY	1	CN
2	SMOFUPLMAPFUNCT	MOD_NAME	SMOFUPLMAPFUNC	MOD_NAME	TEXT	1	CN
3	SMOFUPLMAPFUNCT	OBJNAME	SMOFOBJECT	OBJNAME
4	SMOFUPLMAPFUNCT	SPRAS	T002	SPRAS		1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
