SAP ABAP Table SMIMLORIPR (MIME Folder: Attributes of Incoming Relationships ofn LOIOs)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DWB-TOO (Application Component) Workbench Tools: Editors, Painters, Modelers
     ⤷ SMIMES (Package) MIME Repository - Model, Tools, and Integration

Basic Data

Table Category	TRANSP	Transparent table

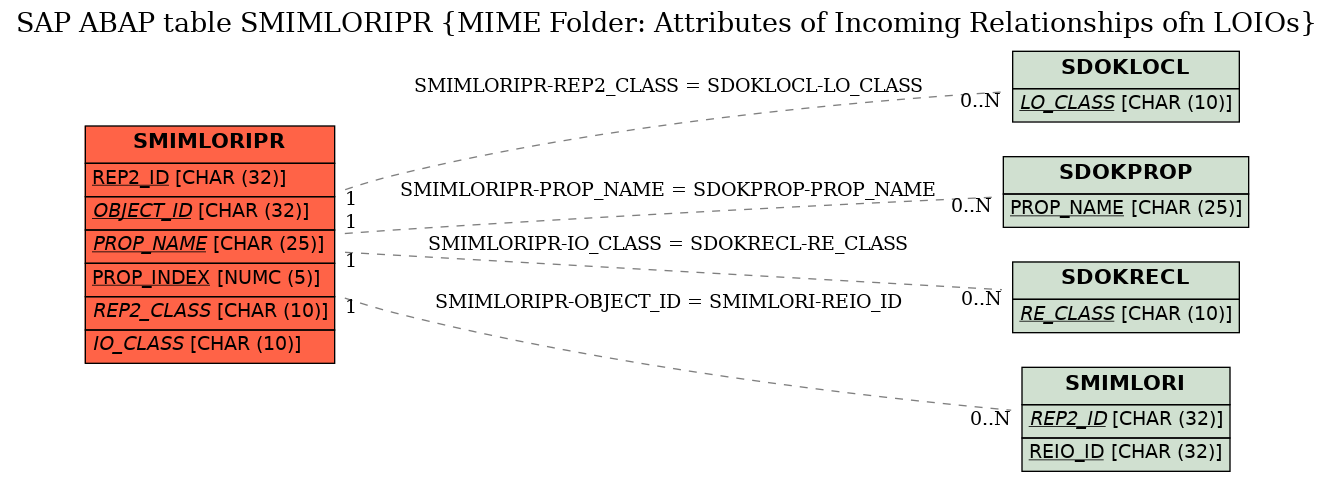

Transparent table	SMIMLORIPR	Table Relationship Diagram
Short Description	MIME Folder: Attributes of Incoming Relationships ofn LOIOs

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REP2_ID	☑	SDOK_LOID	SDOK_DOCID	CHAR	32	0	Logical document
2	OBJECT_ID	☑	SDOK_REID	SDOK_DOCID	CHAR	32	0	Relationship between logical and physical documents	SMIMLORI
3	PROP_NAME	☑	SDOK_PROPN	SDOK_PROPN	CHAR	25	0	Attribute of a document or a relationship	SDOKPROP
4	PROP_INDEX	☑	SDOK_INDX	SYNUM05	NUMC	5	0	KPro: General counter (uniqueness in DB)
5	REP2_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKLOCL
6	IO_CLASS	☐	SDOK_RECL	SDOK_CLASS	CHAR	10	0	Relationship class	SDOKRECL
7	PROP_VALUE	☐	SDOK_PROPV	SDOK_PROPV	CHAR	64	0	Attribute Value
8	PROP_SECI	☐	SDOK_PROPI	SDOK_PROPI	CHAR	12	0	Attribute feature (shortened)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SMIMLORIPR	IO_CLASS	SDOKRECL	RE_CLASS	REF	1	CN
2	SMIMLORIPR	OBJECT_ID	SMIMLORI	REIO_ID	KEY	1	CN
3	SMIMLORIPR	PROP_NAME	SDOKPROP	PROP_NAME	KEY	1	CN
4	SMIMLORIPR	REP2_CLASS	SDOKLOCL	LO_CLASS	REF	1	CN

History

Last changed by/on	SAP	20020827
SAP Release Created in	620
