SAP ABAP Table SLEI_BINDING_C (LEI binding - Client specific)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-BMT-BPM-LEI (Application Component) Local Event Infrastructure
     ⤷ SLEI_DEF (Package) LEI Design time and Customizing transactions

Basic Data

Table Category	TRANSP	Transparent table

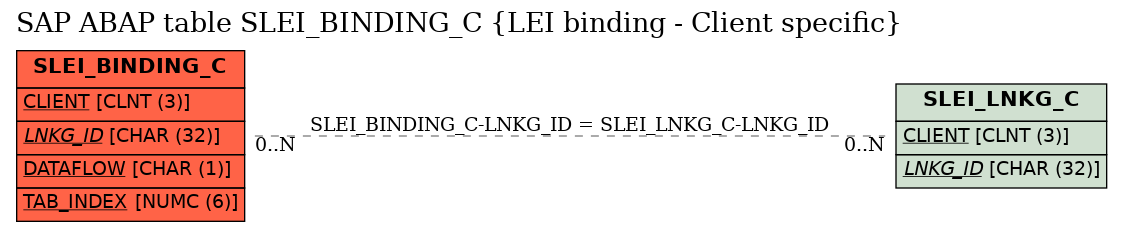

Transparent table	SLEI_BINDING_C	Table Relationship Diagram
Short Description	LEI binding - Client specific

Delivery and Maintenance

Pool/cluster
Delivery Class	G	Customizing table, protected against SAP Upd., only INS all.
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	LNKG_ID	☑	SLEI_LNKG_ID	SWFERECTYP	CHAR	32	0	LEI linkage ID	SLEI_LNKG_C
3	.INCLUDE	☑				0	0	Workflow Binding: Key Fields Binding
4	DATAFLOW	☑	SWA_DAFLOW	SWA_DAFLOW	CHAR	1	0	Workflow Binding: Binding Time
5	TAB_INDEX	☑	SWC_INDEX	SWC_INDEX	NUMC	6	0	Index for table element
6	.INCLUDE	☐				0	0	Dataflow Definition - Data Part (Persisting)
7	.INCLUDE	☐				0	0	Dataflow Definition: Core Part without Key
8	SOURCEEXPR	☐			STRG	0	0
9	SOURCETYPE	☐	SWFBNDETYP	SWFBNDETYP	CHAR	1	0	Instantiation Information for Expression in Binding
10	TARGETEXPR	☐			STRG	0	0
11	TARGETTYPE	☐	SWFBNDETYP	SWFBNDETYP	CHAR	1	0	Instantiation Information for Expression in Binding
12	.INCLUDE	☐				0	0	Workflow Binding Operation and Qualifier
13	OPERATION	☐	SWFBNDOP	SWFBNDOP	CHAR	3	0	Operation in Binding
14	OPCLASS	☐	SWFBNDOPCL	SWFBNDOPCL	CHAR	1	0	Binding: Operator at Row or Container Level
15	SKIPSNULL	☐	SWFBNDSKPN	XFELD	CHAR	1	0	No Action If Source Value Is Not Available
16	SKIPSINIT	☐	SWFBNDSKPI	XFELD	CHAR	1	0	No Action If Source Value Is Initial or Unavailable
17	NOVERWRITE	☐	SWFBNDNOVR	XFELD	CHAR	1	0	Do Not Overwrite Available Target Value
18	SKIPERROR	☐	SWFBNDNERR	XFELD	CHAR	1	0	Treat Errors as Warnings
19	MOVE_CORR	☐	SWFBNDMCOR	XFELD	CHAR	1	0	Assign Structures Using MOVE-CORRESPONDING
20	.INCLUDE	☐				0	0	POR to any Executable Unit: Method, FB
21	TRANSTYPE	☐	SWFEXTRANS	SWFEXTRANS	CHAR	6	0	Type of Transformation to Be Executed
22	TRANSBASE	☐	SWFEXECCMP		CHAR	64	0	Specification of a Component of an Executable Unit
23	TRANSEXT	☐	SWFEXECCMP		CHAR	64	0	Specification of a Component of an Executable Unit
24	TRANSCATID	☐	SIBFCATID	SIBFCATID	CHAR	2	0	Category of Objects in Persistent Object References
25	TRANSASYNC	☐	SWFBNDTASN	XFELD	CHAR	1	0	Indicator: Transformation Is Asynchronous
26	TRANSDIALG	☐	SWFBNDTDIA	XFELD	CHAR	1	0	Indicator: Transformation Leads to Dialog
27	TRANSLOG	☐	SWFBNDTLOG	XFELD	CHAR	1	0	Indicator: Log Transformation Execution
28	TRANSDEBUG	☐	SWFBNDTDBG	XFELD	CHAR	1	0	Indicator: Execute Transformation in DEBUG Mode

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SLEI_BINDING_C	LNKG_ID	SLEI_LNKG_C	LNKG_ID

History

Last changed by/on	SAP	20110908
SAP Release Created in	731
