SAP ABAP Table SKWG_DOCS (Table for Document Export)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-SRV-KPR-DMF (Application Component) Document Management Framework
⤷
SKWG (Package) GOS and BCS - Functions
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-SRV-KPR-DMF (Application Component) Document Management Framework⤷
SKWG (Package) GOS and BCS - Functions
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | SKWG_DOCS |

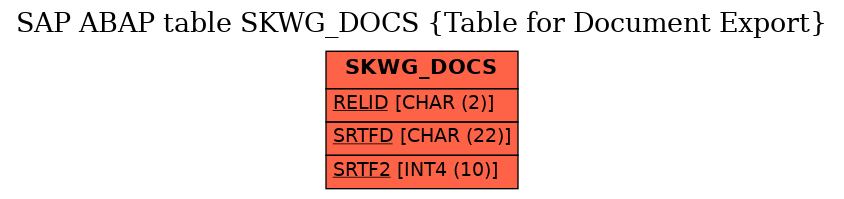

Table Relationship Diagram
|
| Short Description | Table for Document Export |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | L | Table for storing temporary data, delivered empty |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  RELID |
INDX_RELID | SYCHAR02 | CHAR | 2 | 0 | Region in IMPORT/EXPORT Data Table | ||
| 2 | SRTFD |
INDX_SRTFD | SYCHAR22 | CHAR | 22 | 0 | User-defined key in table INDX | ||
| 3 | SRTF2 |
INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
| 4 | CREA_USER |
SKWF_CRUSR | USERNAME | CHAR | 12 | 0 | Created By | ||
| 5 | CREA_TSTP |
SKWF_CRTST | SDOK_TSTMP | NUMC | 14 | 0 | Creation time (UTC) | ||
| 6 | CLUSTR |
INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
| 7 | CLUSTD |
INDX_CLUST | INDX_CLUST | LRAW | 2886 | 0 | Data field for IMPORT/EXPORT database tables |
History
| Last changed by/on | SAP | 20010205 |
| SAP Release Created in | 610 |
