SAP ABAP Table SIC_SERVICE_CMP (Definition of ICM Service Composition)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-EIM-IQM-IC (Application Component) Information Consistency
     ⤷ S_IC_FRAMEWORK_CONFIG (Package) Information Consolidation Framework - Konfiguration

Basic Data

Table Category	TRANSP	Transparent table

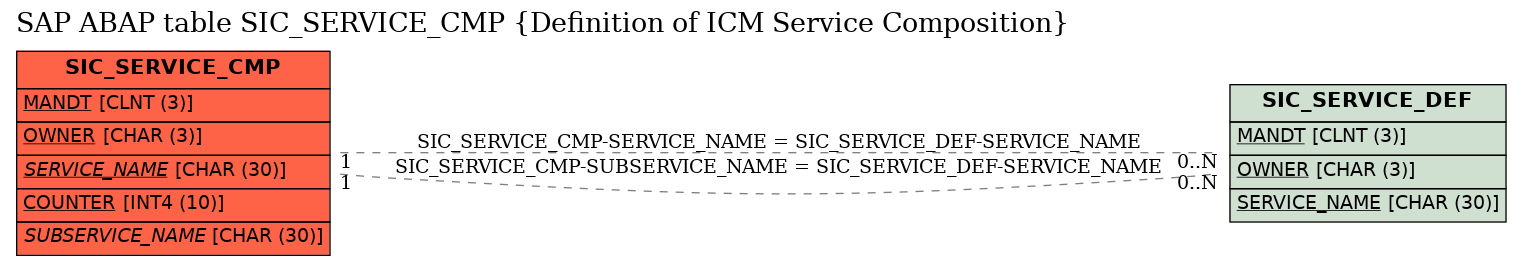

Transparent table	SIC_SERVICE_CMP	Table Relationship Diagram
Short Description	Definition of ICM Service Composition

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	OWNER	☑	SIC_OWNER	SIC_OWNER	CHAR	3	0	Owner of Table Entries (Namespace Separation)
3	SERVICE_NAME	☑	SIC_SERVICE_NAME	SIC_SERVICE_NAME	CHAR	30	0	Name of Service	SIC_SERVICE_DEF
4	COUNTER	☑	SIC_INT_COUNTER	SIC_INT_COUNTER	INT4	10	0	Counter
5	SUBSERVICE_NAME	☐	SIC_SERVICE_NAME	SIC_SERVICE_NAME	CHAR	30	0	Name of Service	SIC_SERVICE_DEF
6	TASK_LEVEL	☐	SIC_EXECUTE_PARALLEL	SIC_EXECUTE_PARALLEL	INT1	3	0	Flag: Execute Service as Parallel Task

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SIC_SERVICE_CMP	SERVICE_NAME	SIC_SERVICE_DEF	SERVICE_NAME		1	CN
2	SIC_SERVICE_CMP	SUBSERVICE_NAME	SIC_SERVICE_DEF	SERVICE_NAME		1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	710
