SAP ABAP Table SFSRFW_REQ_JOIN (Static Join Condition)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SRV-FSI (Application Component) Fast Search Infrastructure
     ⤷ SFSRFW_REPOSITORY (Package) Replication Framework Repository

Basic Data

Table Category	TRANSP	Transparent table

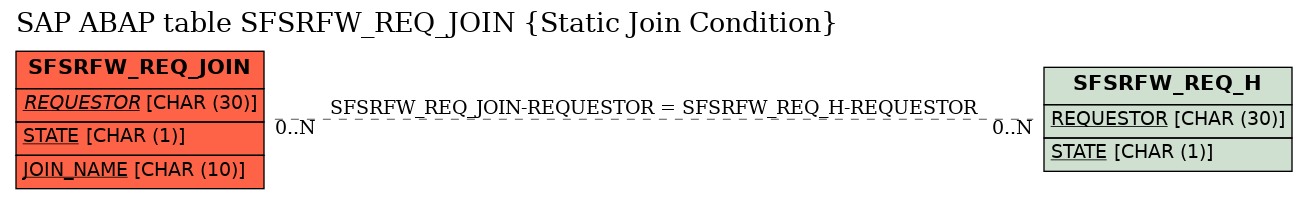

Transparent table	SFSRFW_REQ_JOIN	Table Relationship Diagram
Short Description	Static Join Condition

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REQUESTOR	☑	SFSRFW_REQUESTOR	SFSRFW_REQUESTOR	CHAR	30	0	Replication Framework - Requester	SFSRFW_REQ_H
2	STATE	☑	AS4LOCAL	AS4LOCAL	CHAR	1	0	Activation Status of a Repository Object
3	JOIN_NAME	☑	SFSRFW_JOIN_NAME	SFSRFW_JOIN_NAME	CHAR	10	0	Replication Framework - Join-Name
4	JOIN_TYPE	☐	SFSRFW_JOIN_TYPE	SFSRFW_JOIN_TYPE	CHAR	1	0	Replication Framework - Join-Type
5	LEFT_DOMAIN	☐	SFSRFW_SELECTION_DOMAIN	SFSRFW_SELECTION_DOMAIN	CHAR	30	0	Replication Framework - Selection Domain (BO Model)
6	LEFT_SRC_NAME	☐	SFSRFW_SELECTION	SFSRFW_SELECTION	CHAR	30	0	Replication Framework - Selection (Table/Node)
7	LEFT_SRC_TYPE	☐	SFSRFW_SELTYPE	SFSRFW_SELTYPE	CHAR	1	0	Replication Framework - Selection Type (T: Table, A: Node)
8	LEFT_SRC_INST	☐	SFSRFW_JOIN_INSTANCE_NAME		CHAR	8	0	Replication Framework - Instance Name of Join Object
9	LEFT_SRC_ATTR	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*
10	RIGHT_DOMAIN	☐	SFSRFW_SELECTION_DOMAIN	SFSRFW_SELECTION_DOMAIN	CHAR	30	0	Replication Framework - Selection Domain (BO Model)
11	RIGHT_SRC_NAME	☐	SFSRFW_SELECTION	SFSRFW_SELECTION	CHAR	30	0	Replication Framework - Selection (Table/Node)
12	RIGHT_SRC_TYPE	☐	SFSRFW_SELTYPE	SFSRFW_SELTYPE	CHAR	1	0	Replication Framework - Selection Type (T: Table, A: Node)
13	RIGHT_SRC_INST	☐	SFSRFW_JOIN_INSTANCE_NAME		CHAR	8	0	Replication Framework - Instance Name of Join Object
14	RIGHT_SRC_ATTR	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SFSRFW_REQ_JOIN	REQUESTOR	SFSRFW_REQ_H	REQUESTOR

History

Last changed by/on	SAP	20050302
SAP Release Created in	700
