SAP ABAP Table SDOKERRMSP (SDOK: Relationship with error information)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-SRV-KPR-DMS (Application Component) Document Management Services
⤷ SDOK (Package) SAP Knowledge Provider
⤷ BC-SRV-KPR-DMS (Application Component) Document Management Services
⤷ SDOK (Package) SAP Knowledge Provider
Basic Data
Table Category | INTTAB | Structure |

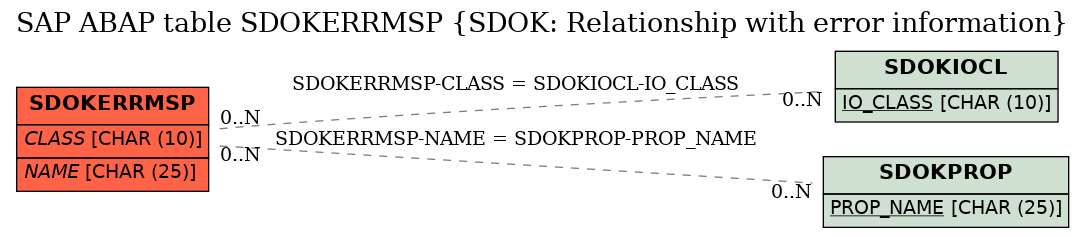

Structure | SDOKERRMSP | Table Relationship Diagram |
Short Description | SDOK: Relationship with error information |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | SDOK: Object, attribute name and feature | |||||
2 | .INCLUDE | 0 | 0 | SDOK: BOR key for information object | |||||
3 | CLASS | SDOK_CLASS | SDOK_CLASS | CHAR | 10 | 0 | Document class | SDOKIOCL | |
4 | OBJID | SDOK_DOCID | SDOK_DOCID | CHAR | 32 | 0 | ID for documents and relations | ||
5 | .INCLUDE | 0 | 0 | SDOK: Object attribute, name and feature | |||||
6 | NAME | SDOK_PROPN | SDOK_PROPN | CHAR | 25 | 0 | Attribute of a document or a relationship | SDOKPROP | |
7 | VALUE | SDOK_PROPV | SDOK_PROPV | CHAR | 64 | 0 | Attribute Value | ||
8 | ERROR_KEY | SDOK_ERRKY | SDOK_ERRKY | NUMC | 2 | 0 | Error code | ||
9 | .INCLUDE | 0 | 0 | IWB: Message passing structure | |||||
10 | ID | SYMSGID | ARBGB | CHAR | 20 | 0 | Message Class | * | |
11 | TYPE | SYMSGTY | SYCHAR01 | CHAR | 1 | 0 | Message Type | ||
12 | NO | SYMSGNO | SYMSGNO | NUMC | 3 | 0 | Message Number | ||
13 | V1 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
14 | V2 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
15 | V3 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable | ||
16 | V4 | SYMSGV | SYCHAR50 | CHAR | 50 | 0 | Message Variable |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | SDOKERRMSP | CLASS | SDOKIOCL | IO_CLASS | |||
2 | SDOKERRMSP | NAME | SDOKPROP | PROP_NAME |
History
Last changed by/on | SAP | 20141013 |
SAP Release Created in |
