SAP ABAP Table SDIAGLS_SMSY_SYSTEM (Smsy systems)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-DIA (Application Component) Solution Manager Diagnostics
     ⤷ AI_DIAGNOSTICS_LANDSCAPE_SMSY (Package) Landscape API SMSY implementation

Basic Data

Table Category	INTTAB	Structure

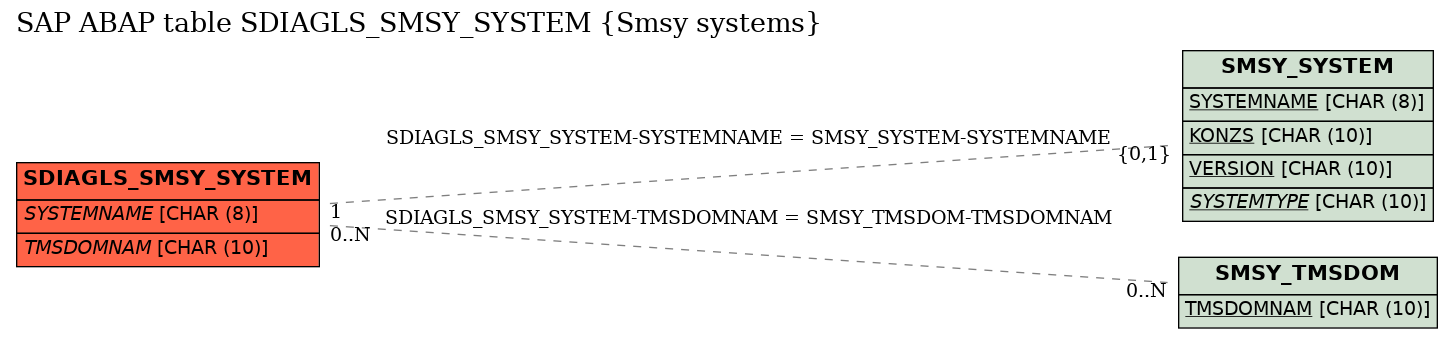

Structure	SDIAGLS_SMSY_SYSTEM	Table Relationship Diagram
Short Description	Smsy systems

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Product Systems
2	SYSTEMNAME	☐	SMSY_NAME	SMSY_NAME	CHAR	8	0	Product System Name	SMSY_SYSTEM
3	KONZS	☐	KONZS	KONZS	CHAR	10	0	Group key
4	VERSION	☐	SMSY_VERSION	SMSY_VERSION	CHAR	10	0	Version
5	SYSTEMTYPE	☐	SMSY_SYSTYPE	SMSY_SYSTYPE	CHAR	10	0	Typing of Technical Systems	*
6	ARCHITECTURE	☐	SMSY_ARCH	SMSY_ARCH	CHAR	15	0	Architecture
7	SYSNR	☐	SYSTNR	SYSTNR	CHAR	2	0	System Number
8	MESSSERVER	☐	MESSSERVER	LGMSHOST	CHAR	255	0	Message Server
9	INST_NUMBER	☐	SMSY_INST_NR		CHAR	10	0	Installation Number
10	DBSYS	☐	SYDBSYS	SYCHAR10	CHAR	10	0	Central Database System
11	.INCLUDE	☐				0	0	System Landscape History Data
12	SYDATUM	☐	SYDATUM	SYDATS	DATS	8	0	System Date
13	SYUZEIT	☐	SYUZEIT	SYTIME	TIMS	6	0	System Time
14	SYUNAME	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
15	TRCODE	☐	TCODE	TCODE	CHAR	20	0	Transaction Code	*
16	GENERATOR	☐	SMSY_FLAG	SMSY_FLAG	CHAR	10	0	System Landscape Capture Flag
17	AKT_VERSION	☐	SMSY_VERSION	SMSY_VERSION	CHAR	10	0	Version
18	TMSDOMNAM	☐	TMSDOMNAM	TMSDOMNAM	CHAR	10	0	TMS: Transport Domain	SMSY_TMSDOM
19	DISPATCHER	☐	SMSY_DISPATCHER	SMSY_DISPATCHER	CHAR	255	0	Dispatcher
20	PORTNR	☐	SMSY_PORTNR	SMSY_PORTNR	NUMC	5	0	Port Number
21	TEMP_INACTIVE	☐	SMSY_FLG_INACTIV	X	CHAR	1	0	Temporarily Inactive Product System
22	.INCLUDE	☐				0	0	SLD Source Description
23	SLDHOST	☐	SLD_HOSTNAME	PHOST	CHAR	64	0	Host Name of System Landscape Directory
24	SLDPORT	☐	SLD_PORTNUMBER		NUMC	5	0	Port Number of System Landscape Directory
25	SLDNAMESPACE	☐	SMSY_SLD_NSPACE	SMSY_SLD_NSPACE	CHAR	40	0	SLD Namespace
26	SLD_NAME	☐	SLDNAME		CHAR	255	0	Name in SLD
27	TMS_VIRTUAL	☐	SMSY_FLG_VIRTUAL	SMSY_FLG_VIRTUAL	CHAR	1	0	Flag: Virtual System (TMS)
28	LICENSE_EXP	☐	SMSY_LIC_DATE	SYDATS	DATS	8	0	License Expiry Date
29	PROTOCOL	☐	SMSY_HTTP_PROT	SMSY_HTTP_PROT	CHAR	10	0	HTTP Protocol
30	NO_ABAP_INCLUDED	☐	SMSY_YESNO	X	CHAR	1	0	Flag, 'X' = Yes, ' ' = No
31	MSG_SERVER_ID	☐	CUSTKEY_T		CHAR	11	0	Active hardware key from saplicense
32	SYSTEM_HOME	☐	SMSY_SYSTEM_HOME	SMSY_SYSTEM_HOME	CHAR	60	0	System Home
33	HAS_RELEVANT_MAIN_INSTANCE	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
34	HAS_DIAG_PRODUCT_VERSION	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SDIAGLS_SMSY_SYSTEM	SYSTEMNAME	SMSY_SYSTEM	SYSTEMNAME	KEY	1	C
2	SDIAGLS_SMSY_SYSTEM	TMSDOMNAM	SMSY_TMSDOM	TMSDOMNAM

History

Last changed by/on	SAP	20111123
SAP Release Created in	400
