SAP ABAP Table SDIAG_H_PATH (Solman Diagnostics File Path Repository)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG (Application Component) Solution Manager
     ⤷ AI_SOLMAN_DIAGNOSTICS (Package) Solution Manager Diagnostics Integration

Basic Data

Table Category	TRANSP	Transparent table

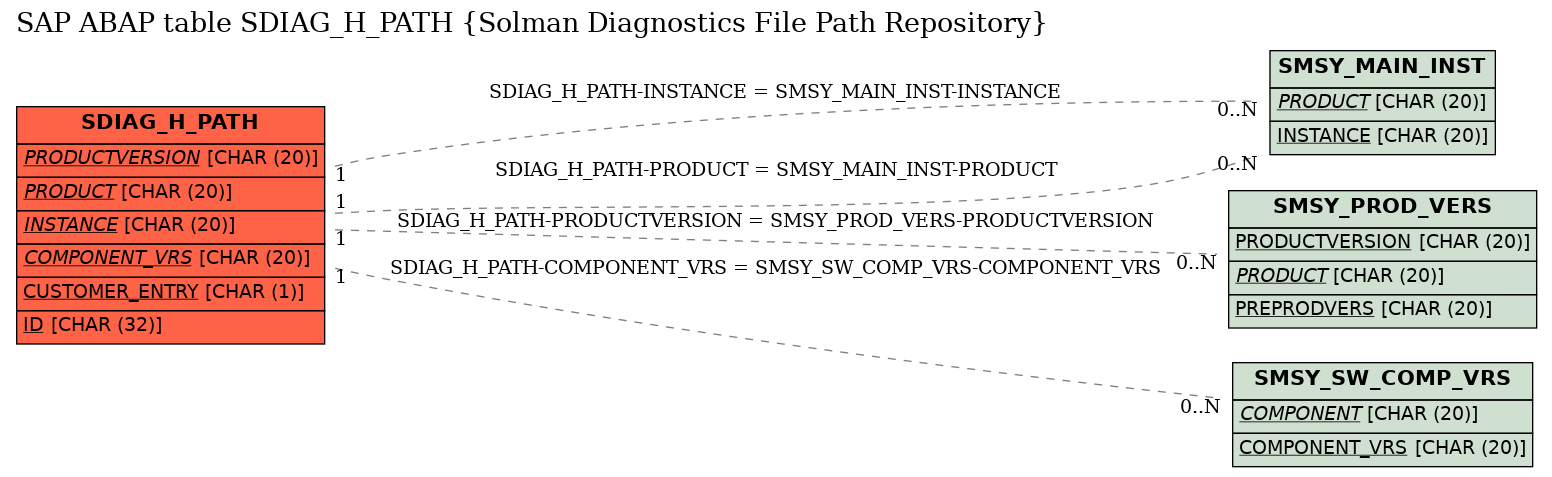

Transparent table	SDIAG_H_PATH	Table Relationship Diagram
Short Description	Solman Diagnostics File Path Repository

Delivery and Maintenance

Pool/cluster
Delivery Class	S	System table, maint. only by SAP, change = modification
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	PRODUCTVERSION	☑	SMSYPRODVERS	SMSYPRODVERS	CHAR	20	0	PPMS Product Version	SMSY_PROD_VERS
2	PRODUCT	☑	SMSYPRODUCT	SMSYPRODUCT	CHAR	20	0	PPMS Product	SMSY_MAIN_INST
3	INSTANCE	☑	SMSYINSTANCE	SMSYINSTANCE	CHAR	20	0	Product Instance	SMSY_MAIN_INST
4	COMPONENT_VRS	☑	SMSYCOMP_VRS	SMSYCOMP_VRS	CHAR	20	0	Component Version	SMSY_SW_COMP_VRS
5	CUSTOMER_ENTRY	☑	SMSY_YESNO	X	CHAR	1	0	Flag, 'X' = Yes, ' ' = No
6	ID	☑	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
7	PARENT	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
8	TYPE	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
9	VALUE	☐			STRG	0	0
10	.INCLUDE	☐				0	0	Data of Last Person to Make Changes
11	LUSER	☐	SYUNAME	SYCHAR12	CHAR	12	0	User Name
12	LDATE	☐	SYDATUM	SYDATS	DATS	8	0	System Date
13	LTIME	☐	SYUZEIT	SYTIME	TIMS	6	0	System Time

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SDIAG_H_PATH	COMPONENT_VRS	SMSY_SW_COMP_VRS	COMPONENT_VRS	KEY	1	CN
2	SDIAG_H_PATH	INSTANCE	SMSY_MAIN_INST	INSTANCE	KEY	1	CN
3	SDIAG_H_PATH	PRODUCT	SMSY_MAIN_INST	PRODUCT	KEY	1	CN
4	SDIAG_H_PATH	PRODUCTVERSION	SMSY_PROD_VERS	PRODUCTVERSION	KEY	1	CN

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
