SAP ABAP Table SDB_CLASS_SYSTEM (Classification Systems Meta Data Cache)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-ESI-WS-ABA-CFG (Application Component) WebServices ABAP Configuration
     ⤷ SCLASSIFICATION (Package) Object Classification

Basic Data

Table Category	TRANSP	Transparent table

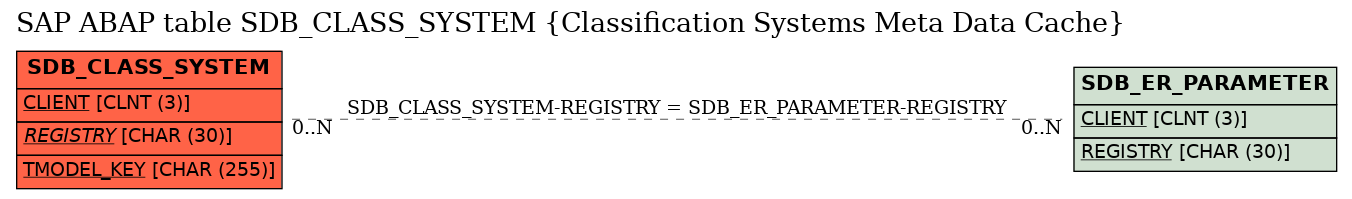

Transparent table	SDB_CLASS_SYSTEM	Table Relationship Diagram
Short Description	Classification Systems Meta Data Cache

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	REGISTRY	☑	SDEL_REGISTRY	SDOM_REGISTRY	CHAR	30	0	Services Registry	SDB_ER_PARAMETER
3	TMODEL_KEY	☑	ER_CLASS_NAME	SDOM_ER_CLASS_NAME	CHAR	255	0	Classification TModel Key Name
4	NAMESPACE	☐	ESD_NAMESPACE	TEXT255	CHAR	255	0	ESD: Namespace
5	NAME	☐	SDEL_ER_CLASSIFICATION_NAME	CHAR255	CHAR	255	0	Classification/Atrribute Name for UDDI
6	DESCRIPTION	☐			STRG	0	0
7	TYPE	☐	DEL_ER_CLFCATION_SYSTEM_TYPE	SDOM_ER_CLFCATION_SYSTEM_TYPE	CHAR	1	0	Classification System Type
8	ISREADONLY	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
9	ISONLYONCE	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
10	VALUESVERSION	☐			INT4	10	0
11	GLOBAL_VERSION	☐			INT4	10	0
12	MTIME_SAP_MOD_S	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
13	MTIME_CUST_MOD_S	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
14	IDE_SAP_MOD_SRV	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
15	IDE_SAP_PRG_SRV	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
16	IDE_CUST_MOD_SRV	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
17	IDE_CUST_PRG_SRV	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
18	ISPREDEFINED	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SDB_CLASS_SYSTEM	REGISTRY	SDB_ER_PARAMETER	REGISTRY

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
