SAP ABAP Table SBRF212 (BRF: Rules in Event - Screen Structure)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SRV-BRF (Application Component) Business Rule Framework
     ⤷ SBRF (Package) Business Rule Framework

Basic Data

Table Category	INTTAB	Structure

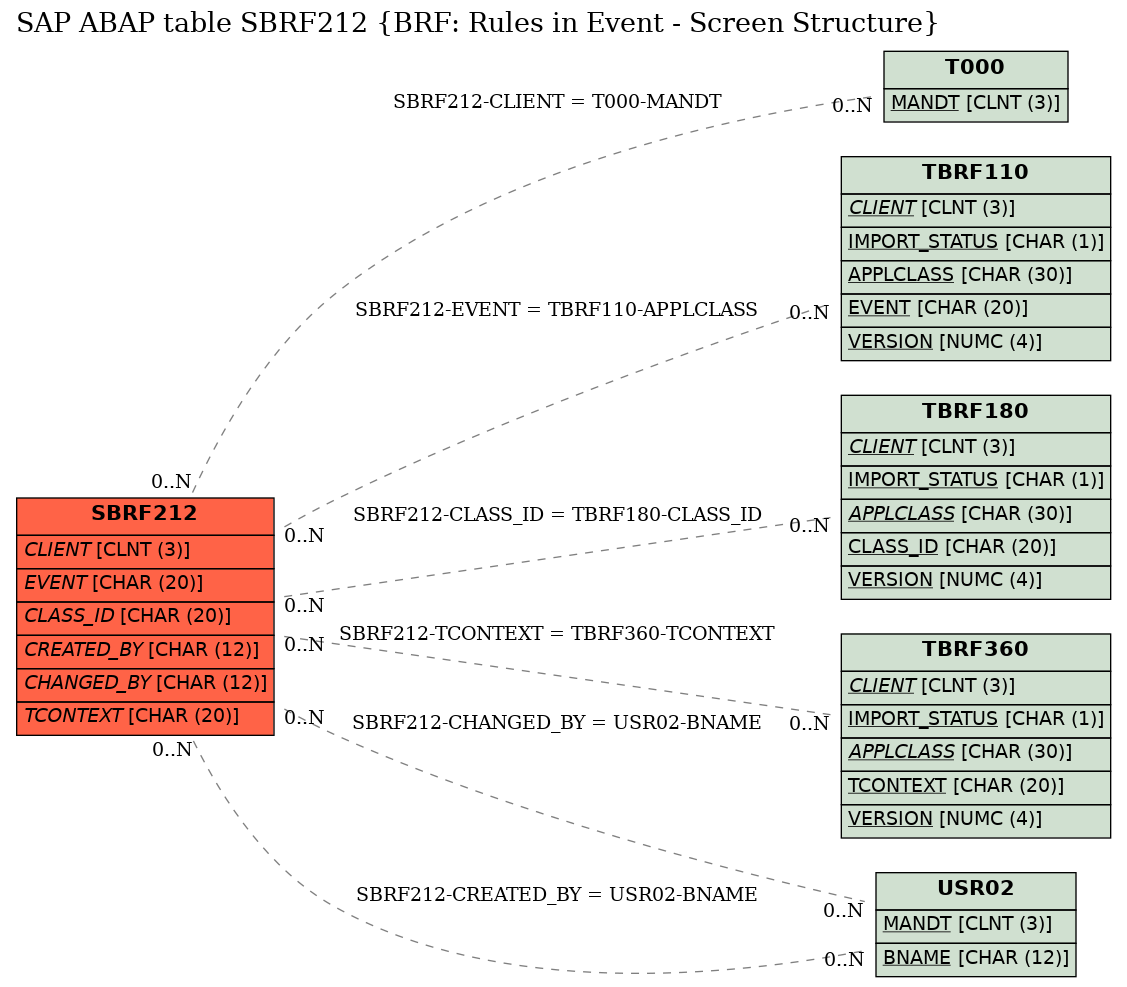

Structure	SBRF212	Table Relationship Diagram
Short Description	BRF: Rules in Event - Screen Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	(Obsolete) BRF: Rules in Event - Administrative Data
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	.INCLUDE	☐				0	0	BRF: Event - Common Key Fields
4	IMPORT_STATUS	☐	BRF_IMPORT_STATUS	BRF_IMPORT_STATUS	CHAR	1	0	BRF: Import Status
5	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	*
6	EVENT	☐	BRF_EVENT	BRF_EVENT	CHAR	20	0	Name of Event	TBRF110
7	VERSION	☐	BRF_VERSION	BRF_VERSION	NUMC	4	0	BRF: Version
8	CLASS_ID	☐	BRF_CLASS_ID	BRF_CLASS_ID	CHAR	20	0	Key of Implementing Class	TBRF180
9	.INCLUDE	☐				0	0	BRF: Administration Information
10	CREATED_BY	☐	BRF_CREATED_BY	XUBNAME	CHAR	12	0	BRF: Version Created by	USR02
11	CREATED_AT	☐	BRF_CREATED_AT	TZNTSTMPS	DEC	15	0	Version Created On/At
12	CHANGED_BY	☐	BRF_CHANGED_BY	XUBNAME	CHAR	12	0	BRF: Version Changed By	USR02
13	CHANGED_AT	☐	BRF_CHANGED_AT	TZNTSTMPS	DEC	15	0	Version Changed On/At
14	DELETED	☐	BRF_XDELETED	BRF_BOOLE_D	CHAR	1	0	Obsolete (BRF: Mark Entry for Physical Deletion)
15	TCONTEXT	☐	BRF_TCONTEXT	BRF_TCONTEXT	CHAR	20	0	Context	TBRF360
16	CHECKED	☐	BRF_CHECKED	BRF_CHECK_STATUS	INT1	3	0	BRF: Has the Object Been Checked?
17	CREATED_AT_DATE	☐			DATS	8	0
18	CREATED_AT_TIME	☐			TIMS	6	0
19	CREATED_AT_DATE_LOC	☐			DATS	8	0
20	CREATED_AT_TIME_LOC	☐			TIMS	6	0
21	TIME_ZONE	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
22	TIME_ZONE_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
23	TIME_ZONE_LOC	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
24	TIME_ZONE_LOC_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
25	CHANGED_AT_DATE_LOC	☐			DATS	8	0
26	CHANGED_AT_TIME_LOC	☐			TIMS	6	0
27	CHANGED_TIME_ZONE_LOC	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
28	CHANGED_TIME_ZONE_LOC_SHORT	☐	TZNDESCTZN	TEXT30	CHAR	30	0	Time Zone Text
29	CHANGED_NAME_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
30	APPLCLASS_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
31	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	*
32	LANGU_SHORT	☐	SPTXT	SPTXT16	CHAR	16	0	Name of Language
33	NAME_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
34	IMPORT_STATUS_SHORT	☐	DDTEXT	DDTEXT	CHAR	60	0	Explanatory short text
35	CHECK_STATUS_SHORT	☐	BRF_CHECK_STATUS_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	Short Description of Check Status
36	CLASS_NAME	☐	BRF_CLASS	SEOCLSNAME	CHAR	30	0	Name of Implementing Class
37	CLASS_SHORT	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SBRF212	CHANGED_BY	USR02	BNAME
2	SBRF212	CLASS_ID	TBRF180	CLASS_ID
3	SBRF212	CLIENT	T000	MANDT
4	SBRF212	CREATED_BY	USR02	BNAME
5	SBRF212	EVENT	TBRF110	APPLCLASS
6	SBRF212	TCONTEXT	TBRF360	TCONTEXT

History

Last changed by/on	SAP	20130604
SAP Release Created in	710
