SAP ABAP Table SATC_WL_OBJSET ("Worklist": Object 2 set assignment (transactional data))

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DWB-TOO-ATF (Application Component) ABAP Test Frameworks ( ATC, CheckMan, Code Inspector)
     ⤷ SATC_ABAP_CHECK_WL (Package) INTERNAL: - *NO* REUSE - Worklist

Basic Data

Table Category	TRANSP	Transparent table

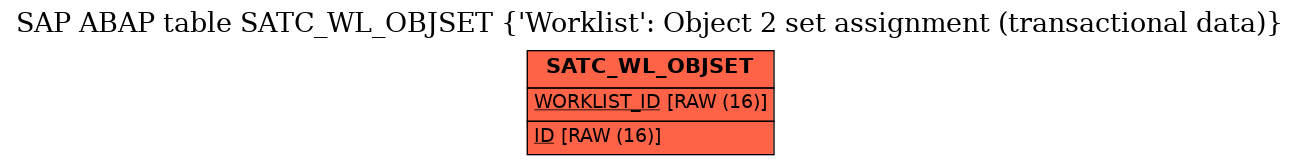

Transparent table	SATC_WL_OBJSET	Table Relationship Diagram
Short Description	"Worklist": Object 2 set assignment (transactional data)

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	WORKLIST_ID	☑	SATC_D_ID	SYSUUID	RAW	16	0	Unique ID - hex 16 - raw format
2	ID	☑	SATC_D_ID	SYSUUID	RAW	16	0	Unique ID - hex 16 - raw format
3	.INCLUDE	☐				0	0	Object set key
4	KIND	☐	SATC_D_WL_OBJSET_KIND	SATC_WL_OBJSET_KIND	INT1	3	0	Object set kind
5	NAME	☐	SATC_D_WL_OBJSET_NAME	SATC_ADT_OBJSET_NAME	SSTR	48	0	Object set name (unique together with kind)
6	DETAILS	☐	SABP_D_SERIALIZED_DATA		RSTR	0	0	Serialized Data (Export or Call Transformation)
7	DETAILS_CHECKSUM	☐	SATC_D_CRC32		INT4	10	0	Checksum based on CRC32
8	DETAILS_LENGTH	☐			INT4	10	0
9	ACCESSED_ON	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
10	ACCESSED_IN_MERGE	☐	SATC_D_WL_MERGE_LEVEL		INT4	10	0	Merge level
11	CREATED_ON	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
12	TITLE	☐			STRG	0	0
13	IS_DELTA_QUERY_POSSIBLE	☐	SAP_BOOL	SAP_BOOL	CHAR	1	0	Boolean Variable (X=True, Space=False)

History

Last changed by/on	SAP	20141013
SAP Release Created in	740
