SAP ABAP Table SATC_SET_ATTR (Movement Data: Attribute <=> Set Relation)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DWB-TOO-ATF (Application Component) ABAP Test Frameworks ( ATC, CheckMan, Code Inspector)
     ⤷ SATC_STDLIB_PERSISTENCE_CORE (Package) INTERNAL: - *NO* REUSE - sets, domain, etc. implementation

Basic Data

Table Category	TRANSP	Transparent table

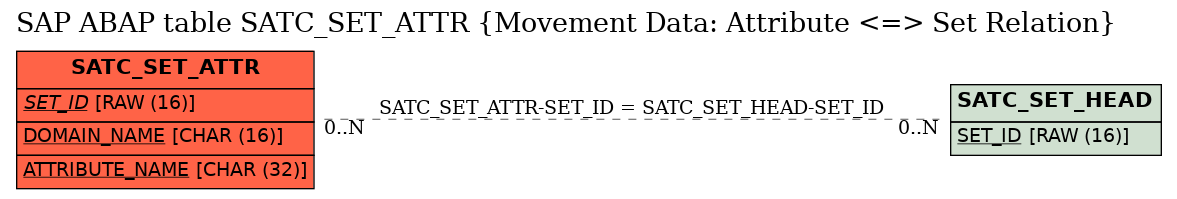

Transparent table	SATC_SET_ATTR	Table Relationship Diagram
Short Description	Movement Data: Attribute <=> Set Relation

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SET_ID	☑	SATC_D_ID	SYSUUID	RAW	16	0	Unique ID - hex 16 - raw format	SATC_SET_HEAD
2	DOMAIN_NAME	☑	SATC_D_DOMAIN_NAME	SATC_DOMAIN_NAME	CHAR	16	0	Domain name
3	ATTRIBUTE_NAME	☑	SATC_D_SET_ATTRIBUTE_NAME	SATC_NAME	CHAR	32	0	Name of a set attribute

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SATC_SET_ATTR	SET_ID	SATC_SET_HEAD	SET_ID

History

Last changed by/on	SAP	20130604
SAP Release Created in	710
