SAP ABAP Table SAML2_TIDFED (SAML2 Transient NameID Federation Table)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SEC-LGN-SML (Application Component) SAML 2.0
     ⤷ SAML2_CORE (Package) SAML2 Core Functionality

Basic Data

Table Category	TRANSP	Transparent table

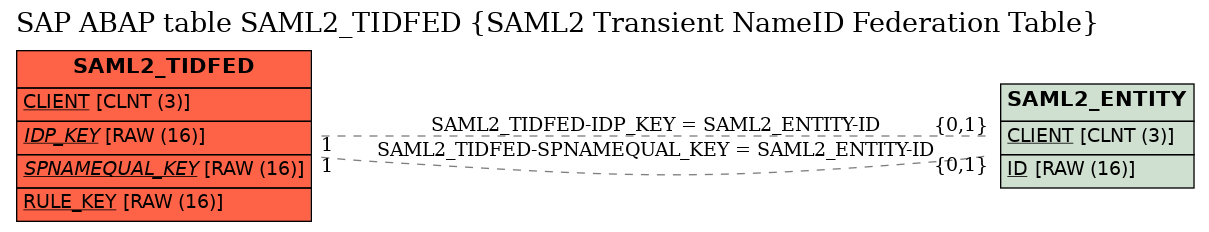

Transparent table	SAML2_TIDFED	Table Relationship Diagram
Short Description	SAML2 Transient NameID Federation Table

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	IDP_KEY	☑	SAML2_ENTITY_KEY	SYSUUID	RAW	16	0	SAML2 Entity ID Key	SAML2_ENTITY
3	SPNAMEQUAL_KEY	☑	SAML2_ENTITY_KEY	SYSUUID	RAW	16	0	SAML2 Entity ID Key	SAML2_ENTITY
4	RULE_KEY	☑	SAML2_RULE_KEY	SYSUUID	RAW	16	0	Key for user-mapping rules for Transient NameID
5	BNAME	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*
6	RULE_PRIORITY	☐	SAML2_RULE_PRIORITY	SAML2_RULE_PRIORITY	INT2	5	0	Priority for the username-mapping rule
7	RULE_DESCRIPTION	☐	SAML2_RULE_DESCRIPTION	SAML2_RULE_DESCRIPTION	CHAR	255	0	SAML2 rule description
8	CREATED_BY	☐	SAML2_ENTITY_CREATOR	XUBNAME	CHAR	12	0	Entity Created By	*
9	CREATED_ON	☐	SAML2_ENTITY_CREATED_ON	TZNTSTMPS	DEC	15	0	Entity Created On
10	NAME_FORMAT	☐	SAML2_NAMEID_KEY	SAML2_NAMEID_KEY	INT2	5	0	SAML2 Logon Format	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	SAML2_TIDFED	IDP_KEY	SAML2_ENTITY	ID	KEY	1	C
2	SAML2_TIDFED	SPNAMEQUAL_KEY	SAML2_ENTITY	ID	KEY	1	C

History

Last changed by/on	SAP	20140117
SAP Release Created in	720
