SAP ABAP Table SAML2_SESS_AUTH (List: Authentication Procedure for a SAML Session)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷ BC-SEC-LGN-SML (Application Component) SAML 2.0
⤷ SAML2_SESSION (Package) SAML2 Session Functionality
⤷ BC-SEC-LGN-SML (Application Component) SAML 2.0
⤷ SAML2_SESSION (Package) SAML2 Session Functionality
Basic Data
Table Category | TRANSP | Transparent table |

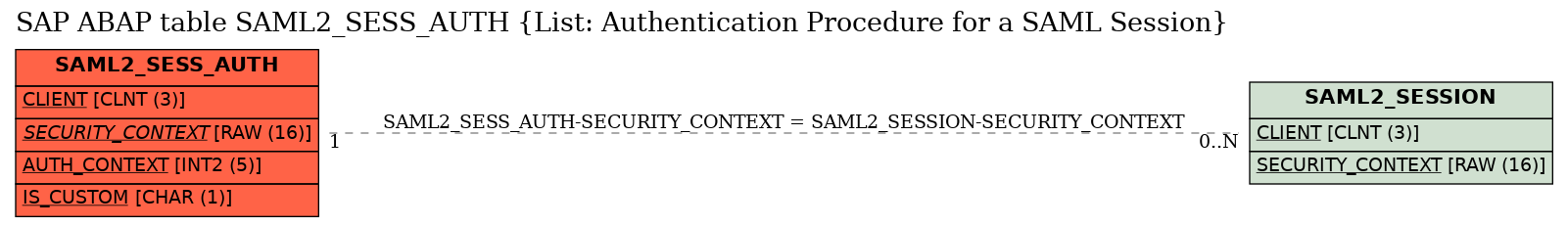

Transparent table | SAML2_SESS_AUTH | Table Relationship Diagram |
Short Description | List: Authentication Procedure for a SAML Session |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | L | Table for storing temporary data, delivered empty |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | CLIENT | MANDT | MANDT | CLNT | 3 | 0 | Client | * | |
2 | SECURITY_CONTEXT | SECURITY_CONTEXT_REF | SYSUUID | RAW | 16 | 0 | Internal Reference to Security Context (Time-Invariant) | SAML2_SESSION | |
3 | AUTH_CONTEXT | SAML2_AUTH_CLASS_KEY | SAML2_AUTH_CLASS_KEY | INT2 | 5 | 0 | Key Value of the SAML2 Logon Context | * | |
4 | IS_CUSTOM | SAML2_CUSTOM_AUTH_CTX | SAML2_CUSTOM_AUTH_CTX | CHAR | 1 | 0 | Is custom authentication context |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | SAML2_SESS_AUTH | SECURITY_CONTEXT | SAML2_SESSION | SECURITY_CONTEXT | KEY | 1 | CN |
History
Last changed by/on | SAP | 20110908 |
SAP Release Created in | 720 |
