SAP ABAP Table RSMDCNVCHABAS (Master Data Conversion Characteristics to Be Converted)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-WHM-DBA (Application Component) Data Basis
     ⤷ RSMD (Package) Master Data Conversion (Alpha)

Basic Data

Table Category	TRANSP	Transparent table

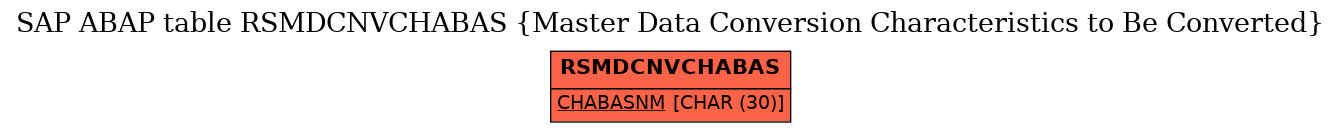

Transparent table	RSMDCNVCHABAS	Table Relationship Diagram
Short Description	Master Data Conversion Characteristics to Be Converted

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CHABASNM	☑	RSCHABASNM	RSCHABASNM	CHAR	30	0	Reference characteristic
2	.INCLUDE	☐				0	0	Master Data Conversion Information DB
3	CNVTAB	☐	RSMDCNVTAB	AS4TAB	CHAR	30	0	Conversion Table of a Char. (SID and Concatenated Values)	*
4	CNVTYPE	☐	TTYPENAME	TTYPENAME	CHAR	30	0	Name of table type	*
5	KEYSUNIQUE	☐	RSMDCNVUNIQUE	XFELD	CHAR	1	0	Indicator to Show whether Vals. are Consistent for Conversn.
6	ONLYCMP	☐	RSMDONLYCMP	XFELD	CHAR	1	0	Only Values for Superior Characteristics are Inconsistent
7	CONVEXIT	☐	CONVEXIT	CONVEXIT	CHAR	5	0	Conversion Routine
8	REMOVE_CONVEXIT	☐	RSMD_REMOVE_CONVEXIT	XFELD	CHAR	1	0	Remove Conversion Routine
9	CONVERT	☐	RSMD_CONVERT	XFELD	CHAR	1	0	Indicator: Convert Characteristic
10	INCONSISTENT_SID	☐	RSMD_INCONSISTENT_SID	INT4	INT4	10	0	NUmber of Inconsistent Values in the SID Table
11	COLLISIONS_SID	☐	RSMD_COLLISIONS_SID	INT4	INT4	10	0	Number of Collisions in the SID Table
12	USED_IN_ODS	☐	RSMD_USED_IN_ODS	XFELD	CHAR	1	0	Used in ODS Objects
13	RECALCULATION	☐	RSMD_RECALCULATION	XFELD	CHAR	1	0	Conversion Table for Characteristic Must Be Recalculated

History

Last changed by/on	SAP	20040315
SAP Release Created in	46C
