SAP ABAP Table RSAPO_INT_KEYFS (Reference structure RFC from APO - Key figures)

Hierarchy

☛ SAP_BW (Software Component) SAP Business Warehouse
   ⤷ BW-BEX-OT (Application Component) OLAP Technology
     ⤷ RSAPO (Package) Interface for APO

Basic Data

Table Category	INTTAB	Structure
Structure	RSAPO_INT_KEYFS	Table Relationship Diagram
Short Description	Reference structure RFC from APO - Key figures

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Reference structure RFC from APO - characteristics
2	IOBJNM	☐	RSIOBJNM	RSIOBJNM	CHAR	30	0	InfoObject
3	DIMENSION	☐	RSDIMENSION	RSDIMENSION	CHAR	30	0	Dimension
4	CHANM	☐	RSCHANM	RSIOBJNM	CHAR	30	0	Characteristic
5	CHASEL	☐	RSCHASEL	RSCHASEL	CHAR	1	0	Selection restriction for characteristics
6	.INCLUDE	☐				0	0	DDIC Properties of a Table Field
7	FIELDNM	☐	RSDIOBJFIELDNM	FDNAME	CHAR	30	0	Field Name InfoObject In Structures (Not in database table)	*
8	DTELNM	☐	ROLLNAME	ROLLNAME	CHAR	30	0	Data element (semantic domain)	DD04L
9	DTELNM_DB	☐	ROLLNAME	ROLLNAME	CHAR	30	0	Data element (semantic domain)	*
10	CHKTAB	☐	RSDCHKVIEW	AS4TAB	CHAR	30	0	View of master data tables	*
11	.INCLUDE	☐				0	0	DDIC Properties of a (Basic) Characteristic
12	DATATP	☐	DATATYPE_D	DATATYPE	CHAR	4	0	Data Type in ABAP Dictionary
13	INTLEN	☐	RSDINTLEN	DDLENG	NUMC	6	0	Internal Length of InfoObjects in BW - see Docu
14	OUTPUTLEN	☐	OUTPUTLEN	DDLENG	NUMC	6	0	Output Length
15	CONVEXIT	☐	CONVEXIT	CONVEXIT	CHAR	5	0	Conversion Routine
16	FVALEX	☐	RSFVALEX	XFELD	CHAR	1	0	Domain fixed values exist (flag)
17	LOWERCASE	☐	LOWERCASE	AS4FLAG	CHAR	1	0	Lowercase letters allowed/not allowed
18	INTTP	☐	INTTYPE	INTTYPE	CHAR	1	0	ABAP data type (C,D,N,...)
19	DECIMALS	☐	DECIMALS	DDLENG	NUMC	6	0	Number of Decimal Places
20	DIGITS	☐	RSDIGITS	NUM6	NUMC	6	0	Number of Characters in Field
21	POSIT	☐	RSPOSIT	AS4POS	NUMC	4	0	Position of the Field in the Structure / Table
22	MASK	☐	AS4MASK	AS4MASK	CHAR	20	0	Template (not used)
23	MASKLEN	☐	MASKLEN	MASKLEN	NUMC	4	0	Template length (not used)
24	BYTELENG	☐	INTLEN	DDLENG	NUMC	6	0	Internal Length in Bytes
25	.INCLUDE	☐				0	0	Structure with short and long text
26	TXTSH	☐	RSTXTSH	TEXT20	CHAR	20	0	Short description
27	TXTLG	☐	RSTXTLG	TEXT60	CHAR	60	0	Long description
28	CHABASNM	☐	RSCHABASNM	RSCHABASNM	CHAR	30	0	Reference characteristic
29	CMPSTA	☐	RSCMPSTA	RSCMPSTA	CHAR	1	0	Compound status
30	TIMDEPFL	☐	RSTIMDEPFL	XFELD	CHAR	1	0	Flag: Master data is time-dependent
31	SIDFIELDNM	☐	RSSIDFIELDNM	FDNAME	CHAR	30	0	InfoObject SID Field Name	*
32	ATRNAVFL	☐	RSATRNAVFL	XFELD	CHAR	1	0	The InfoObject is a navigation attribute
33	KYFTP	☐	RSKYFTP	RSKYFTP	CHAR	3	0	Key figure type
34	UNINM	☐	RSUNINM	RSIOBJNM	CHAR	30	0	Unit InfoObject (currency/unit)	RSDUNI

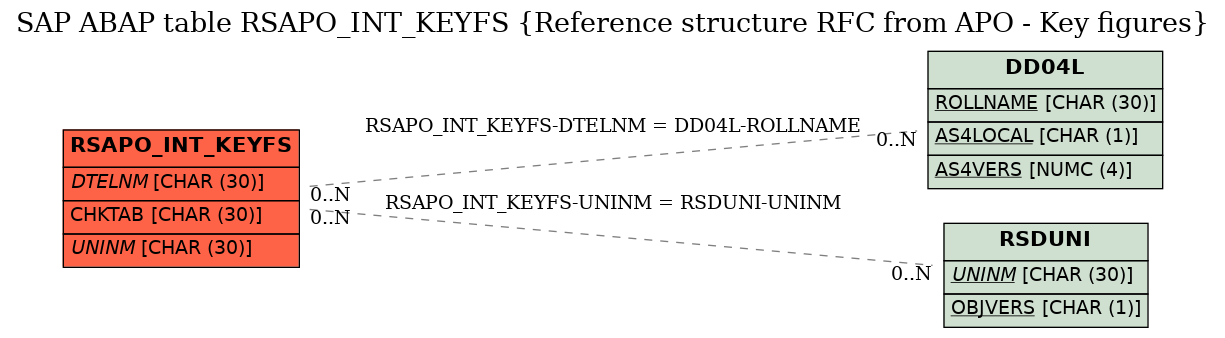

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RSAPO_INT_KEYFS	DTELNM	DD04L	ROLLNAME	KEY
2	RSAPO_INT_KEYFS	UNINM	RSDUNI	UNINM	REF

History

Last changed by/on	SAP	20141013
SAP Release Created in
