SAP ABAP Table ROPROXCONF (Deprecated)

Hierarchy

☛ PI_BASIS (Software Component) Basis Plug-In
   ⤷ BC-BW (Application Component) BW Service API
     ⤷ RSUM (Package) BW Service API: Metadata

Basic Data

Table Category	TRANSP	Transparent table

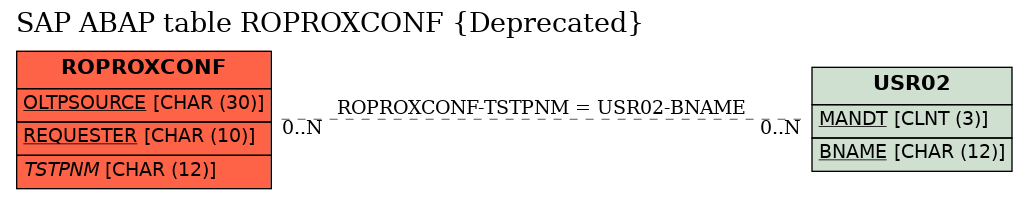

Transparent table	ROPROXCONF	Table Relationship Diagram
Short Description	Deprecated

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OLTPSOURCE	☑	ROOSOURCER	ROOSOURCED	CHAR	30	0	DataSource (OSOA/OSOD)
2	REQUESTER	☑	RSRLOGSYS	LOGSYS	CHAR	10	0	Source system of the receiver	*
3	PROXYNAME	☐	CLASSNAME	CLASSNAME	CHAR	30	0	Reference type
4	PORTNAME	☐	ROPORTNAME		CHAR	60	0	Name of Logical Port
5	PULL	☐	ROFLAG	X	CHAR	1	0	Indicator
6	DEBUG	☐	ROFLAG	X	CHAR	1	0	Indicator
7	.INCLUDE	☐				0	0	Include: Last changed by, date, time
8	TSTPNM	☐	RSTSTPNM	XUBNAME	CHAR	12	0	Last changed by	USR02
9	TSTPDAT	☐	RSTSTPDAT	AS4DATE	DATS	8	0	Changed On
10	TSTPTIM	☐	RSTSTPTIM	AS4TIME	TIMS	6	0	Changed at

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ROPROXCONF	TSTPNM	USR02	BNAME

History

Last changed by/on	SAP	20110908
SAP Release Created in
