SAP ABAP Table RMSLS_LO_INIT (Item of an Ingredient Label List)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSL (Package) Labeling Application

Basic Data

Table Category	INTTAB	Structure

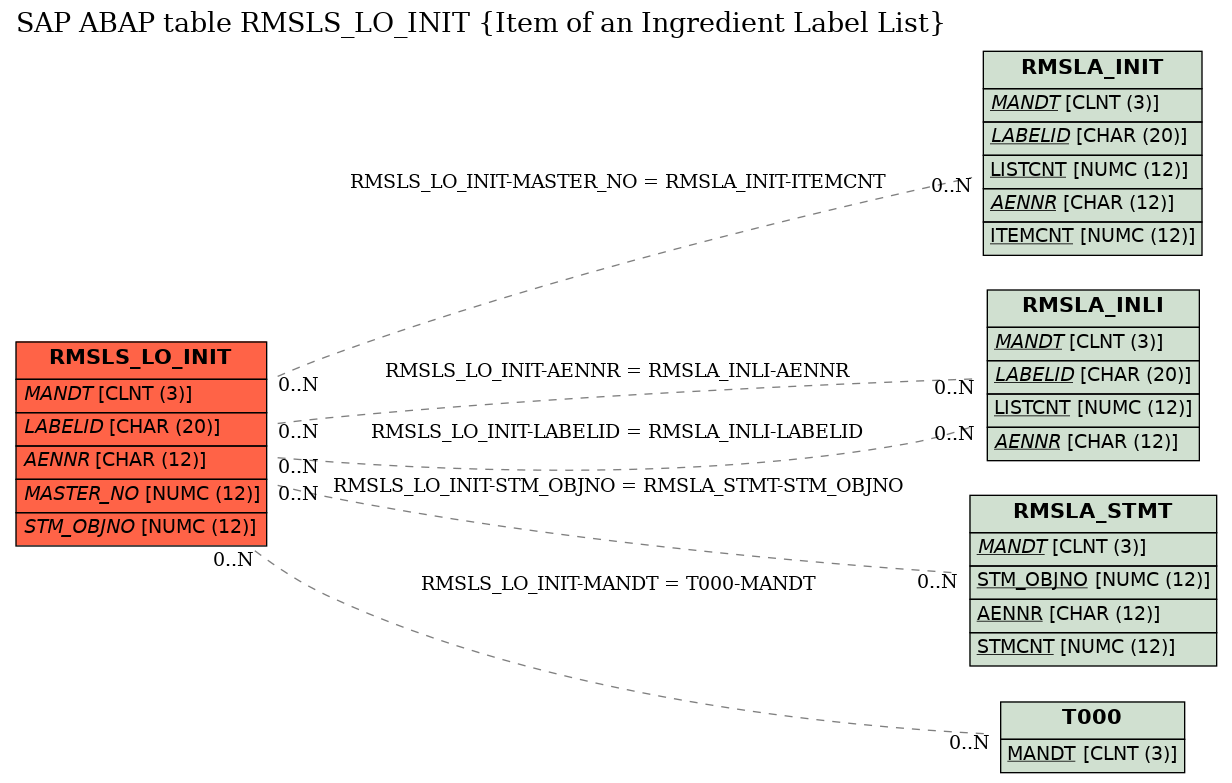

Structure	RMSLS_LO_INIT	Table Relationship Diagram
Short Description	Item of an Ingredient Label List

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Item of an Ingredient Label List
2	.INCLUDE	☐				0	0	Items of Ingredient Label List
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
4	LABELID	☐	RMSLE_LABELID	RMSLD_LABELID	CHAR	20	0	Label Set	RMSLA_INLI
5	LISTCNT	☐	RMSLE_LISTCNT	RMSLD_CNT	NUMC	12	0	List Counter
6	AENNR	☐	AENNR	AENNR	CHAR	12	0	Change Number	RMSLA_INLI
7	ITEMCNT	☐	RMSLE_ITEMCNT	RMSLD_CNT	NUMC	12	0	Internal Item Counter
8	TYPE	☐	RMSLE_ITEM_TYPE	RMSLD_ITEM_TYPE	CHAR	1	0	Category of an Item in the Ingredient Label List
9	MASTER_NO	☐	RMSLE_MASTER_NO	RMSLD_CNT	NUMC	12	0	Superior Element	RMSLA_INIT
10	POSNR	☐	RMSLE_POSNR	RMSLD_CNT	NUMC	12	0	Item Number in a Label Set List
11	INGREDIENT	☐	RMSLE_INGREDIENT	RMSLD_OBJID	CHAR	40	0	Ingredient
12	LABEL_NAME	☐	RMSLE_LABEL_NAME	RMSLD_OBJID	CHAR	40	0	Description of Ingredient or Declaration Group
13	COMPCAT	☐	RMSLE_COMPCAT	RMSLD_CHAR10	CHAR	10	0	Component Type of Ingredient
14	FLG_SHOW_ITEM	☐	RMSLE_FLG_SHOW_ITEM	BOOLE	CHAR	1	0	Display Label List Item on Label
15	FLG_VISBL_CONT	☐	RMSLE_FLG_VISBL_CONT	BOOLE	CHAR	1	0	Display Proportion
16	STM_OBJNO	☐	RMSLE_STM_OBJNO	RMSLD_OBJNO	NUMC	12	0	Statement Reference	RMSLA_STMT
17	.INCLUDE	☐				0	0
18	PARENT_NO	☐	RMSLE_PARENT_NO	RMSLD_CNT	NUMC	12	0	Previous State
19	FLG_HIDDEN	☐	RMSLE_FLG_HIDDEN	BOOLE	CHAR	1	0	Hidden Item
20	ORIG_MASTER_NO	☐	RMSLE_MASTER_NO	RMSLD_CNT	NUMC	12	0	Superior Element
21	ORIG_POSNR	☐	RMSLE_POSNR	RMSLD_CNT	NUMC	12	0	Item Number in a Label Set List
22	VALUE	☐	RMSLE_VALUE		FLTP	16	16	Proportion
23	UNIT	☐	RMSLE_UNIT	MEINS	UNIT	3	0	Unit of Measure	*
24	DECIMALS	☐	RMSLE_DECIMALS	RMSLD_NUMC01	NUMC	1	0	Decimal Places
25	VALUE_DECL	☐	RMSLE_VALUE		FLTP	16	16	Proportion
26	UNIT_DECL	☐	RMSLE_UNIT	MEINS	UNIT	3	0	Unit of Measure	*
27	DECIMALS_DECL	☐	RMSLE_DECIMALS	RMSLD_NUMC01	NUMC	1	0	Decimal Places
28	FLG_INITIAL_DECL	☐	RMSLE_FLG_INITIAL_DECL	BOOLE	CHAR	1	0	Declared Value Is Initial
29	MASTER_TYPE	☐	RMSLE_MASTER_TYPE	RMSLD_ITEM_TYPE	CHAR	1	0	Category for the Master of an Item in the Ingredient List
30	FLG_UNDO	☐	RMSLE_FLG_UNDO	BOOLE	CHAR	1	0	Undo Possible
31	ORIGINAL_VALUE	☐	RMSLE_VALUE		FLTP	16	16	Proportion
32	FLG_CUT_UNDO	☐	RMSLE_FLG_UNDO	BOOLE	CHAR	1	0	Undo Possible
33	LINEMODE	☐	RMSLE_LINEMODE	RMSLD_CHAR1	CHAR	1	0	Edit Mode

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RMSLS_LO_INIT	AENNR	RMSLA_INLI	AENNR
2	RMSLS_LO_INIT	LABELID	RMSLA_INLI	LABELID
3	RMSLS_LO_INIT	MANDT	T000	MANDT
4	RMSLS_LO_INIT	MASTER_NO	RMSLA_INIT	ITEMCNT
5	RMSLS_LO_INIT	STM_OBJNO	RMSLA_STMT	STM_OBJNO

History

Last changed by/on	SAP	20110901
SAP Release Created in	700
