SAP ABAP Table RMSAS_QMHDR_VIEW (RMS: ATL QM View Structure for General Recipe, Header Level)
Hierarchy
☛
EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSATLQM (Package) RMS-ATL: QM Integration
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSATLQM (Package) RMS-ATL: QM Integration
Basic Data
Table Category | INTTAB | Structure |
Structure | RMSAS_QMHDR_VIEW | Table Relationship Diagram |
Short Description | RMS: ATL QM View Structure for General Recipe, Header Level |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | RMS: ATL QM Struct. Module, Oper. Level: Sample-Drawing Takt | |||||
2 | BEZUGSTP | RMSAE_INSP_REPT | RMSAD_INSP_RATE_TYPE | CHAR | 1 | 0 | Reference Type for Physical-Sample Drawings | ||
3 | RASTZEHT | QRASTZEHT | MEINS | UNIT | 3 | 0 | Time Unit | T006 | |
4 | RASTZFAK | QRASTZFAK | QPROBEFAK | DEC | 5 | 2 | Time Factor | ||
5 | RASTEREH | QRASTEREH | MEINS | UNIT | 3 | 0 | Grid Unit of Measure | T006 | |
6 | RASTMENG | QRASTMENG | MENG13 | QUAN | 13 | 3 | Quantity Between Two Inspections | ||
7 | MAXWEIGHT | RMSAE_MAXWGHT | QMERKKLAS | CHAR | 2 | 0 | Maximum Weighting of the Characteristic in the Inspection | TQ17A | |
8 | MAXWGHTICON | RMSAE_MAXICON | ICON | CHAR | 4 | 0 | Icon for Maximum Characteristic Weighting | * |

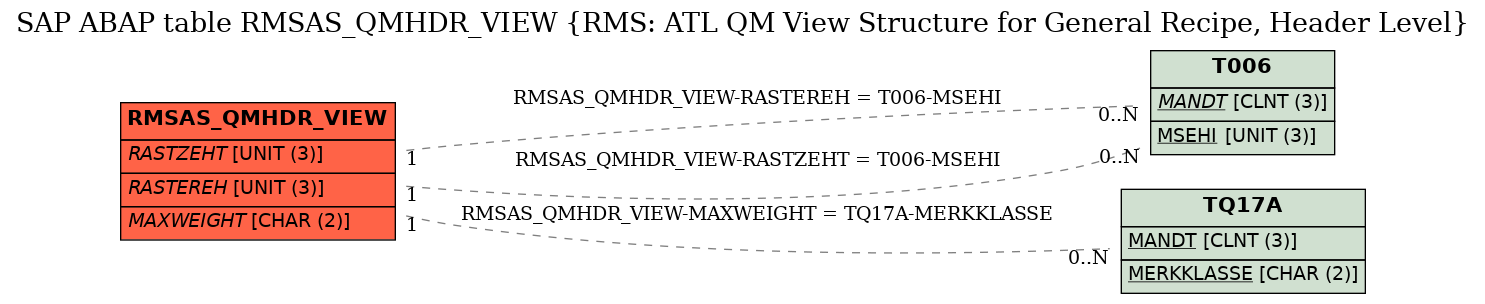

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | RMSAS_QMHDR_VIEW | MAXWEIGHT | TQ17A | MERKKLASSE | 1 | CN | |
2 | RMSAS_QMHDR_VIEW | RASTEREH | T006 | MSEHI | 1 | CN | |
3 | RMSAS_QMHDR_VIEW | RASTZEHT | T006 | MSEHI | 1 | CN |
History
Last changed by/on | SAP | 20031212 |
SAP Release Created in | 471 |
