SAP ABAP Table REQ_SET_DETAIL (Requirement Set Detail)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-RB (Application Component) Rebate Processing
     ⤷ REQUIREMENT_SET (Package) Requirement Sets

Basic Data

Table Category	TRANSP	Transparent table

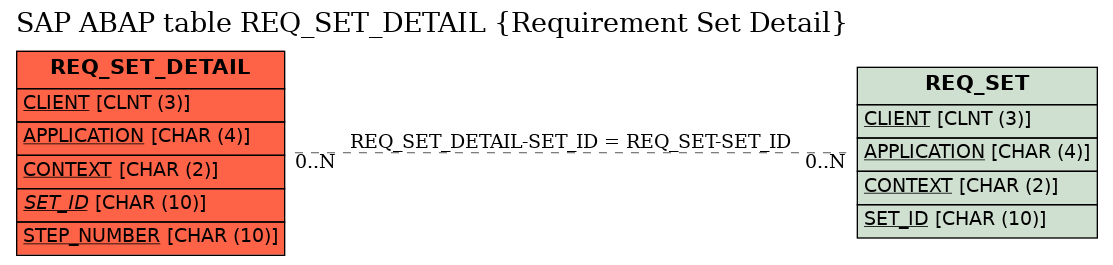

Transparent table	REQ_SET_DETAIL	Table Relationship Diagram
Short Description	Requirement Set Detail

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	APPLICATION	☑	REQ_APPLICATION	REQ_APPLICATION	CHAR	4	0	Application
3	CONTEXT	☑	REQ_CONTEXT	REQ_CONTEXT	CHAR	2	0	Context
4	SET_ID	☑	REQ_SET_ID	REQ_SET_ID	CHAR	10	0	Requirement Set ID	REQ_SET
5	STEP_NUMBER	☑	REQ_STEP_NUMBER	REB_STEP_NUMBER	CHAR	10	0	Level Number
6	TYPE	☐	REQ_ATTRIBUTE_TYPE	REQ_ATTRIBUTE_TYPE	CHAR	2	0	Attribute Type
7	NAME	☐	REQ_ATTRIBUTE_NAME	REQ_ATTRIBUTE_NAME	CHAR	30	0	Attribute Name
8	SIGN	☐	BAPISIGN	BAPISIGN	CHAR	1	0	Inclusion/exclusion criterion SIGN for range tables
9	OPT	☐	BAPIOPTION	BAPIOPTION	CHAR	2	0	Selection operator OPTION for range tables
10	VALUE	☐	REQ_ATTRIBUTE_VALUE	REQ_ATTRIBUTE_VALUE	CHAR	50	0	Attribute Value

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	REQ_SET_DETAIL	SET_ID	REQ_SET	SET_ID	KEY

History

Last changed by/on	SAP	20051219
SAP Release Created in	500
