SAP ABAP Table REQ_ALV_OUTPUT_S (Output Structure for ALV)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-RB (Application Component) Rebate Processing
     ⤷ REQUIREMENT_SET (Package) Requirement Sets

Basic Data

Table Category	INTTAB	Structure
Structure	REQ_ALV_OUTPUT_S	Table Relationship Diagram
Short Description	Output Structure for ALV

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Requirement Set Detail
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	APPLICATION	☐	REQ_APPLICATION	REQ_APPLICATION	CHAR	4	0	Application
4	CONTEXT	☐	REQ_CONTEXT	REQ_CONTEXT	CHAR	2	0	Context
5	SET_ID	☐	REQ_SET_ID	REQ_SET_ID	CHAR	10	0	Requirement Set ID	REQ_SET
6	STEP_NUMBER	☐	REQ_STEP_NUMBER	REB_STEP_NUMBER	CHAR	10	0	Level Number
7	TYPE	☐	REQ_ATTRIBUTE_TYPE	REQ_ATTRIBUTE_TYPE	CHAR	2	0	Attribute Type
8	NAME	☐	REQ_ATTRIBUTE_NAME	REQ_ATTRIBUTE_NAME	CHAR	30	0	Attribute Name
9	SIGN	☐	BAPISIGN	BAPISIGN	CHAR	1	0	Inclusion/exclusion criterion SIGN for range tables
10	OPT	☐	BAPIOPTION	BAPIOPTION	CHAR	2	0	Selection operator OPTION for range tables
11	VALUE	☐	REQ_ATTRIBUTE_VALUE	REQ_ATTRIBUTE_VALUE	CHAR	50	0	Attribute Value
12	OPT_ICON	☐	RSSELOPUSH	RSSELOPUSH	CHAR	40	0	Pushbutton for selection option
13	TYPE_ICON	☐	RSSELOPUSH	RSSELOPUSH	CHAR	40	0	Pushbutton for selection option
14	NAME_TEXT	☐	AS4TEXT	AS4TEXT	CHAR	60	0	Short Description of Repository Objects
15	VALUE_TEXT	☐	AS4TEXT	AS4TEXT	CHAR	60	0	Short Description of Repository Objects
16	CELL_STYLE	☐	LVC_T_STYL		TTYP	0	0

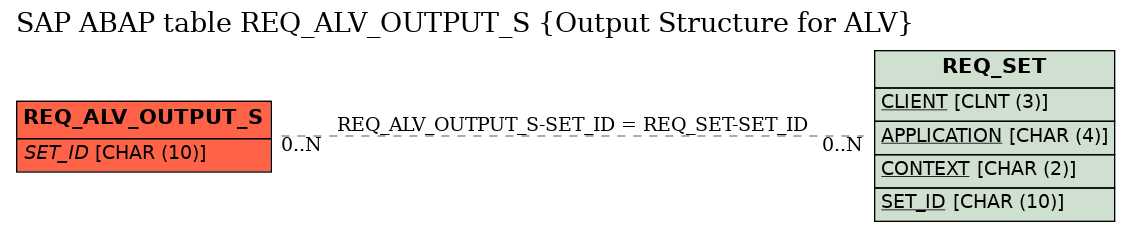

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	REQ_ALV_OUTPUT_S	SET_ID	REQ_SET	SET_ID	KEY

History

Last changed by/on	SAP	20051219
SAP Release Created in	500
