SAP ABAP Table RELMC_LM_SETTINGS_X (General Settings in LUM and Additional Fields (TIVLMSET))

Hierarchy

☛ EA-FIN (Software Component) EA-FIN
   ⤷ RE-FX-LM (Application Component) Land Use Management
     ⤷ RE_LM_CA (Package) RE: Cross Application LUM

Basic Data

Table Category	INTTAB	Structure

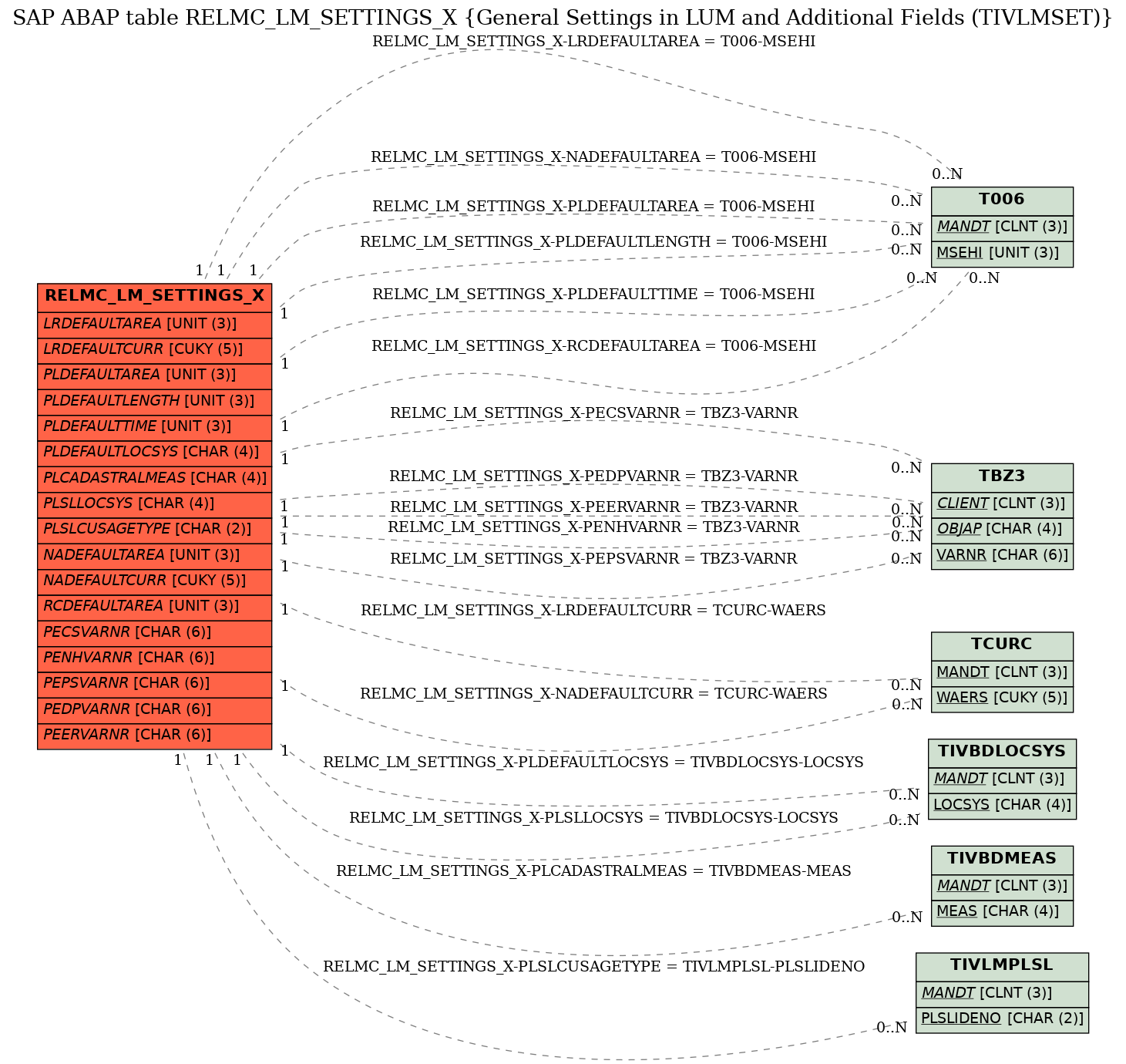

Structure	RELMC_LM_SETTINGS_X	Table Relationship Diagram
Short Description	General Settings in LUM and Additional Fields (TIVLMSET)

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	General Settings in LUM (TIVLMSET)
2	.INCLUDE	☐				0	0	General Settings in LUM
3	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	DUMMYKEY	☐	RECADUMMYKEY	CHAR1	CHAR	1	0	Tech: Help Key (Contents Initial)
5	.INCLUDE	☐				0	0	General Settings for Land Registers
6	LRDEFAULTAREA	☐	RELMLRDEFAULTAREA	MEINS	UNIT	3	0	Land Register: Default for Area Units	T006
7	LRDEFAULTCURR	☐	RELMLRDEFAULTCURR	WAERS	CUKY	5	0	Land Register: Default Currency	TCURC
8	.INCLUDE	☐				0	0	General Settings for Parcels
9	PLDEFAULTAREA	☐	RELMPLDEFAULTAREA	MEINS	UNIT	3	0	Parcel of Land: Default for Area Units	T006
10	PLDEFAULTLENGTH	☐	RELMPLDEFAULTLENGTH	MEINS	UNIT	3	0	Parcel of Land: Default for Units of Length	T006
11	PLDEFAULTTIME	☐	RELMPLDEFAULTTIME	MEINS	UNIT	3	0	Parcel of Land: Default for Units of Time	T006
12	PLDEFAULTLOCSYS	☐	RELMPLDEFAULTLOCSYS	REBDLOCSYS	CHAR	4	0	ID of Standard Location Structure for Parcels	TIVBDLOCSYS
13	PLCADASTRALMEAS	☐	RELMPLCADASTRALMEAS	REBDMEAS	CHAR	4	0	Measurement Type for the Cadastral Area	TIVBDMEAS
14	PLCONTRACTMEAS	☐	RELMPLCONTRACTMEAS	REBDMEAS	CHAR	4	0	Measurement Type for Parcel Subarea in Contract	*
15	PLSLLOCSYS	☐	RELMPLSLLOCSYS	REBDLOCSYS	CHAR	4	0	Hierarchical Location Structure for Overlays	TIVBDLOCSYS
16	PLSLLOCLEVEL	☐	RELMPLSLLOCLEVEL	REBDLOCLEVEL	NUMC	2	0	Level of Location Structure for Overlays
17	PLSLCUSAGETYPE	☐	RELMPLSLCUSAGETYPE	RELMPLSLIDENO	CHAR	2	0	Overlay for Cadastral Usage Types	TIVLMPLSL
18	PLUSESIMPLEPLNO	☐	RELMPLUSESIMPLEPLNO	RECABOOL	CHAR	1	0	Use Simplified Parcel Number
19	.INCLUDE	☐				0	0	General Settings for Parcels
20	NADEFAULTAREA	☐	RELMNADEFAULTAREA	MEINS	UNIT	3	0	Default Area Unit for Notice of Assessment	T006
21	NADEFAULTCURR	☐	RELMNADEFAULTCURR	WAERS	CUKY	5	0	Default Currency for Notice of Assessment	TCURC
22	.INCLUDE	☐				0	0	General Settings for Parcel Update
23	RCDEFAULTAREA	☐	RELMRCDEFAULTAREA	MEINS	UNIT	3	0	Parcel Update: Default for Area Unit	T006
24	.INCLUDE	☐				0	0	General Settings for Other Public Registers
25	PECSVARNR	☐	RELMPECSVARNR	BU_VARNR	CHAR	6	0	Other Public Register: Contamination Screen Sequence	TBZ3
26	PENHVARNR	☐	RELMPENHVARNR	BU_VARNR	CHAR	6	0	Other Public Register: Non-Hazardous Waste Screen Sequence	TBZ3
27	PEPSVARNR	☐	RELMPEPSVARNR	BU_VARNR	CHAR	6	0	Other Public Register: Site Protection Screen Sequence	TBZ3
28	PEDPVARNR	☐	RELMPEDPVARNR	BU_VARNR	CHAR	6	0	Other Public Register: Development Plan Screen Sequence	TBZ3
29	PEERVARNR	☐	RELMPEERVARNR	BU_VARNR	CHAR	6	0	Other Public Register: Easement Register Screen Sequence	TBZ3
30	PEDPDEFLOCSYS	☐	RELMPEDPDEFAULTLOCSYS	REBDLOCSYS	CHAR	4	0	ID of Standard Location Structure for Development Planning	*
31	PEERDEFLOCSYS	☐	RELMPEERDEFAULTLOCSYS	REBDLOCSYS	CHAR	4	0	ID of Standard Location Structure for Easement Registers	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	RELMC_LM_SETTINGS_X	LRDEFAULTAREA	T006	MSEHI	REF	1	CN
2	RELMC_LM_SETTINGS_X	LRDEFAULTCURR	TCURC	WAERS	REF	1	CN
3	RELMC_LM_SETTINGS_X	NADEFAULTAREA	T006	MSEHI	REF	1	CN
4	RELMC_LM_SETTINGS_X	NADEFAULTCURR	TCURC	WAERS	REF	1	CN
5	RELMC_LM_SETTINGS_X	PECSVARNR	TBZ3	VARNR	KEY	1	CN
6	RELMC_LM_SETTINGS_X	PEDPVARNR	TBZ3	VARNR	KEY	1	CN
7	RELMC_LM_SETTINGS_X	PEERVARNR	TBZ3	VARNR	KEY	1	CN
8	RELMC_LM_SETTINGS_X	PENHVARNR	TBZ3	VARNR	KEY	1	CN
9	RELMC_LM_SETTINGS_X	PEPSVARNR	TBZ3	VARNR	KEY	1	CN
10	RELMC_LM_SETTINGS_X	PLCADASTRALMEAS	TIVBDMEAS	MEAS	REF	1	CN
11	RELMC_LM_SETTINGS_X	PLDEFAULTAREA	T006	MSEHI	REF	1	CN
12	RELMC_LM_SETTINGS_X	PLDEFAULTLENGTH	T006	MSEHI	REF	1	CN
13	RELMC_LM_SETTINGS_X	PLDEFAULTLOCSYS	TIVBDLOCSYS	LOCSYS	REF	1	CN
14	RELMC_LM_SETTINGS_X	PLDEFAULTTIME	T006	MSEHI	REF	1	CN
15	RELMC_LM_SETTINGS_X	PLSLCUSAGETYPE	TIVLMPLSL	PLSLIDENO	REF	1	CN
16	RELMC_LM_SETTINGS_X	PLSLLOCSYS	TIVBDLOCSYS	LOCSYS	REF	1	CN
17	RELMC_LM_SETTINGS_X	RCDEFAULTAREA	T006	MSEHI	REF	1	CN

History

Last changed by/on	SAP	20100310
SAP Release Created in	600
