SAP ABAP Table QMM_LORE (QMM: Outgoing Relationships of Logical Info Objects)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ KM-KW (Application Component) Knowledge Warehouse
     ⤷ SQM (Package) Temporary Development Class for QM Manuals

Basic Data

Table Category	TRANSP	Transparent table

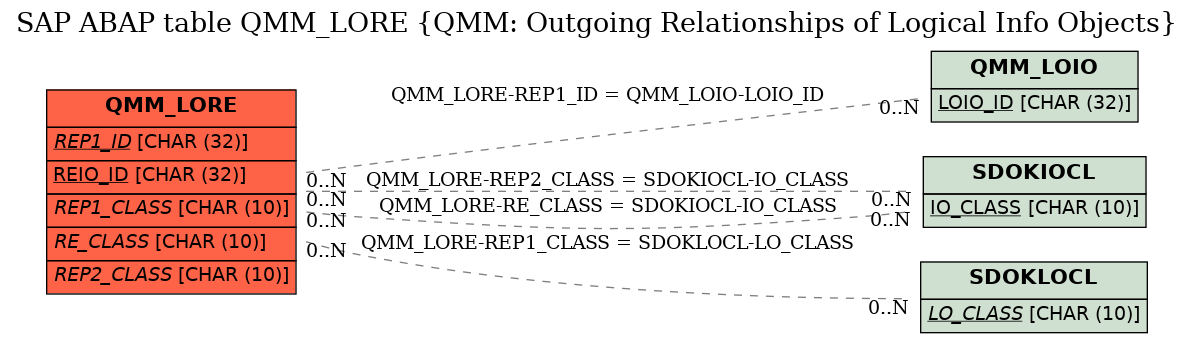

Transparent table	QMM_LORE	Table Relationship Diagram
Short Description	QMM: Outgoing Relationships of Logical Info Objects

Delivery and Maintenance

Pool/cluster
Delivery Class	E	Control table, SAP and customer have separate key areas
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REP1_ID	☑	SDOK_LOID	SDOK_DOCID	CHAR	32	0	Logical document	QMM_LOIO
2	REIO_ID	☑	SDOK_REID	SDOK_DOCID	CHAR	32	0	Relationship between logical and physical documents
3	REP1_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKLOCL
4	RE_CLASS	☐	SDOK_RECL	SDOK_CLASS	CHAR	10	0	Relationship class	SDOKIOCL
5	REP2_ID	☐	SDOK_DOCID	SDOK_DOCID	CHAR	32	0	ID for documents and relations
6	REP2_CLASS	☐	SDOK_CLASS	SDOK_CLASS	CHAR	10	0	Document class	SDOKIOCL
7	.INCLUDE	☐				0	0	SDOK: Fields for relationship instances
8	CREA_USER	☐	SDOK_CRUSR	USERNAME	CHAR	12	0	Created by
9	CREA_TIME	☐	SDOK_CRTST	SDOK_TSTMP	NUMC	14	0	Creation time (UTC)
10	CHNG_USER	☐	SDOK_CHUSR	USERNAME	CHAR	12	0	Last changed by
11	CHNG_TIME	☐	SDOK_CHTST	SDOK_TSTMP	NUMC	14	0	Time of change (UTC)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QMM_LORE	REP1_CLASS	SDOKLOCL	LO_CLASS	KEY	CN
2	QMM_LORE	REP1_ID	QMM_LOIO	LOIO_ID	KEY	CN
3	QMM_LORE	REP2_CLASS	SDOKIOCL	IO_CLASS	KEY	CN
4	QMM_LORE	RE_CLASS	SDOKIOCL	IO_CLASS	KEY	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in
