SAP ABAP Table QAPST (Control chart for the inspection point, track)

Hierarchy

☛ SAP_APPL (Software Component) Logistics and Accounting
   ⤷ QM-QC-IS (Application Component) Information System
     ⤷ QG01 (Package) QM quality inspection analysis

Basic Data

Table Category	INTTAB	Structure

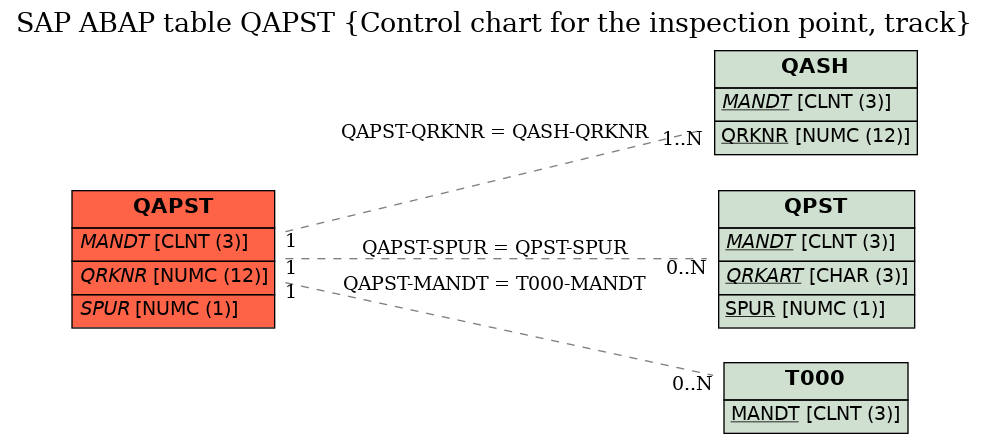

Structure	QAPST	Table Relationship Diagram
Short Description	Control chart for the inspection point, track

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Control chart track
2	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	QRKNR	☐	QQRKNR	QQRKNR	NUMC	12	0	Control Chart Number	QASH
4	SPUR	☐	QQRKSPUR	QQRKSPUR	NUMC	1	0	Control Chart Track	QPST
5	OEG	☐	QQRKOEG	QSTATWERT	FLTP	16	16	Upper Action Limit of a Control Chart
6	UEG	☐	QQRKUEG	QSTATWERT	FLTP	16	16	Lower Action Limit of a Control Chart
7	OWG	☐	QQRKOWG	QSTATWERT	FLTP	16	16	Upper Warning Limit of a Control Chart
8	UWG	☐	QQRKOWG	QSTATWERT	FLTP	16	16	Upper Warning Limit of a Control Chart
9	MIL	☐	QQRKMIL	QSTATWERT	FLTP	16	16	Center Line of a Control Chart
10	NIOEG	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
11	NIUEG	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
12	NIOWG	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
13	NIUWG	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
14	NIMIL	☐	QNINITIAL	QKZ	CHAR	1	0	Value Not Initial if Set
15	MANOEG	☐	QQRKRGMAN	QQRKRGMAN	CHAR	1	0	Control Limits Changed Manually
16	MANOWG	☐	QQRKRGMAN	QQRKRGMAN	CHAR	1	0	Control Limits Changed Manually
17	MANMIL	☐	QQRKRGMAN	QQRKRGMAN	CHAR	1	0	Control Limits Changed Manually
18	MANUWG	☐	QQRKRGMAN	QQRKRGMAN	CHAR	1	0	Control Limits Changed Manually
19	MANUEG	☐	QQRKRGMAN	QQRKRGMAN	CHAR	1	0	Control Limits Changed Manually
20	ENAME	☐	ERNAM	USNAM	CHAR	12	0	Name of Person who Created the Object
21	EDATUM	☐	ERDAT	DATUM	DATS	8	0	Date on which the record was created
22	EZEIT	☐	QZEITERSTL	QZEIT	TIMS	6	0	Time at which data record was created
23	ANAME	☐	AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
24	ADATUM	☐	AEDAT	DATUM	DATS	8	0	Last Changed On
25	AZEIT	☐	QZEITAEND	QZEIT	TIMS	6	0	Time at which data record was last changed

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	QAPST	MANDT	T000	MANDT	KEY	1	CN
2	QAPST	QRKNR	QASH	QRKNR	KEY	1	N
3	QAPST	SPUR	QPST	SPUR	KEY	1	CN

History

Last changed by/on	SAP	19970812
SAP Release Created in
