SAP ABAP Table QALTPPST (Control chart for the partial lot, track)
Hierarchy
SAP_APPL (Software Component) Logistics and Accounting
   QM-QC-IS (Application Component) Information System
     QG01 (Package) QM quality inspection analysis
Basic Data
Table Category INTTAB    Structure

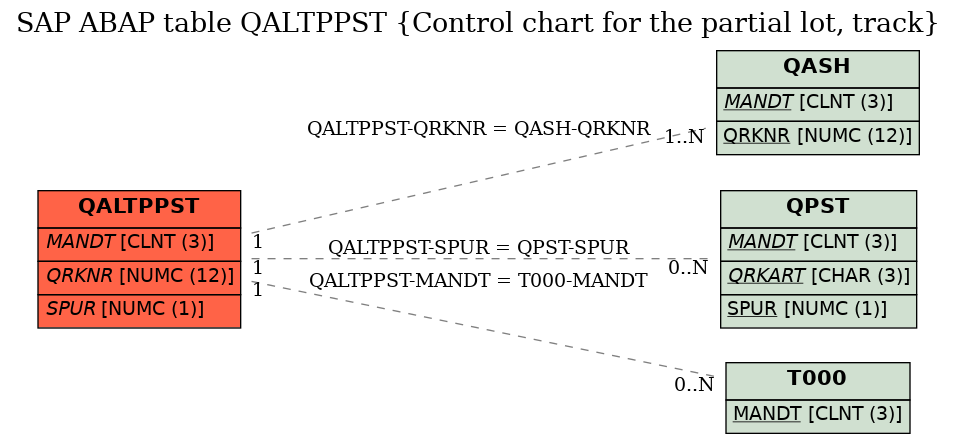

Structure QALTPPST   Table Relationship Diagram
Short Description Control chart for the partial lot, track
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type
Length Decimal
Places
Short Description Check
table
1 .INCLUDE       0   0   Control chart track
2 MANDT MANDT MANDT CLNT 3   0   Client T000
3 QRKNR QQRKNR QQRKNR NUMC 12   0   Control Chart Number QASH
4 SPUR QQRKSPUR QQRKSPUR NUMC 1   0   Control Chart Track QPST
5 OEG QQRKOEG QSTATWERT FLTP 16   16   Upper Action Limit of a Control Chart
6 UEG QQRKUEG QSTATWERT FLTP 16   16   Lower Action Limit of a Control Chart
7 OWG QQRKOWG QSTATWERT FLTP 16   16   Upper Warning Limit of a Control Chart
8 UWG QQRKOWG QSTATWERT FLTP 16   16   Upper Warning Limit of a Control Chart
9 MIL QQRKMIL QSTATWERT FLTP 16   16   Center Line of a Control Chart
10 NIOEG QNINITIAL QKZ CHAR 1   0   Value Not Initial if Set
11 NIUEG QNINITIAL QKZ CHAR 1   0   Value Not Initial if Set
12 NIOWG QNINITIAL QKZ CHAR 1   0   Value Not Initial if Set
13 NIUWG QNINITIAL QKZ CHAR 1   0   Value Not Initial if Set
14 NIMIL QNINITIAL QKZ CHAR 1   0   Value Not Initial if Set
15 MANOEG QQRKRGMAN QQRKRGMAN CHAR 1   0   Control Limits Changed Manually
16 MANOWG QQRKRGMAN QQRKRGMAN CHAR 1   0   Control Limits Changed Manually
17 MANMIL QQRKRGMAN QQRKRGMAN CHAR 1   0   Control Limits Changed Manually
18 MANUWG QQRKRGMAN QQRKRGMAN CHAR 1   0   Control Limits Changed Manually
19 MANUEG QQRKRGMAN QQRKRGMAN CHAR 1   0   Control Limits Changed Manually
20 ENAME ERNAM USNAM CHAR 12   0   Name of Person who Created the Object
21 EDATUM ERDAT DATUM DATS 8   0   Date on which the record was created
22 EZEIT QZEITERSTL QZEIT TIMS 6   0   Time at which data record was created
23 ANAME AENAM USNAM CHAR 12   0   Name of Person Who Changed Object
24 ADATUM AEDAT DATUM DATS 8   0   Last Changed On
25 AZEIT QZEITAEND QZEIT TIMS 6   0   Time at which data record was last changed
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 QALTPPST MANDT T000 MANDT KEY 1 CN
2 QALTPPST QRKNR QASH QRKNR KEY 1 N
3 QALTPPST SPUR QPST SPUR KEY 1 CN
History
Last changed by/on SAP  19970812
SAP Release Created in
