SAP ABAP Table PNDREL (Positionsknotenbeziehung in der PVS)

Hierarchy

☛ ECC-DIMP (Software Component) DIMP
   ⤷ LO-MD-PPE (Application Component) Integrated Product and Process Engineering
     ⤷ CPVS (Package) PPE Engine

Basic Data

Table Category	TRANSP	Transparent table

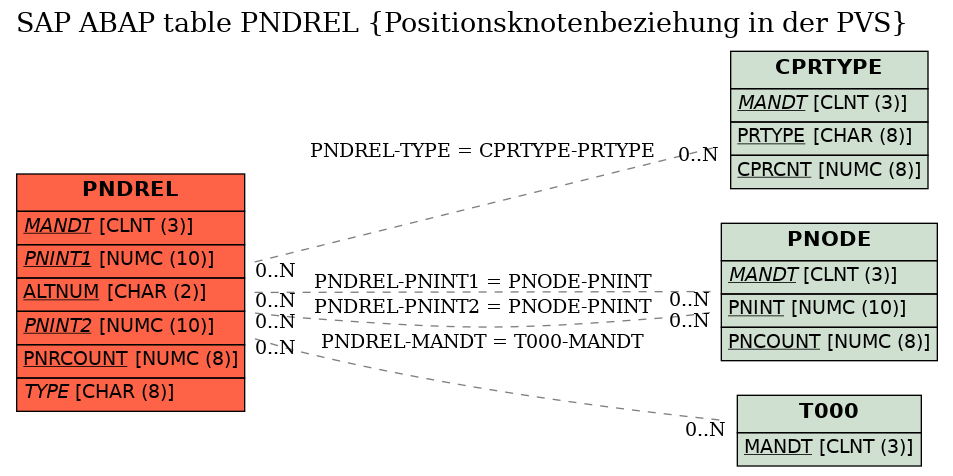

Transparent table	PNDREL	Table Relationship Diagram
Short Description	Positionsknotenbeziehung in der PVS

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	PNINT1	☑	PVS_PNINT	PNINT	NUMC	10	0	interne Positionsknotennummer	PNODE
3	ALTNUM	☑	PVS_ALTNUM	PVS_ALTNR	CHAR	2	0	Alternative of an iPPE Node
4	PNINT2	☑	PVS_PNINT	PNINT	NUMC	10	0	interne Positionsknotennummer	PNODE
5	PNRCOUNT	☑	PVS_COUNT	NUMC8	NUMC	8	0	Internal Counter for iPPE Objects
6	TYPE	☐	PVS_PNREL_TYPE	PVS_PNREL_TYPE	CHAR	8	0	iPPE Relationship Type	CPRTYPE
7	.INCLUDE	☐				0	0	Administrative Data PVS Tables
8	CREADAT	☐	PVS_ANDAT	DATUM	DATS	8	0	Date of Application
9	CREABY	☐	PVS_ANNAM	USNAM	CHAR	12	0	User who created record
10	CHNGDAT	☐	PVS_AEDAT	DATUM	DATS	8	0	Date of Last Change
11	CHNGBY	☐	PVS_AENAM	USNAM	CHAR	12	0	Name of Person Who Changed Object
12	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	PNDREL	MANDT	T000	MANDT	KEY
2	PNDREL	PNINT1	PNODE	PNINT	KEY
3	PNDREL	PNINT2	PNODE	PNINT	KEY
4	PNDREL	TYPE	CPRTYPE	PRTYPE	KEY

History

Last changed by/on	SAP	20050409
SAP Release Created in
