SAP ABAP Table OBL_S_PLNK (SOBL: Relationship with Attribute References)
Hierarchy
☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SRV-GBT-OBL (Application Component) General Object Relations
     ⤷ SOBL (Package) Generic Relation Service for Business Objects
Basic Data
Table Category INTTAB    Structure

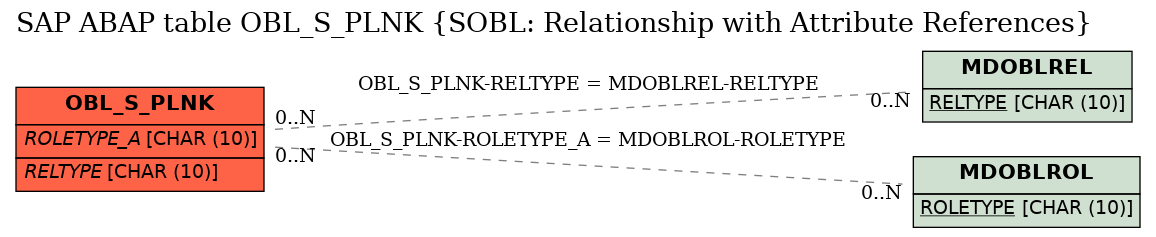

Structure OBL_S_PLNK   Table Relationship Diagram
Short Description SOBL: Relationship with Attribute References
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   SOBL: Runtime Relationship Record
2 BRELGUID OS_GUID SYSUUID RAW 16   0   Globally Unique Identifier
3 ROLETYPE_A OBLROLTYPE OBLROLTYPE CHAR 10   0   Role That an Object Takes in the Relationship MDOBLROL
4 INSTID_A SIBFBORIID SIBFBORIID CHAR 70   0   Instance Ident. in BOR Compat. Persistent Object References
5 TYPEID_A SIBFTYPEID SIBFTYPEID CHAR 32   0   Type of Objects in Persistent Object References
6 CATID_A SIBFCATID SIBFCATID CHAR 2   0   Category of Objects in Persistent Object References
7 LOGSYS_A LOGSYS LOGSYS CHAR 10   0   Logical system *
8 ROLETYPE_B OBLROLTYPE OBLROLTYPE CHAR 10   0   Role That an Object Takes in the Relationship *
9 INSTID_B SIBFBORIID SIBFBORIID CHAR 70   0   Instance Ident. in BOR Compat. Persistent Object References
10 TYPEID_B SIBFTYPEID SIBFTYPEID CHAR 32   0   Type of Objects in Persistent Object References
11 CATID_B SIBFCATID SIBFCATID CHAR 2   0   Category of Objects in Persistent Object References
12 LOGSYS_B LOGSYS LOGSYS CHAR 10   0   Logical system *
13 RELTYPE OBLRELTYPE OBLRELTYPE CHAR 10   0   Relationship type MDOBLREL
14 UTCTIME TZNTSTMPS TZNTSTMPS DEC 15   0   UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
15 .INCLUDE       0   0   Old Relationship Domains
16 RELGUIDOLD BINRELID SYSUUID_22 CHAR 22   0   Object Relationship Service : GUID binary link
17 RELTYPEOLD BINRELTYP BINRELTYP CHAR 4   0   Relationship type *
18 PROPS OBL_T_IPRO   TTYP 0   0
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 OBL_S_PLNK RELTYPE MDOBLREL RELTYPE
2 OBL_S_PLNK ROLETYPE_A MDOBLROL ROLETYPE
History
Last changed by/on SAP  20010130
SAP Release Created in 50A
