SAP ABAP Table MKTCRM_MKTPL_ATTR (Change document structure; generated by RSSCD000)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MKT-MPL (Application Component) Marketing Planner
     ⤷ CRM_MKTPL (Package) CRM Marketing Planning - User Interfaces

Basic Data

Table Category	INTTAB	Structure

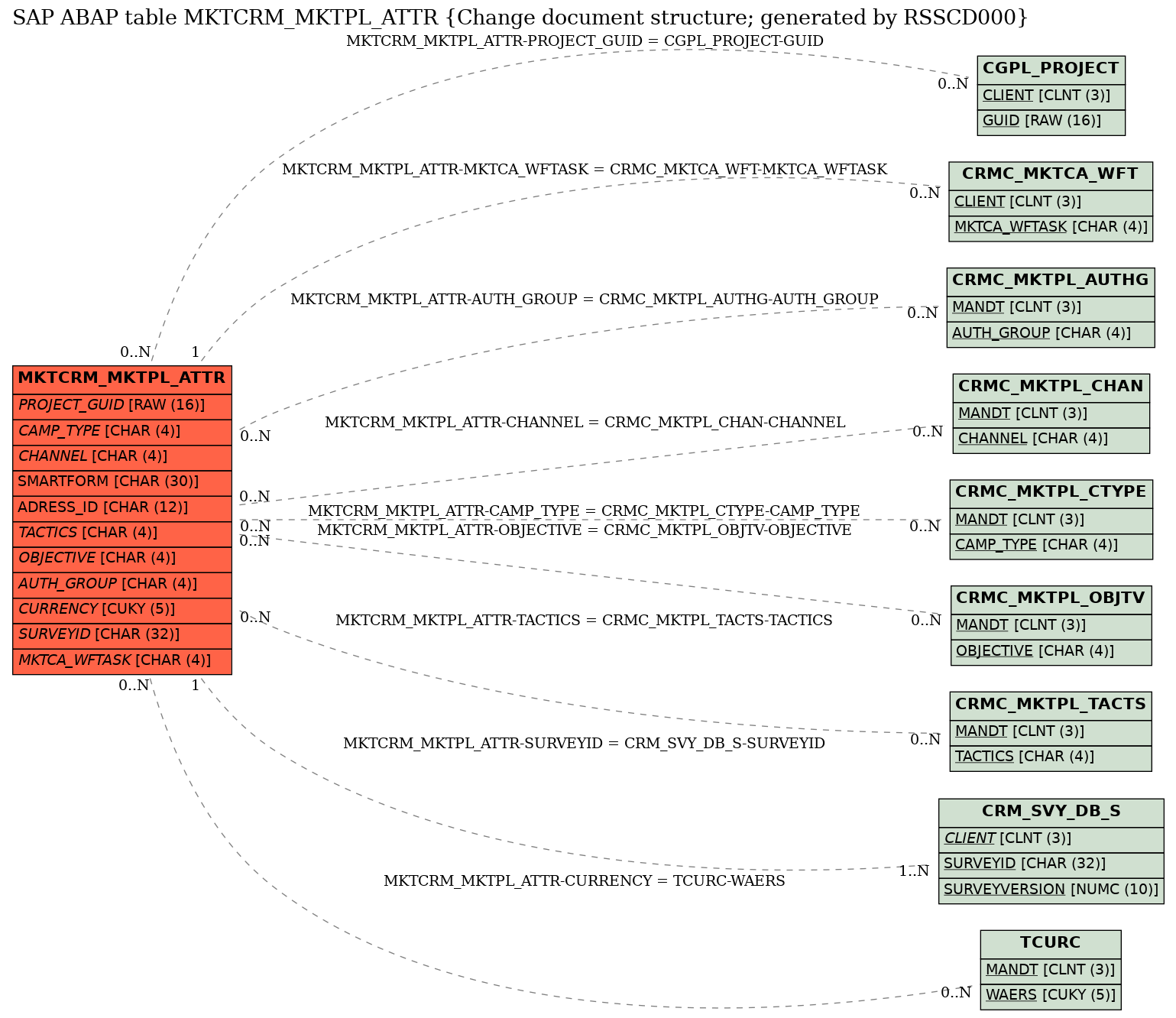

Structure	MKTCRM_MKTPL_ATTR	Table Relationship Diagram
Short Description	Change document structure; generated by RSSCD000

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Marketing Planner: Marketing plan/campaign attributes
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
4	PROJECT_GUID	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts	CGPL_PROJECT
5	.INCLUDE	☐				0	0	CRM Marketing Planning: Include Structure Appl. Attrtibutes
6	CAMP_TYPE	☐	CRM_MKTPL_CAMPTYPE	CRM_MKTPL_CAMPTYPE	CHAR	4	0	Type	CRMC_MKTPL_CTYPE
7	CHANNEL	☐	CRM_MKTPL_CHANNEL	CRM_MKTPL_CHANNEL	CHAR	4	0	ID of Communication Medium	CRMC_MKTPL_CHAN
8	RESPONSIBLE	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
9	SMARTFORM	☐	CRMT_MKTPL_EMAIL_FORM	TDSFNAME	CHAR	30	0	Form for E-Mail	*
10	ADRESS_ID	☐	CRMT_IM_E_ID	CHAR12	CHAR	12	0	Identification for an E-mail Address	*
11	SCRIPT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
12	SHORTCUT	☐	CRMT_MKTPL_CAMPAIGN_SHORTCUT	CHAR4	CHAR	4	0	Campaign Code
13	MAIL_FORM	☐	CRMT_MKTPL_MAIL_FORM	TDSFNAME	CHAR	30	0	Form for Sending a Letter	*
14	FAX_FORM	☐	CRMT_MKTPL_FAX_FORM	TDSFNAME	CHAR	30	0	Form for Fax	*
15	PRINT_ID	☐	CRMT_IM_PRINT_ID	CHAR12	CHAR	12	0	Profile for Print Parameters
16	SEND_PARTNER	☐	CRM_IM_SEND_PARTNER	BU_PARTNER	CHAR	10	0	Business partner for Sender Address Determination	*
17	SMS_FORM	☐	CRMT_MKTPL_SMS_FORM	TDSFNAME	CHAR	30	0	Form for SMS/Pager Services	*
18	TACTICS	☐	CRM_MKTPL_TACTICS	CRM_MKTPL_TACTICS	CHAR	4	0	Tactic	CRMC_MKTPL_TACTS
19	OBJECTIVE	☐	CRM_MKTPL_OBJECTIVE	CRM_MKTPL_OBJECTIVE	CHAR	4	0	Objective	CRMC_MKTPL_OBJTV
20	AUTH_GROUP	☐	CRM_MKTPL_AUTH_GROUP	CRM_MKTPL_AUTH_GROUP	CHAR	4	0	Authorization Group	CRMC_MKTPL_AUTHG
21	ORIG_SYSTEM	☐	CRM_MKTPL_ORIG_SYST	CHAR1	CHAR	1	0	CRM Marketing Planning - Campaign Original System
22	SPICE_SCRIPT	☐	CRM_IC_SCRNAME	CRM_IC_XMLNAME	CHAR	32	0	Name of Interaction Center (IC) WebClient Script
23	ACTION_PROFILE	☐	CRM_MKTPL_ACTION_PROFILE	PPFDCNTXT	CHAR	30	0	ID of Action Profile	*
24	CAMPAIGN_LINK	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
25	CURRENCY	☐	CRM_MKTPL_CUKY	WAERS	CUKY	5	0	MKTPL: Currency Object	TCURC
26	NO_R3_INT	☐	CRM_MKTPL_NO_R3_INT	CHAR1	CHAR	1	0	Marketing Planning: Object Not Integrated into ERP PS
27	MKT_ORG	☐	CRM_MKTPL_MORG	HROBJEC_14	CHAR	14	0	Marketing Organization
28	FILE_EXPORT_FORM	☐	CRMT_IM_EXPORT_FORM	TDSFNAME	CHAR	30	0	File Export Form	*
29	.INCLUDE	☐				0	0	Structure Additional Attributes for Campaign Automation
30	CPT_TYPE	☐	CRMT_MKTCA_CPT_TYPE	CRM_MKTCA_CPT_TYPE	CHAR	2	0	Type of Campaign Element Used
31	SURVEYID	☐	CRM_SVY_DB_SID	CHAR32	CHAR	32	0	CRM Surveys: Survey ID	CRM_SVY_DB_S
32	SURVEYVERSION	☐	CRM_SVY_DB_SVERS	NUMC10	NUMC	10	0	CRM Surveys: Survey Version
33	RECURRING	☐	CRMT_MKTCA_CPG_RECURRING	CRM_MKTCA_CPG_RECURRING	CHAR	1	0	Indicator Recurring Campaign for Camp. Automation
34	MKTCA_WFTASK	☐	CRMT_MKTCA_WFTASK	CRM_MKTCA_WFTASK	CHAR	4	0	Assignment Term Workflow for Task ID	CRMC_MKTCA_WFT
35	CAMP_PERIOD	☐	CRMT_MKTCA_PERIOD	CRM_MKTCA_PERIOD	CHAR	30	0	Period for Campaign
36	N_CAMP_PERIODS	☐	CRMT_MKTCA_NUMBER_PERIODS	CRM_MKTCA_NUMBER_PERIODS	INT4	10	0	No. of Processing Periods
37	RESPONSE_FLAG	☐	CRMT_MKTCA_RESPONSE_FLAG	XFELD	CHAR	1	0	Start for Every Respondent?
38	ET_CAMPAIGN	☐	CRMT_MKTCA_EVENT_TRIGGERED_CPG	XFELD	CHAR	1	0	Indicator for Event Triggered Campaigns
39	SCHEDULING_TYPE	☐	CRMT_MKTCA_SCHEDULING_TYPE	CRM_MKTCA_SCHEDULING_TYPE	CHAR	2	0	Scheduling Type
40	DELAY	☐	CRMT_MKTCA_DELAY	CRM_MKTCA_DELAY	INT1	3	0	Delay (Relative Scheduling)
41	DELAY_UNIT	☐	CRMT_MKTCA_DELAY_UNIT	CRM_MKTCA_DELAY_UNIT	CHAR	2	0	Unit for Delay (Relative Scheduling)
42	CAMP_PERIOD_DUR	☐	CRMT_MKTCA_PERIOD_N	INT4	INT4	10	0	Period Duration for Recurring Campaigns
43	TERR_PATH_GUID	☐	CRMT_TERRITORY_PATH_GUID	SYSUUID	RAW	16	0	Territory Path GUID
44	TERR_PATH_ID	☐	CRMT_TERRITORY_PATH_ID	CRM_TERRITORY_PATH_ID	CHAR	30	0	Territory Hierarchy ID
45	INACTIVE	☐	CRMT_MKTPL_INACTIVE	CHAR1	CHAR	1	0	Inactive Marketing Project
46	CHM_RELEVANT	☐	CRMT_MKTPL_CHM_RELEVANT	XFELD	CHAR	1	0	Open to Partners
47	EXCL_IND	☐	CRM_MKTPL_EXCL_IND	CRM_MKTPL_EXCL_IND	CHAR	1	0	Indicator: Marketing Project Is Exclusive
48	TIMEZONE_CREATED	☐	CRM_MKTPL_TIMEZONE_CREATED	TZNZONE	CHAR	6	0	Time Zone of User Who Created the Marketing Project	*
49	PROD_PL_BASIS	☐	CRM_MKTSS_PL_BASIS	CRM_MKTSS_PL_BASIS	NUMC	3	0	Product Planning Basis
50	ADI_FLAG	☐	CRM_MKTPL_ADI	CRM_MKTPL_ADI	CHAR	1	0	Abnormal Demand Indicator
51	ENROLLMENT_REQ	☐	CRM_MKTPL_ENR_ENROLLMENT_REQ	XFELD	CHAR	1	0	Indicator, that enrollment is required
52	REF_TYPE	☐	CRM_MKTPL_REF_TYPE	CRM_MKTPL_REF_TYPE_DOM	CHAR	4	0	Usage Type
53	TEMPLATE	☐	CRM_MKTPL_TEMPLATE	CRM_BOOLEAN	CHAR	1	0	Template Indicator
54	SMARTDAY_FLAG	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
55	VALIDATION_PROF	☐	CRM_CLA_VS_VAL_PROFILE_ID	CRM_CLA_VS_VAL_PROFILE_ID	CHAR	30	0	ID of Validation Sheet Profile
56	DETERM_PROC	☐	COMT_PARTNER_DETERM_PROC	COMT_PARTNER_DETERM_PROC	CHAR	8	0	ID of a Partner Determination Procedure	*
57	RATES_ORIGIN	☐	CRM_MKTGS_RATES_ORIGIN	CRM_MKTGS_RATES_ORIGIN	CHAR	1	0	Rates Origin
58	USE_FIX_TZ_UTC	☐	CRM_MKTPL_USE_FIX_TIMEZONE	CRM_BOOLEAN	CHAR	1	0	MKTPL: Use Fix Timezone UTC for Timestamp - Date/Time Conv.
59	COMB_TYPE	☐	CRM_MKTPL_LOY_COMB_TYPE	CRM_MKTPL_LOY_COMB_TYPE	CHAR	4	0	Combinability Type for Reward Rule Group
60	EXECUTION_LANG	☐	CRM_MKTPL_EXECUTION_LANGUAGE	SPRAS	LANG	1	0	Execution Language in High-Volume Scenario	*
61	BP_CORR_LANG_IND	☐	CRM_MKTPL_DETERMINE_CORR_LANG	XFELD	CHAR	1	0	Indicator: Determine BP Correspondence Language
62	NOTIF_PROF	☐	CRMT_NOTIF_PROF	CRM_NOTIF_PROF	CHAR	10	0	Notification Profile	*
63	.INCLUDE	☐				0	0	Extension Include - Marketing Objects Header
64	MKTPL_HEADER	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
65	ENROLLMENT_TYPE	☐	CRM_MKTPL_ENR_TYPE	CRM_MKTPL_ENR_TYPE	CHAR	8	0	Data Element For Enrollment Type
66	CHECK_CONSENT	☐	CRM_MKTPL_CHECK_MKT_PERMISSION	XFELD	CHAR	1	0	Check Consent (Marketing Permission)
67	.INCLUDE	☐				0	0	Structures for generating change document update programs
68	KZ	☐	CDCHNGIND	CDCHNGIND	CHAR	1	0	Change type (U, I, E, D)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	MKTCRM_MKTPL_ATTR	AUTH_GROUP	CRMC_MKTPL_AUTHG	AUTH_GROUP	KEY
2	MKTCRM_MKTPL_ATTR	CAMP_TYPE	CRMC_MKTPL_CTYPE	CAMP_TYPE	KEY
3	MKTCRM_MKTPL_ATTR	CHANNEL	CRMC_MKTPL_CHAN	CHANNEL	KEY
4	MKTCRM_MKTPL_ATTR	CURRENCY	TCURC	WAERS
5	MKTCRM_MKTPL_ATTR	MKTCA_WFTASK	CRMC_MKTCA_WFT	MKTCA_WFTASK	KEY	1	CN
6	MKTCRM_MKTPL_ATTR	OBJECTIVE	CRMC_MKTPL_OBJTV	OBJECTIVE	KEY
7	MKTCRM_MKTPL_ATTR	PROJECT_GUID	CGPL_PROJECT	GUID
8	MKTCRM_MKTPL_ATTR	SURVEYID	CRM_SVY_DB_S	SURVEYID	KEY	1	N
9	MKTCRM_MKTPL_ATTR	TACTICS	CRMC_MKTPL_TACTS	TACTICS	KEY

History

Last changed by/on	SAP	20110908
SAP Release Created in	701
