SAP ABAP Table LOYS_PPF_CARD (PPF CARD Structure)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-LOY-MSH (Application Component) Membership
     ⤷ LOY_PPF (Package) PPF Integration with Loyalty Application

Basic Data

Table Category	INTTAB	Structure

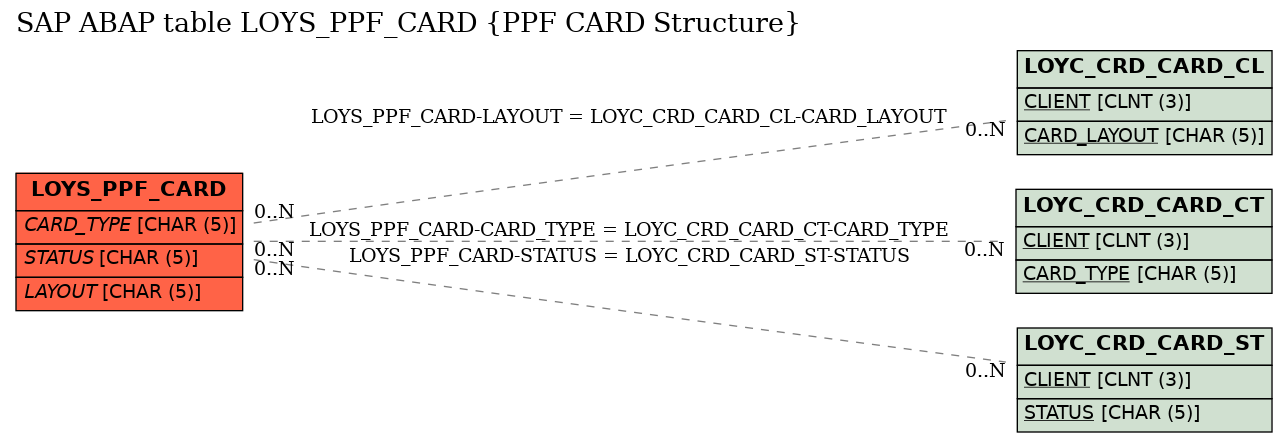

Structure	LOYS_PPF_CARD	Table Relationship Diagram
Short Description	PPF CARD Structure

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Structure for Card Table
2	.INCLUDE	☐				0	0	Cards table
3	.INCLUDE	☐				0	0	LOY FRW : Primary key Include
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
5	GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
6	.INCLUDE	☐				0	0	LOY FRW : Administrative Include
7	CREATED_ON	☐	LOY_FRW_CREATED_ON	SYDATS	DATS	8	0	Created On - OBSOLETE !!!
8	CREATED_BY	☐	LOY_FRW_CREATED_BY	UNAME	CHAR	12	0	Created By
9	CREATED_AT	☐	LOY_FRW_CREATED_AT	LOY_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
10	CHANGED_ON	☐	LOY_FRW_CHANGED_ON	SYDATS	DATS	8	0	Changed On - OBSOLETE !!!
11	CHANGED_BY	☐	LOY_FRW_CHANGED_BY	UNAME	CHAR	12	0	Changed By
12	CHANGED_AT	☐	LOY_FRW_CHANGED_AT	LOY_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
13	.INCLUDE	☐				0	0	LOY FRW : Non-Key Framework Include
14	REF_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
15	APPLICATION	☐	LOY_FRW_APPLICATION	LOY_FRW_APPLICATION	CHAR	4	0	Application
16	PROCESS_TYPE	☐	LOY_FRW_PROCESS_TYPE	LOY_FRW_PROCESS_TYPE	CHAR	15	0	Process Type
17	OBJECT_ID	☐	LOY_CRD_CARD_ID	LOY_CRD_CARD_ID	CHAR	16	0	Card ID
18	CARD_TYPE	☐	LOY_CRD_CARD_CTYPE	LOY_CRD_CARD_CTYPE	CHAR	5	0	Card Type	LOYC_CRD_CARD_CT
19	STATUS	☐	LOY_CRD_CARD_STATUS	LOY_CRD_CARD_STATUS	CHAR	5	0	Card Status	LOYC_CRD_CARD_ST
20	CARD_VALID_FROM	☐	LOY_CRD_CARD_DATE	DATUM	DATS	8	0	Date
21	CARD_VALID_TO	☐	LOY_CRD_CARD_DATE	DATUM	DATS	8	0	Date
22	CARD_DISP_NAME	☐	LOY_CRD_CARD_DNAME	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Display Name
23	EXTERNAL_CARD_NU	☐	LOY_CRD_CARD_EXT_ID	LOY_CRD_CARD_EXT_ID	CHAR	25	0	External Card ID
24	CARD_TITLE_1	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
25	CARD_TITLE_2	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
26	LAYOUT	☐	LOY_CRD_CARD_LAYOUT	LOY_CRD_CARD_LAYOUT	CHAR	5	0	Card Layout	LOYC_CRD_CARD_CL
27	MEMB_ID	☐	BU_PARTNER	BU_PARTNER	CHAR	10	0	Business Partner Number	*
28	.INCLUDE	☐				0	0	Extensibility Include Structure for loyalty cards
29	CARD_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
30	.INCLUDE	☐				0	0
31	OLDCARD_REF_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
32	CARD_REN_DATE	☐	LOY_CRD_CARD_DATE	DATUM	DATS	8	0	Date
33	CARD_RANK	☐	LOY_CRD_CARD_RANK	LOY_CRD_CARD_RANK	CHAR	2	0	Loyalty Card Rank
34	CARD_PROC	☐	BU_PARTNER	BU_PARTNER	CHAR	10	0	Business Partner Number	*
35	CARD_MAG_STRIP	☐	LOY_CRD_BOOLEAN	LOY_CRD_BOOLEAN	CHAR	1	0	Active
36	CARD_PHOTO	☐	LOY_CRD_BOOLEAN	LOY_CRD_BOOLEAN	CHAR	1	0	Active
37	CARD_PIN	☐	LOY_CRD_BOOLEAN	LOY_CRD_BOOLEAN	CHAR	1	0	Active
38	ORDER_REF_NO	☐	LOY_CRD_ORDER_REF	LOY_CRD_ORDER_REF	CHAR	20	0	Loyalty Card Order Reference
39	ORDERED_AT	☐	LOY_CRD_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Loyalty Card Time Stamp
40	PRINTED_AT	☐	LOY_CRD_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Loyalty Card Time Stamp
41	SHIPPED_AT	☐	LOY_CRD_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Loyalty Card Time Stamp
42	.INCLUDE	☐				0	0	Structure for status in loyalty
43	ISTAT	☐	LOY_FRW_JISTAT	J_ISTAT	CHAR	5	0	Element for System Status	*
44	ESTAT	☐	LOY_FRW_JESTAT	J_ESTAT	CHAR	5	0	User Status	*
45	SRV_CTR_GUID	☐	LOY_FRW_GUID	SYSUUID	RAW	16	0	Object GUID
46	CARD_TITLE_1_UC	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
47	CARD_TITLE_2_UC	☐	LOY_CRD_CARD_CTITLE	LOY_CRD_CARD_DNAME	CHAR	25	0	Card Title
48	.INCLUDE	☐				0	0	LOY FRW : Actions Include
49	PROCESS_MODE	☐	LOY_FRW_MODE	LOY_FRW_MODE	CHAR	1	0	Mode
50	MEMBERSHIP_ID	☐	LOY_MEMS_ID	LOY_MEMS_ID	CHAR	10	0	Membership ID
51	STATUS_TXT30	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
52	STATUS_FLAG	☐	LOY_CRD_CARD_STATUS	LOY_CRD_CARD_STATUS	CHAR	5	0	Card Status

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	LOYS_PPF_CARD	CARD_TYPE	LOYC_CRD_CARD_CT	CARD_TYPE
2	LOYS_PPF_CARD	LAYOUT	LOYC_CRD_CARD_CL	CARD_LAYOUT
3	LOYS_PPF_CARD	STATUS	LOYC_CRD_CARD_ST	STATUS

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
