SAP ABAP Table LCRT_INST_LU (AI-LCR: Instance Name-Lookup)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-CCM-SLD-ABA (Application Component) System Landscape Directory ABAP Connectivity
     ⤷ SLD_DB_PERS (Package) System Landscape Directory: DB Persistence

Basic Data

Table Category	TRANSP	Transparent table

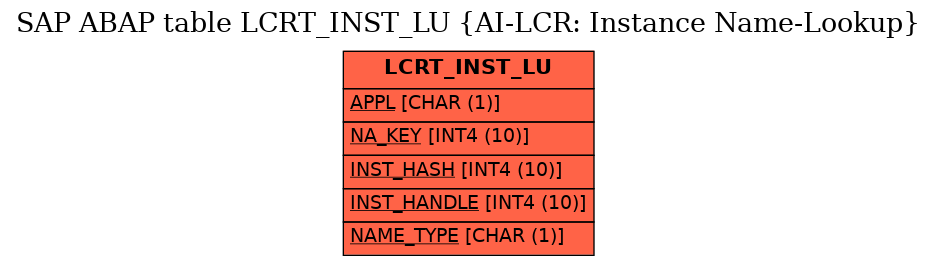

Transparent table	LCRT_INST_LU	Table Relationship Diagram
Short Description	AI-LCR: Instance Name-Lookup

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	APPL	☑	LCR_APPL	LCR_APPL	CHAR	1	0	AI-LCR: Application Server or Client
2	NA_KEY	☑	LCR_NA_KEY		INT4	10	0	AI-LCR: Namespace Key
3	INST_HASH	☑	LCR_HASH		INT4	10	0	AI-LCR: Hash Value of a String
4	INST_HANDLE	☑	LCR_HANDLE		INT4	10	0	AI-LCR: Handle of a Hash Value
5	NAME_TYPE	☑	LCR_INSTNAME_TYPE	LCR_INSTNAME_TYPE	CHAR	1	0	AI-LCR: Type of Instance Name
6	LEN	☐			INT2	5	0
7	INSTNAME	☐	LCR_NAME		LCHR	32000	0	AI-LCR: Name

History

Last changed by/on	SAP	20041217
SAP Release Created in	620
