SAP ABAP Table LAPI_TECH_SYSTEM (Technical Systems for DIAGLS landscape API)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-LDB (Application Component) Landscape Management
     ⤷ AI_LMDB_DIAGLS (Package) Landscape Management: LMDB Diagnostics Synchronisation layer

Basic Data

Table Category	TRANSP	Transparent table

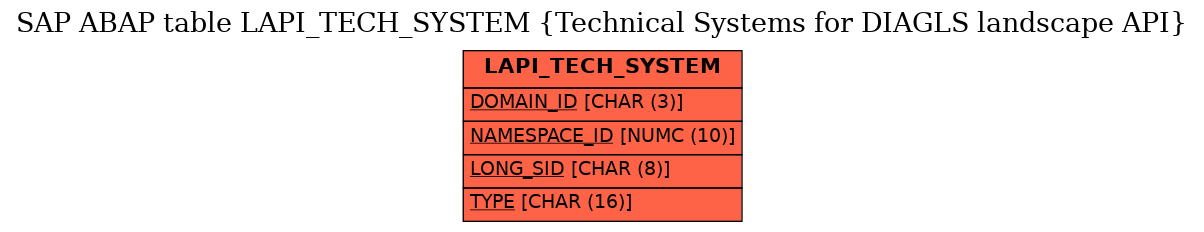

Transparent table	LAPI_TECH_SYSTEM	Table Relationship Diagram
Short Description	Technical Systems for DIAGLS landscape API

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	DOMAIN_ID	☑	LMDB_CIM_DOMAIN		CHAR	3	0	CIM Domain
2	NAMESPACE_ID	☑	LMDB_CIM_NAMESPACE_ID		NUMC	10	0	Namespace ID
3	LONG_SID	☑	DIAGLS_TECH_SYST_LONG_SID		CHAR	8	0	The Technical System Long Sid
4	TYPE	☑	DIAGLS_TECHNICAL_SYSTEM_TYPE		CHAR	16	0	The Technical System Type (Abap Server, J2ee Server)
5	ID	☐	DIAGLS_ID	D_DIAGLS_ID	CHAR	128	0	The Landscape ID.
6	GLOBAL_ID	☐	DIAGLS_GLOBAL_ID		CHAR	36	0	The global ID.
7	CREATION_DATE	☐	DIAGLS_CREATION_DATE	TIMESTAMP	CHAR	14	0	The Creation Date.
8	CAPTION	☐	DIAGLS_CAPTION	CHAR128	CHAR	128	0	Caption
9	SLD_ID	☐	DIAGLS_SLD_ID		CHAR	512	0	Sld Id.
10	SLD_KEY	☐	DIAGLS_SLD_ID		CHAR	512	0	Sld Id.
11	REG_SRC	☐	DIAG_REGISTRATION_SOURCE		CHAR	32	0	The registration source.
12	DESCRIPTION	☐	DIAGLS_DESCRIPTION	CHAR1024	CHAR	1024	0	Description
13	NAME_ID	☐	DIAGLS_TECH_SYST_NAME_ID		CHAR	128	0	The name ID of the Technical System
14	SID	☐	DIAGLS_TECHNICAL_SYSTEM_SID		CHAR	3	0	The Technical System Sid
15	INSTALL_NUMBER	☐	DIAGLS_TECH_SYST_INSTALL_NBR		CHAR	10	0	The Technical System Install Number
16	HAS_DIAG_PV	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
17	WSPHR_CELL_NAME	☐	DIAGLS_WSPHR_CELL_NAME		CHAR	64	0	Websphere cell name
18	UNSPEC_TECH	☐	DIAGLS_TECHNOLOGY_NAME		CHAR	32	0	The Technology name.
19	WILY_SERV_NAME	☐	DIAGLS_WILY_SERVER_NAME		CHAR	64	0	Wily Server Name
20	TMS_DOMAIN	☐	DIAGLS_ABAP_TMS_DOMAIN		CHAR	64	0	TMS Domain
21	TMS_TP_GRP	☐	DIAGLS_ABAP_TMS_TRANS_GRP		CHAR	32	0	TMS Group
22	TMS_TP_GRP_NAME	☐	DIAGLS_ABAP_TMS_TRANS_GRP_NAME		CHAR	128	0	TMS Group Name
23	SYNC_TIMESTAMP	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

History

Last changed by/on	SAP	20111123
SAP Release Created in	710
