SAP ABAP Table LAPI_INST_SC (Installed Software Component Versions)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-LDB (Application Component) Landscape Management
     ⤷ AI_LMDB_DIAGLS (Package) Landscape Management: LMDB Diagnostics Synchronisation layer

Basic Data

Table Category	TRANSP	Transparent table

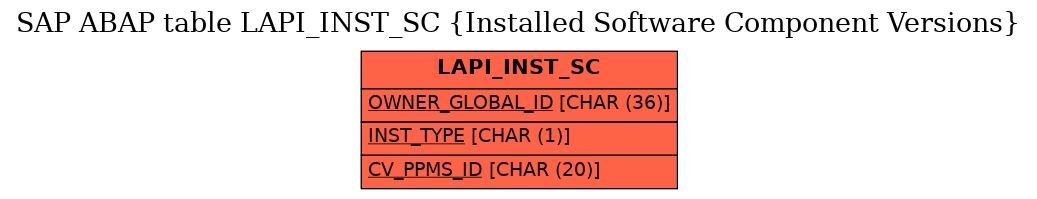

Transparent table	LAPI_INST_SC	Table Relationship Diagram
Short Description	Installed Software Component Versions

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OWNER_GLOBAL_ID	☑	DIAGLS_GLOBAL_ID		CHAR	36	0	The global ID.
2	INST_TYPE	☑	LAPI_INSTALLATION_TYPE		CHAR	1	0	Installation Type of a Software Component
3	CV_PPMS_ID	☑	DIAGLS_SOFT_COMP_VERS_PPMS_ID		CHAR	20	0	The Ppms Id of the Software Component Version
4	DOMAIN_ID	☐	LMDB_CIM_DOMAIN		CHAR	3	0	CIM Domain
5	NAMESPACE_ID	☐	LMDB_CIM_NAMESPACE_ID		NUMC	10	0	Namespace ID
6	LONG_SID	☐	DIAGLS_TECH_SYST_LONG_SID		CHAR	8	0	The Technical System Long Sid
7	TYPE	☐	DIAGLS_TECHNICAL_SYSTEM_TYPE		CHAR	16	0	The Technical System Type (Abap Server, J2ee Server)
8	OWNER_ID	☐	DIAGLS_ID	D_DIAGLS_ID	CHAR	128	0	The Landscape ID.
9	GLOBAL_ID	☐	DIAGLS_GLOBAL_ID		CHAR	36	0	The global ID.
10	ID	☐	DIAGLS_ID	D_DIAGLS_ID	CHAR	128	0	The Landscape ID.
11	CREATION_DATE	☐	DIAGLS_CREATION_DATE	TIMESTAMP	CHAR	14	0	The Creation Date.
12	CAPTION	☐	DIAGLS_CAPTION	CHAR128	CHAR	128	0	Caption
13	SLD_ID	☐	DIAGLS_SLD_ID		CHAR	512	0	Sld Id.
14	SLD_KEY	☐	DIAGLS_SLD_ID		CHAR	512	0	Sld Id.
15	REG_SRC	☐	DIAG_REGISTRATION_SOURCE		CHAR	32	0	The registration source.
16	DESCRIPTION	☐	DIAGLS_DESCRIPTION	CHAR1024	CHAR	1024	0	Description
17	NAME	☐	DIAGLS_SOFT_COMP_VERS_NAME		CHAR	30	0	The Name of the Software Component Version
18	TECHNICAL_NAME	☐	DIAGLS_SOFT_COMP_VERS_TNAME		CHAR	30	0	The Technical Name of the Software Component Version
19	VERSION	☐	DIAGLS_SOFT_COMP_VERSION		CHAR	64	0	The Version of the Software Component Version.
20	SUPPORT_PKG_LVL	☐	DIAGLS_SOFT_COMP_VERS_SUP_PACK		CHAR	10	0	The Support Package Level of a SCV.
21	PATCH_LEVEL	☐	DIAGLS_SOFT_COMP_VERS_PATCH_LV		CHAR	10	0	The Patch Level of a SCV.
22	DIAG_RELEVANT	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
23	DIAG_KNOWN	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
24	REQUIRED	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
25	INSTALLED	☐	BOOLEAN	BOOLEAN	CHAR	1	0	Boolean Variable (X=True, -=False, Space=Unknown)
26	SYNC_TIMESTAMP	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

History

Last changed by/on	SAP	20111123
SAP Release Created in	710
