SAP ABAP Table LAPI_INST_PI_SC (Relationship between installed SCs and installed PIs)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-LDB (Application Component) Landscape Management
     ⤷ AI_LMDB_DIAGLS (Package) Landscape Management: LMDB Diagnostics Synchronisation layer

Basic Data

Table Category	TRANSP	Transparent table

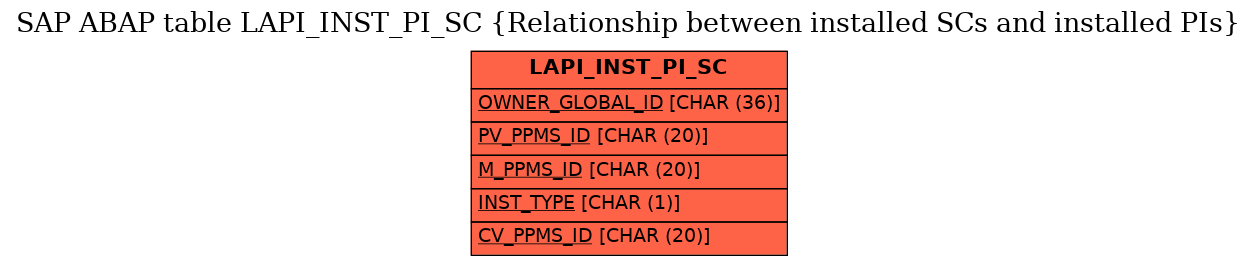

Transparent table	LAPI_INST_PI_SC	Table Relationship Diagram
Short Description	Relationship between installed SCs and installed PIs

Delivery and Maintenance

Pool/cluster
Delivery Class	L	Table for storing temporary data, delivered empty
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OWNER_GLOBAL_ID	☑	DIAGLS_GLOBAL_ID		CHAR	36	0	The global ID.
2	PV_PPMS_ID	☑	DIAGLS_PRODUCT_VERSION_PPMS_ID		CHAR	20	0	The Product PV PPMS ID.
3	M_PPMS_ID	☑	DIAGLS_MAIN_INSTANCE_M_PPMS_ID		CHAR	20	0	The Product Instance PPMS ID.
4	INST_TYPE	☑	LAPI_INSTALLATION_TYPE		CHAR	1	0	Installation Type of a Software Component
5	CV_PPMS_ID	☑	DIAGLS_SOFT_COMP_VERS_PPMS_ID		CHAR	20	0	The Ppms Id of the Software Component Version
6	P_PPMS_ID	☐	DIAGLS_MAIN_INSTANCE_P_PPMS_ID		CHAR	20	0	The Main Instance Product PPMS ID.
7	DOMAIN_ID	☐	LMDB_CIM_DOMAIN		CHAR	3	0	CIM Domain
8	NAMESPACE_ID	☐	LMDB_CIM_NAMESPACE_ID		NUMC	10	0	Namespace ID
9	LONG_SID	☐	DIAGLS_TECH_SYST_LONG_SID		CHAR	8	0	The Technical System Long Sid
10	TYPE	☐	DIAGLS_TECHNICAL_SYSTEM_TYPE		CHAR	16	0	The Technical System Type (Abap Server, J2ee Server)
11	OWNER_ID	☐	DIAGLS_ID	D_DIAGLS_ID	CHAR	128	0	The Landscape ID.
12	SYNC_TIMESTAMP	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

History

Last changed by/on	SAP	20111123
SAP Release Created in	710
