SAP ABAP Table KDM_CHKF (KPro Demo: File Name of Last Check-Out)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-SRV-KPR-DMS (Application Component) Document Management Services
     ⤷ SDOK (Package) SAP Knowledge Provider

Basic Data

Table Category	TRANSP	Transparent table

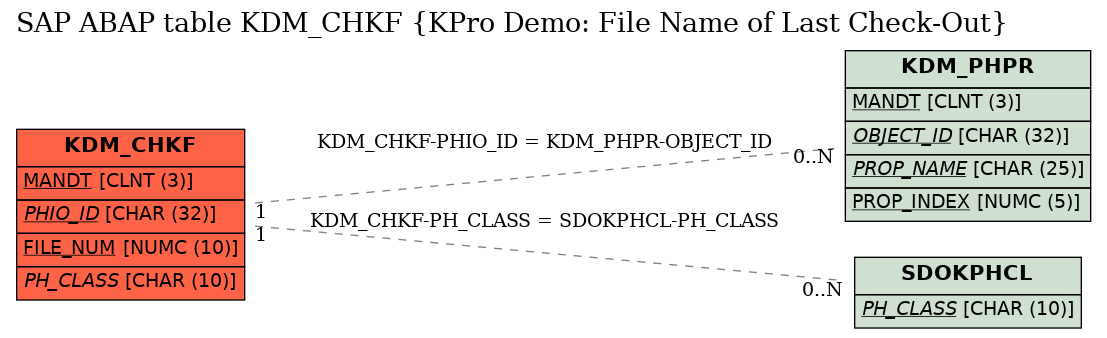

Transparent table	KDM_CHKF	Table Relationship Diagram
Short Description	KPro Demo: File Name of Last Check-Out

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
2	PHIO_ID	☑	SDOK_PHID	SDOK_DOCID	CHAR	32	0	Physical document	KDM_PHPR
3	FILE_NUM	☑	SDOK_FNUMB	NUMC10	NUMC	10	0	Sequential number of file
4	PH_CLASS	☐	SDOK_PHCL	SDOK_CLASS	CHAR	10	0	Physical document class	SDOKPHCL
5	FILE_NAME	☐	SDOK_FILNM	SDOK_FILNM	CHAR	255	0	Relative storage location of physical document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	KDM_CHKF	PHIO_ID	KDM_PHPR	OBJECT_ID	KEY	1	CN
2	KDM_CHKF	PH_CLASS	SDOKPHCL	PH_CLASS	KEY	1	CN

History

Last changed by/on	SAP	20050302
SAP Release Created in	700
