SAP ABAP Table KCDRS (Data Transfer Rules: Selection Criteria of Sender Fields)

Hierarchy

☛ SAP_ABA (Software Component) Cross-Application Component
   ⤷ CA-GTF-DCM (Application Component) Data Transfer
     ⤷ BKD (Package) Tools for (external) data transfer

Basic Data

Table Category	TRANSP	Transparent table

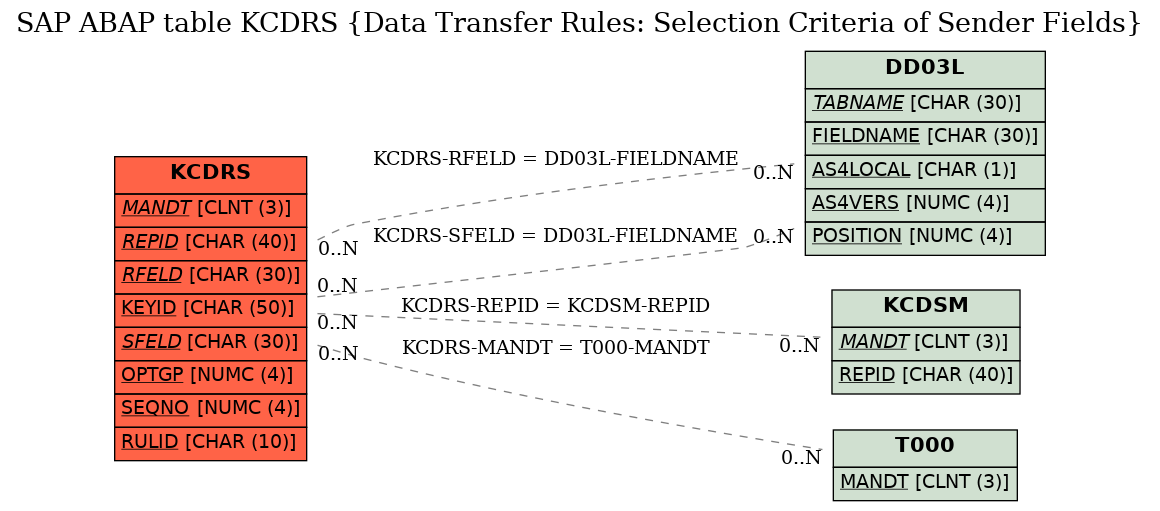

Transparent table	KCDRS	Table Relationship Diagram
Short Description	Data Transfer Rules: Selection Criteria of Sender Fields

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	REPID	☑	KCD_REPID	KCD_REPID	CHAR	40	0	Sender structure	KCDSM
3	RFELD	☑	KCD_RFELD	FDNAME	CHAR	30	0	Receiver field	DD03L
4	KEYID	☑	KCD_KEYID	KEYID_LOW	CHAR	50	0	Characteristic value in recipient field
5	SFELD	☑	KCD_SFELD	FDNAME	CHAR	30	0	Sender field	DD03L
6	OPTGP	☑	KCD_OPTGP	NUMC4	NUMC	4	0	Group of selection criteria that belong together
7	SEQNO	☑	KCD_SEQNO	NUMC4	NUMC	4	0	Seq. number
8	RULID	☑	KCD_RULID	KCD_RULID	CHAR	10	0	Data Transfer Rule
9	SIGN	☐	KCD_SIGN	CHAR1	CHAR	1	0	+/- sign of selection criterion
10	OPTIO	☐	KCD_OPTIO	CHAR2	CHAR	2	0	Selection conditions
11	LOW	☐	KCD_LOW	KEYID_LOW	CHAR	50	0	Lower Limit
12	HIGH	☐	KCD_HIGH	KEYID_LOW	CHAR	50	0	Upper Limit

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	KCDRS	MANDT	T000	MANDT
2	KCDRS	REPID	KCDSM	REPID
3	KCDRS	RFELD	DD03L	FIELDNAME
4	KCDRS	SFELD	DD03L	FIELDNAME

History

Last changed by/on	SAP	20110908
SAP Release Created in
