SAP ABAP Table JBIBP_BUS_EI_STRUC_RFC_DATA (Ext. Interface: Structure RFC_DATA)

Hierarchy

☛ EA-FINSERV (Software Component) SAP Enterprise Extension Financial Services
   ⤷ IS-B-DP (Application Component) Transaction Data Pool
     ⤷ JBD_FSBP (Package) SEM Banking: Enhancements for FS Business Partner

Basic Data

Table Category	INTTAB	Structure
Structure	JBIBP_BUS_EI_STRUC_RFC_DATA	Table Relationship Diagram
Short Description	Ext. Interface: Structure RFC_DATA

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	BAPI Structure for RFC Addresses (Business Address Services)
2	STD_NO	☐	AD_FLGDFNR	XFELD	CHAR	1	0	Standard Sender Address in this Communication Type
3	LOG_DEST	☐	AD_LOGDEST	RFCDEST	CHAR	32	0	RFC logical destination	RFCDES
4	STD_RECIP	☐	AD_DFTRCNR	XFELD	CHAR	1	0	Flag: Recipient is standard recipient for this number
5	R_3_USER	☐	AD_R3_USER	XFELD	CHAR	1	0	Flag: Connected to an SAP System
6	HOME_FLAG	☐	AD_FLGHOME	XFELD	CHAR	1	0	Recipient address in this communication type (mail sys.grp)
7	CONSNUMBER	☐	AD_CONSNUM	NUMC3	NUMC	3	0	Sequence Number
8	ERRORFLAG	☐	AD_ERRBAPI	XFELD	CHAR	1	0	Flag: Record not processed
9	FLG_NOUSE	☐	JBIBP_AD_FLNOUSE	XFELD	CHAR	1	0	Indicator: This Communication Number is Not Used

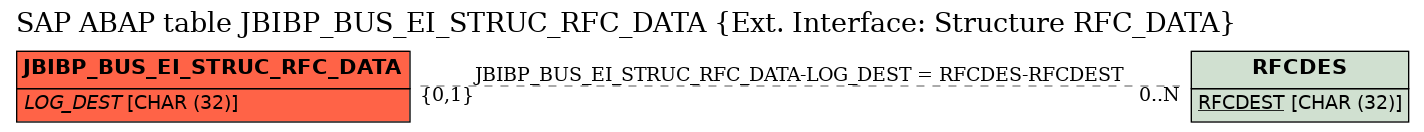

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	JBIBP_BUS_EI_STRUC_RFC_DATA	LOG_DEST	RFCDES	RFCDEST	REF	C	CN

History

Last changed by/on	SAP	20110901
SAP Release Created in	200
