SAP ABAP Table INM_TS_PROJECT_EXT (Project External Attributes)

Hierarchy

☛ CPRXRPM (Software Component) SAP Portfolio and Project Management 6.0
   ⤷ PPM-CF (Application Component) Common Functions
     ⤷ INM_INITIATIVE (Package) Initiative

Basic Data

Table Category	INTTAB	Structure

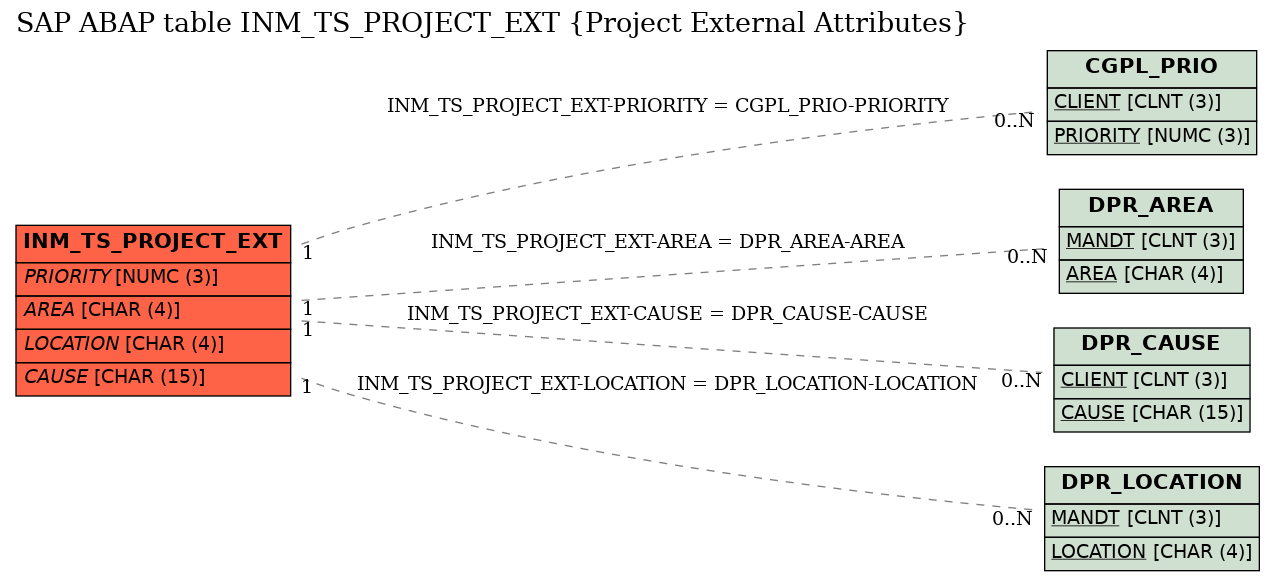

Structure	INM_TS_PROJECT_EXT	Table Relationship Diagram
Short Description	Project External Attributes

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Project Non Modifiable Attributes
2	DPR_GUID	☐	DPR_TV_GUID	DPR_GUID	RAW	16	0	Application Object GUID
3	SYSTEM_STATUS	☐	J_ISTAT	J_ISTAT	CHAR	5	0	System status	*
4	USER_STATUS	☐	J_ESTAT	J_ESTAT	CHAR	5	0	User Status	*
5	STATUS_TEXT_SHORT	☐	J_TXT04	TEXT4	CHAR	4	0	Individual status of an object (short form)
6	STATUS_TEXT_LONG	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
7	RESP_ORG_U_SHORT	☐	DPR_TV_ORG_UNIT	CHAR12	CHAR	12	0	Responsible Organizational Unit
8	RESP_ORG_U_STEXT	☐	DPR_TV_TEXT	DPR_TEXT	CHAR	40	0	Object Name
9	.INCLUDE	☐				0	0	Externally Modifiable Project Attributes
10	RESP_ORG_UNIT	☐	DPR_TV_RESP_ORGANIZATION	HROBJID	NUMC	8	0	Organization Responsible	*
11	GROUPING	☐	DPR_TV_GROUPING		CHAR	40	0	Grouping
12	SEARCH_FIELD	☐	DPR_TV_SEARCH_FIELD		CHAR	40	0	Search Field
13	PRIORITY	☐	CGPL_PRIORITY	NUMC3	NUMC	3	0	Priority	CGPL_PRIO
14	AREA	☐	DPR_TV_AREA	DPR_AREA	CHAR	4	0	Area	DPR_AREA
15	LOCATION	☐	DPR_TV_LOCATION	DPR_LOCATION	CHAR	4	0	Location	DPR_LOCATION
16	RELEASE_DATE	☐	DPR_TV_RELEASE_DATE	DATS	DATS	8	0	Release Date
17	STSMA	☐	J_STSMA	J_STSMA	CHAR	8	0	Status Profile	*
18	CAUSE	☐	INM_TV_REASON	DPR_CAUSE	CHAR	15	0	Reason	DPR_CAUSE
19	RESPONSIBLE_ROLE	☐	DPR_TV_PART_ROLE_DESCRIPTION	TEXT40	CHAR	40	0	Language-Dependent Short Text for Role (Participant)
20	RESPONSIBLE_ROLE_GUID	☐	DPR_TV_GUID	DPR_GUID	RAW	16	0	Application Object GUID
21	RESPONSIBLE_NAME	☐	BU_NAME1TX	TEXT80	CHAR	80	0	Full Name
22	DURATION_UNIT	☐	CGPL_DURATION_UNIT	MEINS	UNIT	3	0	Time Unit for Execution Duration	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	INM_TS_PROJECT_EXT	AREA	DPR_AREA	AREA	KEY	1	CN
2	INM_TS_PROJECT_EXT	CAUSE	DPR_CAUSE	CAUSE	KEY	1	CN
3	INM_TS_PROJECT_EXT	LOCATION	DPR_LOCATION	LOCATION	KEY	1	CN
4	INM_TS_PROJECT_EXT	PRIORITY	CGPL_PRIO	PRIORITY	KEY	1	CN

History

Last changed by/on	SAP	20141109
SAP Release Created in	450
