SAP ABAP Table ICFMEMORY (Buffer for Internet Communication Framework (ICF) Runtime)
Hierarchy
☛
SAP_BASIS (Software Component) SAP Basis Component
⤷
BC-MID-ICF (Application Component) Internet Communication Framework
⤷
SHTTP (Package) Development Class for HTTP Communication
SAP_BASIS (Software Component) SAP Basis Component⤷
BC-MID-ICF (Application Component) Internet Communication Framework⤷
SHTTP (Package) Development Class for HTTP Communication
Basic Data
| Table Category | TRANSP | Transparent table |
| Transparent table | ICFMEMORY |

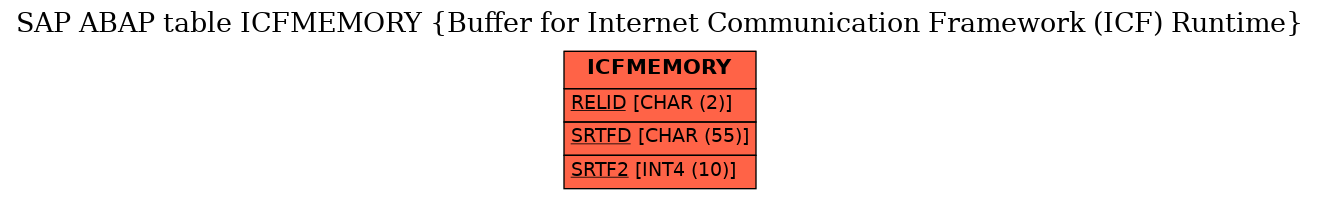

Table Relationship Diagram
|
| Short Description | Buffer for Internet Communication Framework (ICF) Runtime |
Delivery and Maintenance
| Pool/cluster | ||
| Delivery Class | L | Table for storing temporary data, delivered empty |
| Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
 |
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|---|---|---|---|---|---|---|---|---|---|
| 1 |  RELID |
INDX_RELID | SYCHAR02 | CHAR | 2 | 0 | Region in IMPORT/EXPORT Data Table | ||
| 2 | SRTFD |
ICF_SRTFD | ICFCHAR55 | CHAR | 55 | 0 | User-Defined Key Part in Table ICFMEMORY | ||
| 3 | SRTF2 |
INDX_SRTF2 | SYBIN4 | INT4 | 10 | 0 | Next record counter in EXPORT/IMPORT data tables | ||
| 4 | VERSION |
ICFSTATUS | CHAR8 | CHAR | 8 | 0 | State of ICF Message | ||
| 5 | CLUSTR |
INDX_CLSTR | SYBIN2 | INT2 | 5 | 0 | Length field for user data in EXPORT/IMPORT tables | ||
| 6 | CLUSTD |
INDX_CLUST | INDX_CLUST | LRAW | 2886 | 0 | Data field for IMPORT/EXPORT database tables |
History
| Last changed by/on | SAP | 20110908 |
| SAP Release Created in | 640 |
