SAP ABAP Table IBAP_IBST (IB: Installed Base Component Structure)
Hierarchy
☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MD-INB (Application Component) Installed Bases
     ⤷ IB_CRM_ENV (Package) IBase: IBase CRM Environment
Basic Data
Table Category INTTAB    Structure

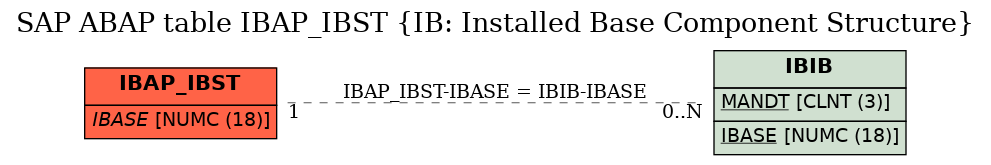

Structure IBAP_IBST   Table Relationship Diagram
Short Description IB: Installed Base Component Structure
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 .INCLUDE       0   0   IB: Installation Component - Structure
2 MANDT MANDT MANDT CLNT 3   0   Client *
3 ST_RECNO IB_RECNO SYSUUID_22 CHAR 22   0   IB: Unique record number
4 .INCLUDE       0   0   IB: Structure (Include structure)
5 .INCLUDE       0   0   IB: Validity of the data record
6 VALFR IB_VALFR BCOS_TSTMP DEC 15   0   IBase: Valid From
7 VALTO IB_VALTO BCOS_TSTMP DEC 15   0   IBase: Valid To
8 AENNR AENNR AENNR CHAR 12   0   Change Number *
9 DELFLAG OAX X CHAR 1   0   Yes/No (X/ )
10 .INCLUDE       0   0   IB: Administrative part of data record
11 CRNAM BU_CRUSR USNAM CHAR 12   0   User who created the object
12 CRTIM ICRTS BCOS_TSTMP DEC 15   0   Time (UTC) at which the object was created
13 UPNAM BU_CHUSR USNAM CHAR 12   0   Last user to change object
14 UPTIM IUPTS BCOS_TSTMP DEC 15   0   Time (UTC) at which the object was last changed
15 INSTANCE IB_INSTANCE IB_INSTANCE NUMC 18   0   IB: Component (instance)
16 POSNO IB_POSNO CHAR4 CHAR 4   0   IB: Item number
17 PARENT IB_PARENT IB_INSTANCE NUMC 18   0   IB: Superior component
18 ROOT IB_ROOT IB_INSTANCE NUMC 18   0   IB: Top-most component of an installed base/IBase
19 IBASE IB_IBASE IB_INSTANCE NUMC 18   0   IBase: Number of the Installed Base/IBase IBIB
20 .INCLUDE       0   0   IB: Component (Include Structure for Configuration)
21 ATAUT ATATAUT ATATAUT CHAR 1   0   Justification
22 UPDIND IB_UPDIND CHAR1 CHAR 1   0   IB: Update Ind. I=Insert, U=Update, D=Delete,' ' =No Action
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 IBAP_IBST IBASE IBIB IBASE 1 CN
History
Last changed by/on SAP  20110908
SAP Release Created in 30A
