SAP ABAP Table GRPC_S_ATTRIBUTE_IS (Attributes: Issue)

Hierarchy

☛ GRCFND_A (Software Component) GRC Foundation ABAP
   ⤷ GRC-SPC (Application Component) Process Controls
     ⤷ GRPC_ASSESSMENT_ISSUE_PLAN (Package) Assessment/Issue/Remediation Plan

Basic Data

Table Category	INTTAB	Structure

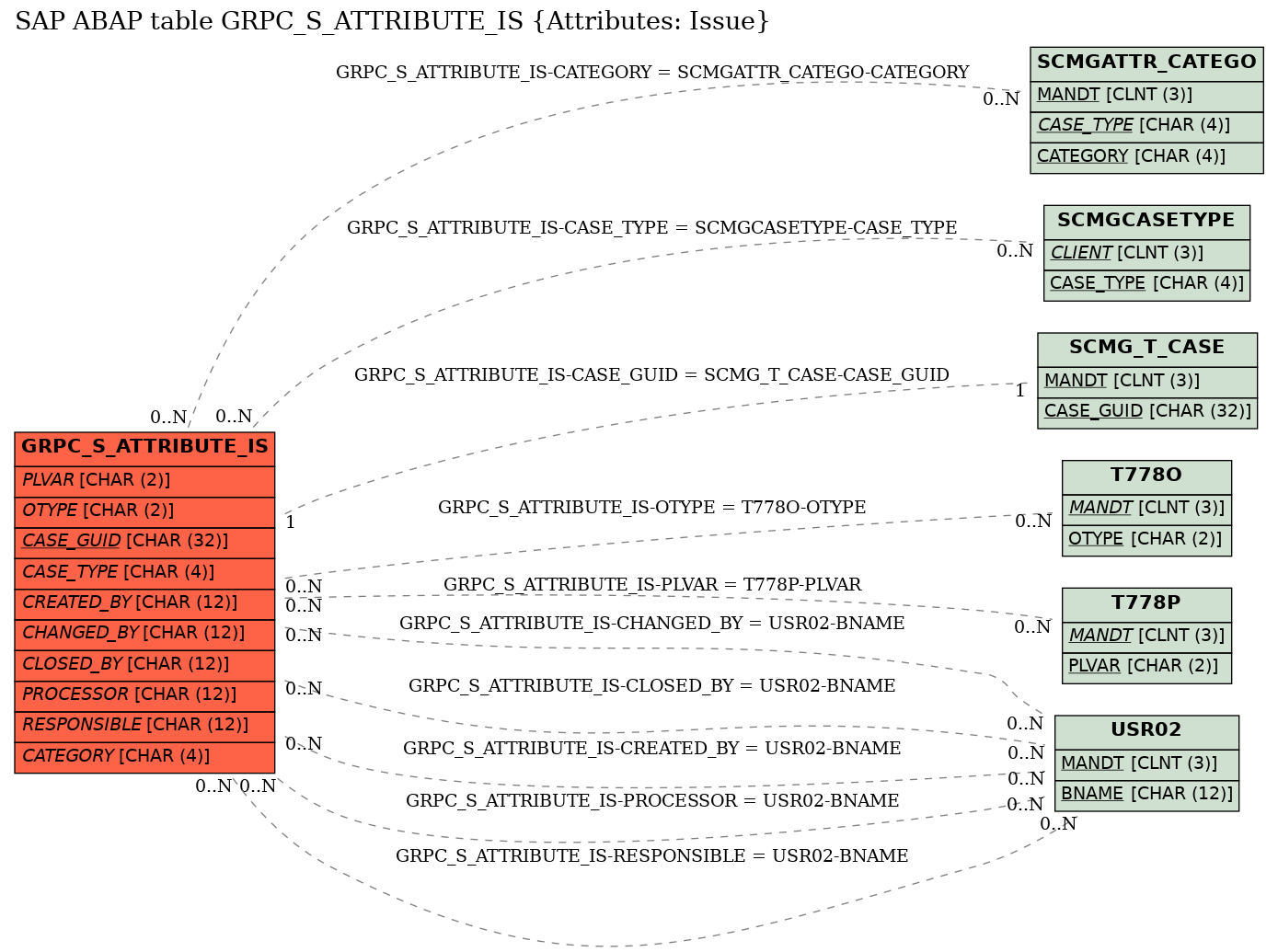

Structure	GRPC_S_ATTRIBUTE_IS	Table Relationship Diagram
Short Description	Attributes: Issue

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Object
2	PLVAR	☐	PLVAR	PLVAR	CHAR	2	0	Plan Version	T778P
3	OTYPE	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	T778O
4	OBJID	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
5	CASE_GUID	☑	SCMG_CASE_GUID	SYSUUID_C	CHAR	32	0	Technical Case Key (Case GUID)	SCMG_T_CASE
6	CASE_TYPE	☐	SCMGCASE_TYPE	SCMGCASE_TYPE	CHAR	4	0	Case Type	SCMGCASETYPE
7	CREATED_BY	☐	SCMG_CREATE_USER	XUBNAME	CHAR	12	0	Created By	USR02
8	CREATE_TIME	☐	SCMG_CREATE_TIME	SCMG_TIMESTAMP	DEC	15	0	Created On
9	CHANGED_BY	☐	SCMG_CHANGE_USER	XUBNAME	CHAR	12	0	Last Changed by	USR02
10	CHANGE_TIME	☐	SCMG_CHANGE_TIME	SCMG_TIMESTAMP	DEC	15	0	Last Changed On
11	CLOSED_BY	☐	SCMG_CLOSED_BY	XUBNAME	CHAR	12	0	Closed by User	USR02
12	CLOSING_TIME	☐	SCMG_CLOSING_TIME	SCMG_TIMESTAMP	DEC	15	0	Closed at Time
13	PROCESSOR	☐	SCMG_PROCESSOR	XUBNAME	CHAR	12	0	Processor	USR02
14	RESPONSIBLE	☐	SCMG_RESPONSIBLE	XUBNAME	CHAR	12	0	Person Responsible	USR02
15	CASE_TITLE	☐	SCMG_CASE_TITLE	TEXT80	CHAR	80	0	Case Title
16	CATEGORY	☐	SCMG_CATEGORY	CHAR4	CHAR	4	0	Category	SCMGATTR_CATEGO
17	STAT_OBJNR	☐	SCMGSTATOBJNR	SYSUUID_C	CHAR	32	0	Case: Status Object Number (GUID), (Central Status Managmnt)
18	STAT_VALUE	☐	J_ISTAT	J_ISTAT	CHAR	5	0	System status	*
19	PLAN_END_DATE	☐	SCMG_PLAN_END_DATE	DATUM	DATS	8	0	Planned Close Date
20	.INCLUDE	☐				0	0	Attributes: Issue
21	.INCLUDE	☐				0	0	Date of the Assessment or of the Test
22	DATE_BEGIN	☐	BEGDATUM	DATUM	DATS	8	0	Start Date
23	DATE_END	☐	ENDDATUM	DATUM	DATS	8	0	End Date
24	TIMEFRAME	☐	GRPC_TIMEFRAME	GRPC_ATTRVALUE	CHAR	10	0	Timeframe
25	TF_YEAR	☐	GRPC_YEAR		CHAR	4	0	Year
26	REGULATION	☐	GRFN_OBJECT_ID	NUM08	NUMC	8	0	Object ID
27	ISSUE_PRIORITY	☐	GRPC_ISSUE_PRIORITY	GRPC_ISSUE_PRIORITY	CHAR	1	0	Issue Priority
28	VALIDATED_BY_UN	☐	GRPC_VALIDATED_BY_UN	UNAME	CHAR	12	0	Person Validating
29	VALIDATION_DATE	☐	GRPC_VALIDATION_DATE	DATUM	DATS	8	0	Validation Date
30	.INCLU-DLV	☐				0	0	Delegation Information
31	MAIN_USERDLV	☐	GRPC_DL_MAIN_USER	XUBNAME	CHAR	12	0	User Replaced by Delegate	*
32	TIMESTAMPDLV	☐	GRPC_DL_TIME_STAMP	SCMG_TIMESTAMP	DEC	15	0	Time Stamp Denoting When Delegate Performs Action
33	.INCLU-DLR	☐				0	0	Delegation Information
34	MAIN_USERDLR	☐	GRPC_DL_MAIN_USER	XUBNAME	CHAR	12	0	User Replaced by Delegate	*
35	TIMESTAMPDLR	☐	GRPC_DL_TIME_STAMP	SCMG_TIMESTAMP	DEC	15	0	Time Stamp Denoting When Delegate Performs Action
36	.INCLU-DLP	☐				0	0	Delegation Information
37	MAIN_USERDLP	☐	GRPC_DL_MAIN_USER	XUBNAME	CHAR	12	0	User Replaced by Delegate	*
38	TIMESTAMPDLP	☐	GRPC_DL_TIME_STAMP	SCMG_TIMESTAMP	DEC	15	0	Time Stamp Denoting When Delegate Performs Action
39	WORKFLOW_TYPE	☐	GRPC_ISSUE_WF_TYPE	GRPC_ISSUE_WF_TYPE	CHAR	1	0	Issue Workflow Type
40	CF_STATUS	☐	GRPC_CF_STATUS	GRPC_CF_STATUS	CHAR	1	0	Carry Forward Status
41	SERIOUS	☐	GRPC_ATTRVALUE	GRPC_ATTRVALUE	CHAR	10	0	Attribute Value
42	PRIORITY_RA	☐	GRPC_ISSUE_PRIORITY	GRPC_ISSUE_PRIORITY	CHAR	1	0	Issue Priority
43	IMPACT	☐	GRPC_ATTRVALUE	GRPC_ATTRVALUE	CHAR	10	0	Attribute Value
44	.INCLUDE	☐				0	0
45	DUE_DATE	☐	DATS	DATS	DATS	8	0	Field of type DATS

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	GRPC_S_ATTRIBUTE_IS	CASE_GUID	SCMG_T_CASE	CASE_GUID	KEY	1	1
2	GRPC_S_ATTRIBUTE_IS	CASE_TYPE	SCMGCASETYPE	CASE_TYPE	KEY
3	GRPC_S_ATTRIBUTE_IS	CATEGORY	SCMGATTR_CATEGO	CATEGORY	KEY
4	GRPC_S_ATTRIBUTE_IS	CHANGED_BY	USR02	BNAME
5	GRPC_S_ATTRIBUTE_IS	CLOSED_BY	USR02	BNAME
6	GRPC_S_ATTRIBUTE_IS	CREATED_BY	USR02	BNAME
7	GRPC_S_ATTRIBUTE_IS	OTYPE	T778O	OTYPE
8	GRPC_S_ATTRIBUTE_IS	PLVAR	T778P	PLVAR
9	GRPC_S_ATTRIBUTE_IS	PROCESSOR	USR02	BNAME
10	GRPC_S_ATTRIBUTE_IS	RESPONSIBLE	USR02	BNAME

History

Last changed by/on	SAP	20141106
SAP Release Created in	250
