SAP ABAP Table GRFN_S_UI_AM_SCH_APP_LOG (AM Scheduler Application Log Data)

Hierarchy

☛ GRCFND_A (Software Component) GRC Foundation ABAP
   ⤷ GRC (Application Component) Governance, Risk and Compliance
     ⤷ GRFN_AUTO_MONITOR (Package) GRC Automated Monitoring Framework

Basic Data

Table Category	INTTAB	Structure

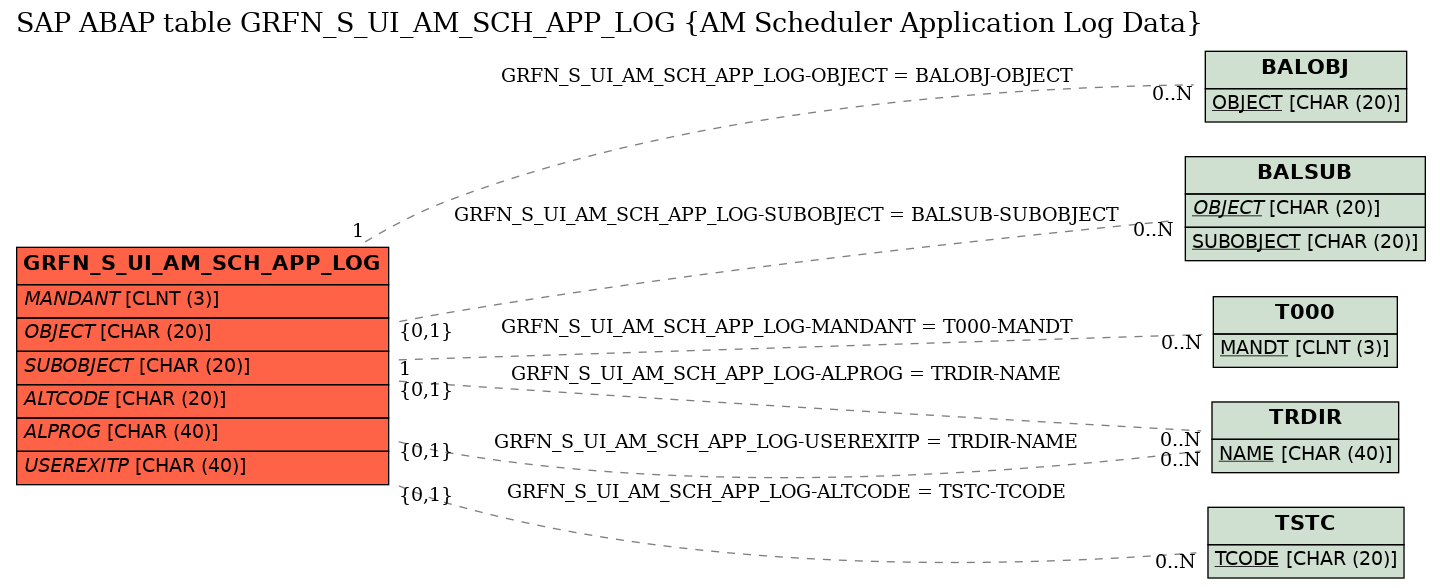

Structure	GRFN_S_UI_AM_SCH_APP_LOG	Table Relationship Diagram
Short Description	AM Scheduler Application Log Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Application log: log header
2	MANDANT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
3	LOGNUMBER	☐	BALOGNR	BALOGNR	CHAR	20	0	Application log: log number	*
4	OBJECT	☐	BALOBJ_D	BALOBJ	CHAR	20	0	Application log: Object name (Application code)	BALOBJ
5	SUBOBJECT	☐	BALSUBOBJ	BALSUBOBJ	CHAR	20	0	Application Log: Subobject	BALSUB
6	EXTNUMBER	☐	BALNREXT	BALNREXT	CHAR	100	0	Application Log: External ID
7	ALDATE	☐	BALDATE	DATUM	DATS	8	0	Application log: date
8	ALTIME	☐	BALTIME	UZEIT	TIMS	6	0	Application log: time
9	ALUSER	☐	BALUSER	XUBNAME	CHAR	12	0	Application log: user name	*
10	ALTCODE	☐	BALTCODE	TCODE	CHAR	20	0	Application Log: Transaction code	TSTC
11	ALPROG	☐	BALPROG	PROGNAME	CHAR	40	0	Application log: Program name	TRDIR
12	ALMODE	☐	BALMODE	BALMODE	CHAR	1	0	Application Log: Operating mode (Batch,Batch Input,Dialog)
13	ALTEXT	☐	BALTEXT	CHAR28	CHAR	28	0	Application log: Standard text
14	USEREXITP	☐	BALUEP	PROGNAME	CHAR	40	0	Application Log: Callback: Program name	TRDIR
15	USEREXITF	☐	BALUEF	CHAR30	CHAR	30	0	Application Log: Callback: Routine name
16	PROBCLASS	☐	BALPROBCLH	BALPROBCL	CHAR	1	0	Application Log: Log problem class
17	ALDATE_DEL	☐	ALDATE_DEL	DATUM	DATS	8	0	Application log: expiry date
18	DEL_BEFORE	☐	DEL_BEFORE	BALDELBEF	CHAR	1	0	Application Log: Keep log until expiry
19	ALSTATE	☐	ALSTATE	ALSTATE	CHAR	1	0	Application log: processing status
20	USEREXITT	☐	BALUET	BALUET	CHAR	1	0	Application Log: Callback: Type (Ext. Perform, FM, etc.)
21	ALCHDATE	☐	BALCHDATE	DATUM	DATS	8	0	Application Log: Date of last change
22	ALCHTIME	☐	BALCHTIME	UZEIT	TIMS	6	0	Application Log: Time of last change
23	ALCHUSER	☐	BALCHUSER	XUBNAME	CHAR	12	0	Application Log: User that changed the log	*
24	LOG_HANDLE	☐	BALLOGHNDL	SYSUUID_22	CHAR	22	0	Application Log: Log Handle
25	TABNAME	☐	BALTABNAME	AS4TAB	CHAR	30	0	Application Log: Context: DDIC structure name	*
26	MSG_CNT_AL	☐	BALDBCNTAL		NUMC	6	0	Application Log: Total Number of Messages
27	MSG_CNT_A	☐	BALDBCNTA		NUMC	6	0	Application Log: Number of A Messages
28	MSG_CNT_E	☐	BALDBCNTE		NUMC	6	0	Application Log: Number of E Messages
29	MSG_CNT_W	☐	BALDBCNTW		NUMC	6	0	Application Log: Number of W Messages
30	MSG_CNT_I	☐	BALDBCNTI		NUMC	6	0	Application Log: Number of I Messages
31	MSG_CNT_S	☐	BALDBCNTS		NUMC	6	0	Application Log: Number of S Messages
32	LAST_MSGNR	☐	BAL_LASTNR	BALMNR	NUMC	6	0	ApplicationLog: Last message serial number assigned	*
33	TIM_STMP	☐	BALCONTSMP	TZNTSTMPS	DEC	15	0	Application log: Time basis for context nametab
34	DB_VERSION	☐	BALDBVER	BALDBVER	CHAR	4	0	Application Log: Database repository format
35	MSG_CNT_P1	☐	BALDBCNTP1		NUMC	6	0	Application Log: Number of messages with problem class 1
36	MSG_CNT_P2	☐	BALDBCNTP2		NUMC	6	0	Application Log: Number of messages with problem class 2
37	MSG_CNT_P3	☐	BALDBCNTP3		NUMC	6	0	Application Log: Number of messages with problem class 3
38	MSG_CNT_P4	☐	BALDBCNTP4		NUMC	6	0	Application Log: Number of messages with problem class 4
39	CLIENT_CRE	☐	BALCLIENTC	MANDT	CLNT	3	0	Application Log: Client in which a log was created	*
40	CHAR_SIZE	☐	BALCHARSIZ	NUMC1	NUMC	1	0	Application Log: Size of a Character in Bytes
41	_DATAAGING	☐	DATA_TEMPERATURE	DATA_TEMPERATURE	DATS	8	0	Data Filter Value for Data Aging
42	LOG_TYPE_ICON	☐	ICONNAME	ICONNAME	CHAR	30	0	Name of an Icon

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	GRFN_S_UI_AM_SCH_APP_LOG	ALPROG	TRDIR	NAME	REF	C	CN
2	GRFN_S_UI_AM_SCH_APP_LOG	ALTCODE	TSTC	TCODE	REF	C	CN
3	GRFN_S_UI_AM_SCH_APP_LOG	MANDANT	T000	MANDT	KEY	1	CN
4	GRFN_S_UI_AM_SCH_APP_LOG	OBJECT	BALOBJ	OBJECT	KEY	1	CN
5	GRFN_S_UI_AM_SCH_APP_LOG	SUBOBJECT	BALSUB	SUBOBJECT	REF	C	CN
6	GRFN_S_UI_AM_SCH_APP_LOG	USEREXITP	TRDIR	NAME	REF	C	CN

History

Last changed by/on	SAP	20141106
SAP Release Created in	V1000
